Pinpoint Test Q: The Anti-Lock Brake System (ABS) Warning Indicator Is Never On

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

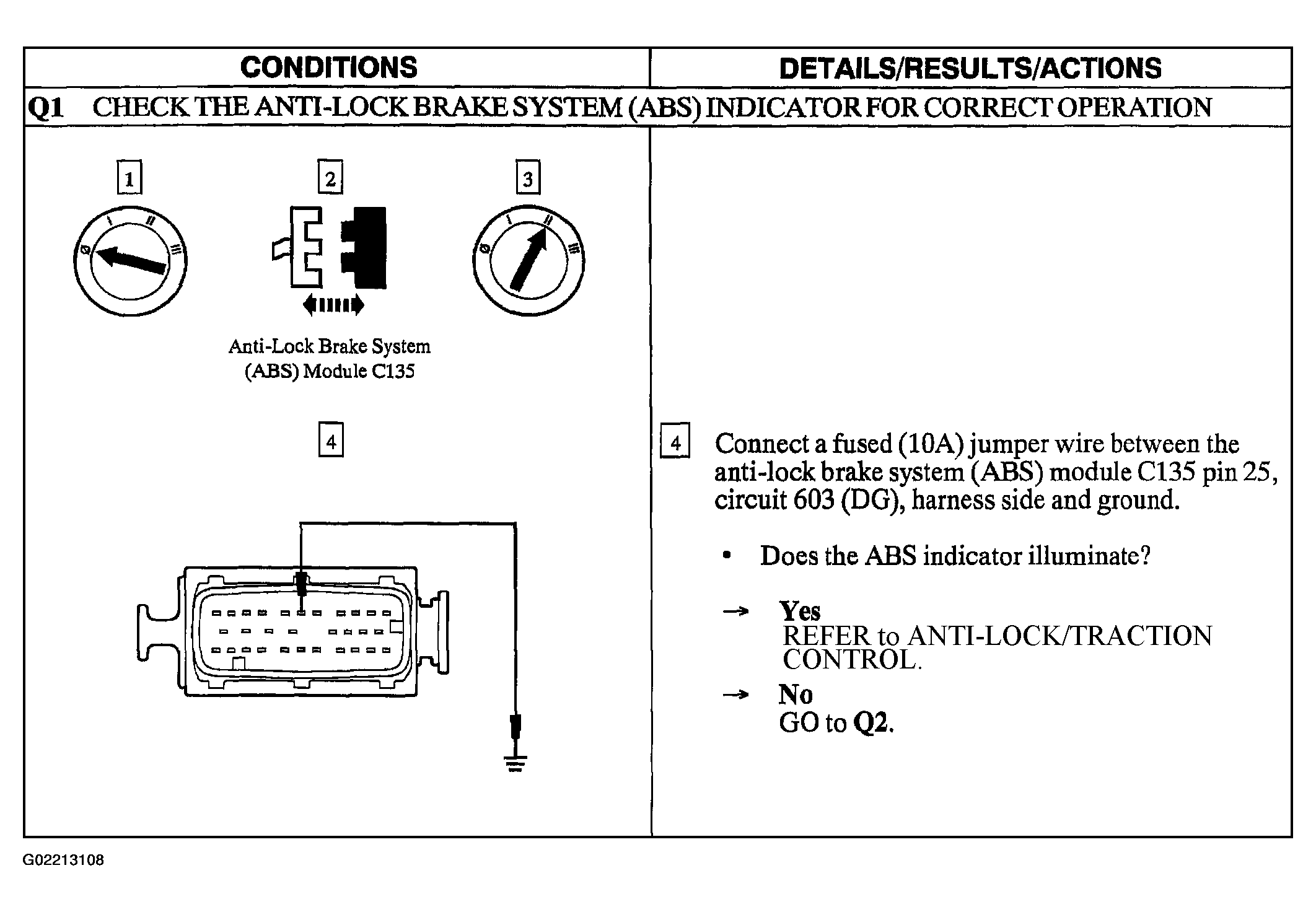

Fig 1: Pinpoint Test Q: The Anti-Lock Brake System (ABS) Warning Indicator Is Never On (Step Q1)

Courtesy of FORD MOTOR CO.

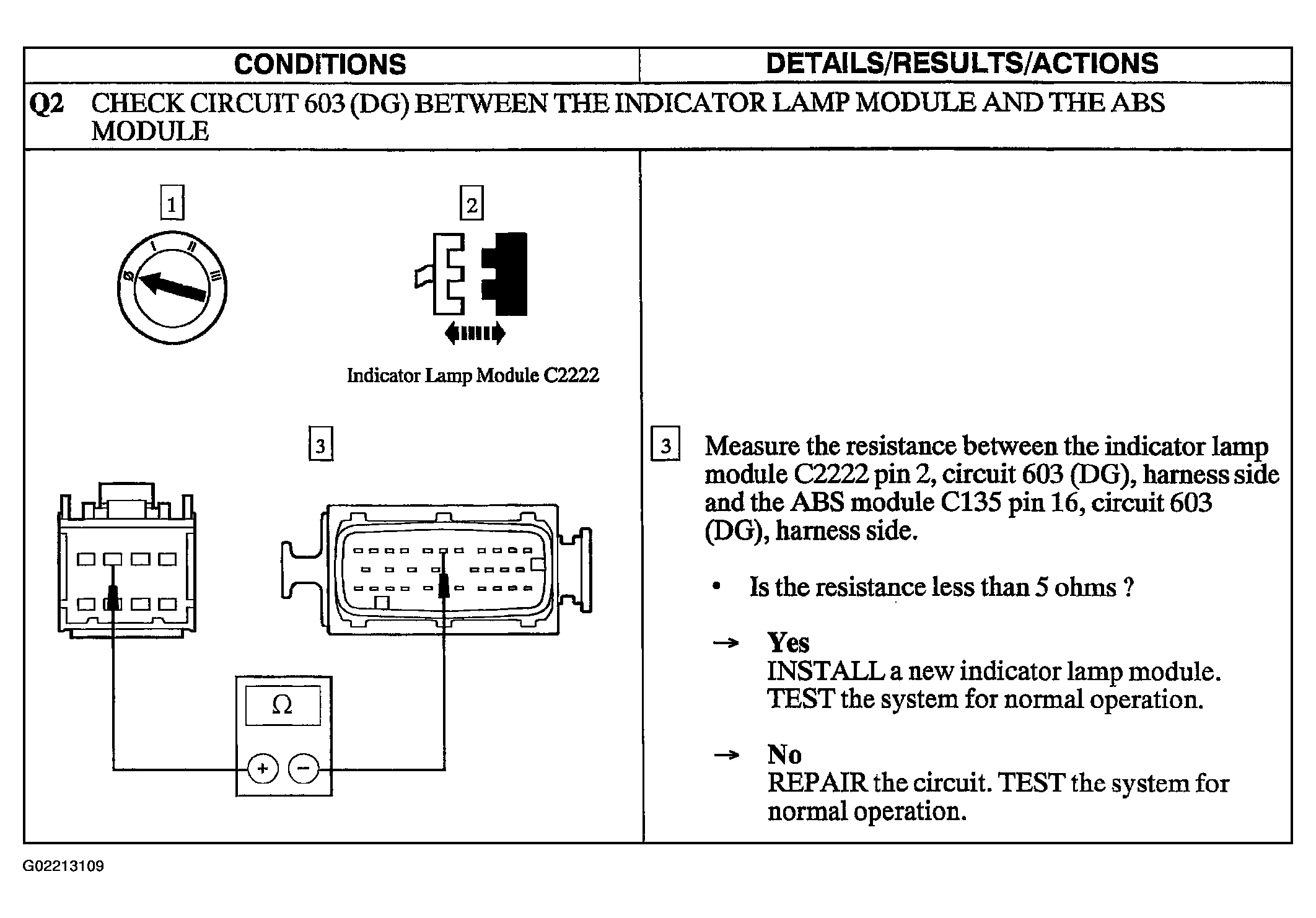

Fig 2: Pinpoint Test Q: The Anti-Lock Brake System (ABS) Warning Indicator Is Never On (StepQ2)

Courtesy of FORD MOTOR CO.
