Pinpoint Test E: The Speedometer/Odometer Is Inoperative

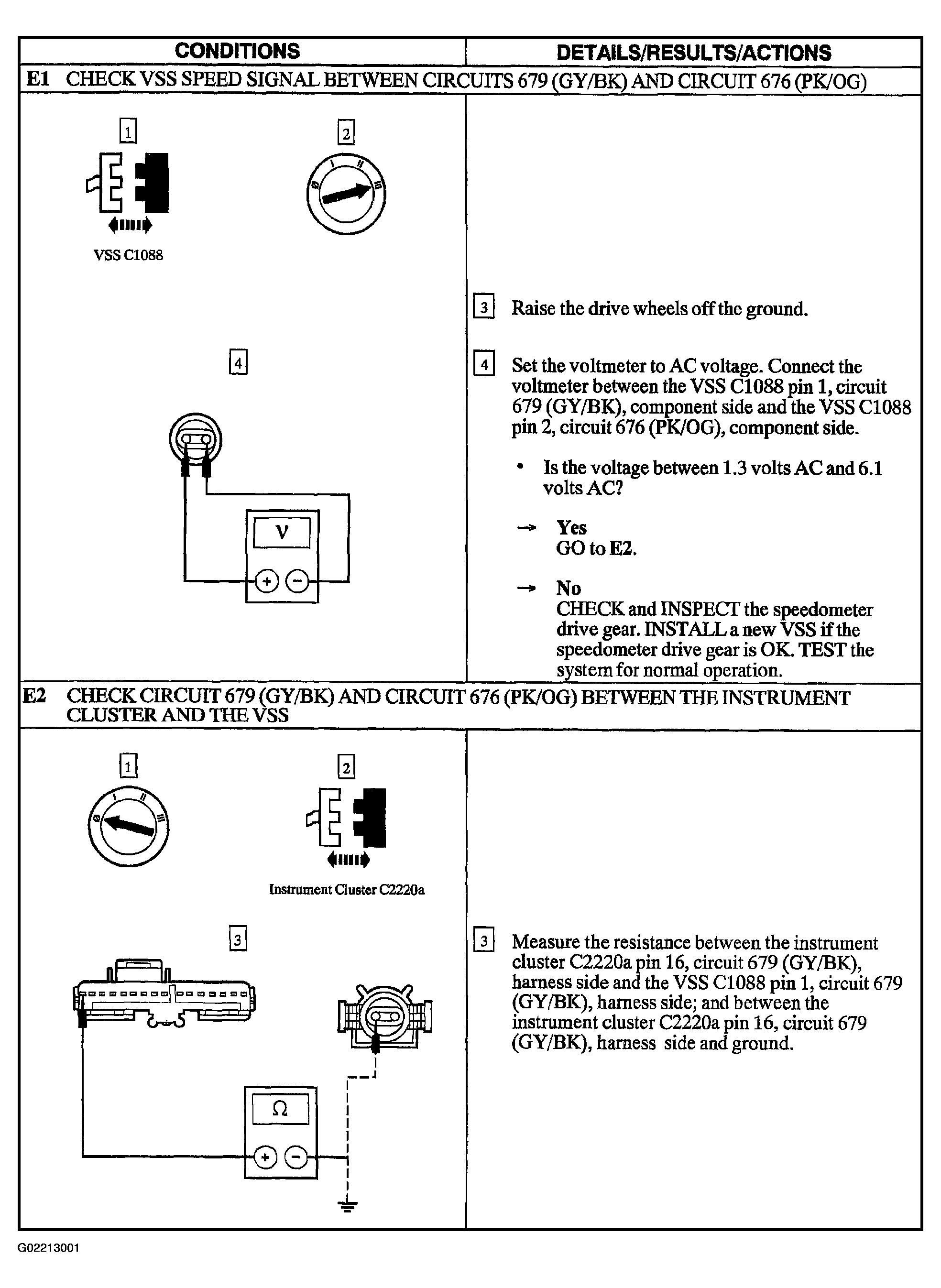

Fig 1: Pinpoint Test E: The Speedometer/Odometer Is Inoperative (Steps E1-E2)
G02213001Courtesy of FORD MOTOR CO.

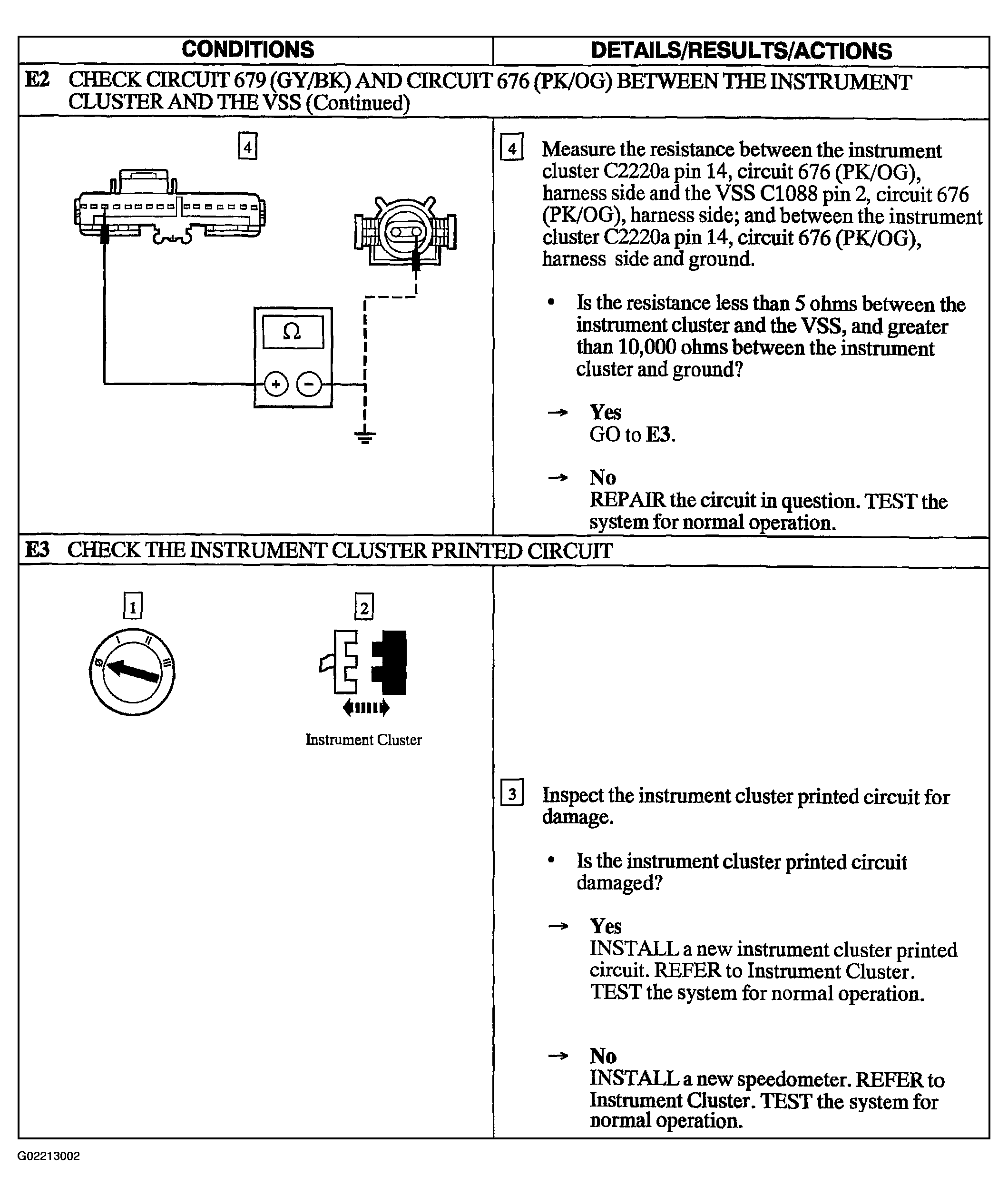

Fig 2: Pinpoint Test E: The Speedometer/Odometer Is Inoperative (Steps E2 Cont.-E3)
G02213002Courtesy of FORD MOTOR CO.
