Pinpoint Test K: The Air Suspension Indicator Is Never/Always On

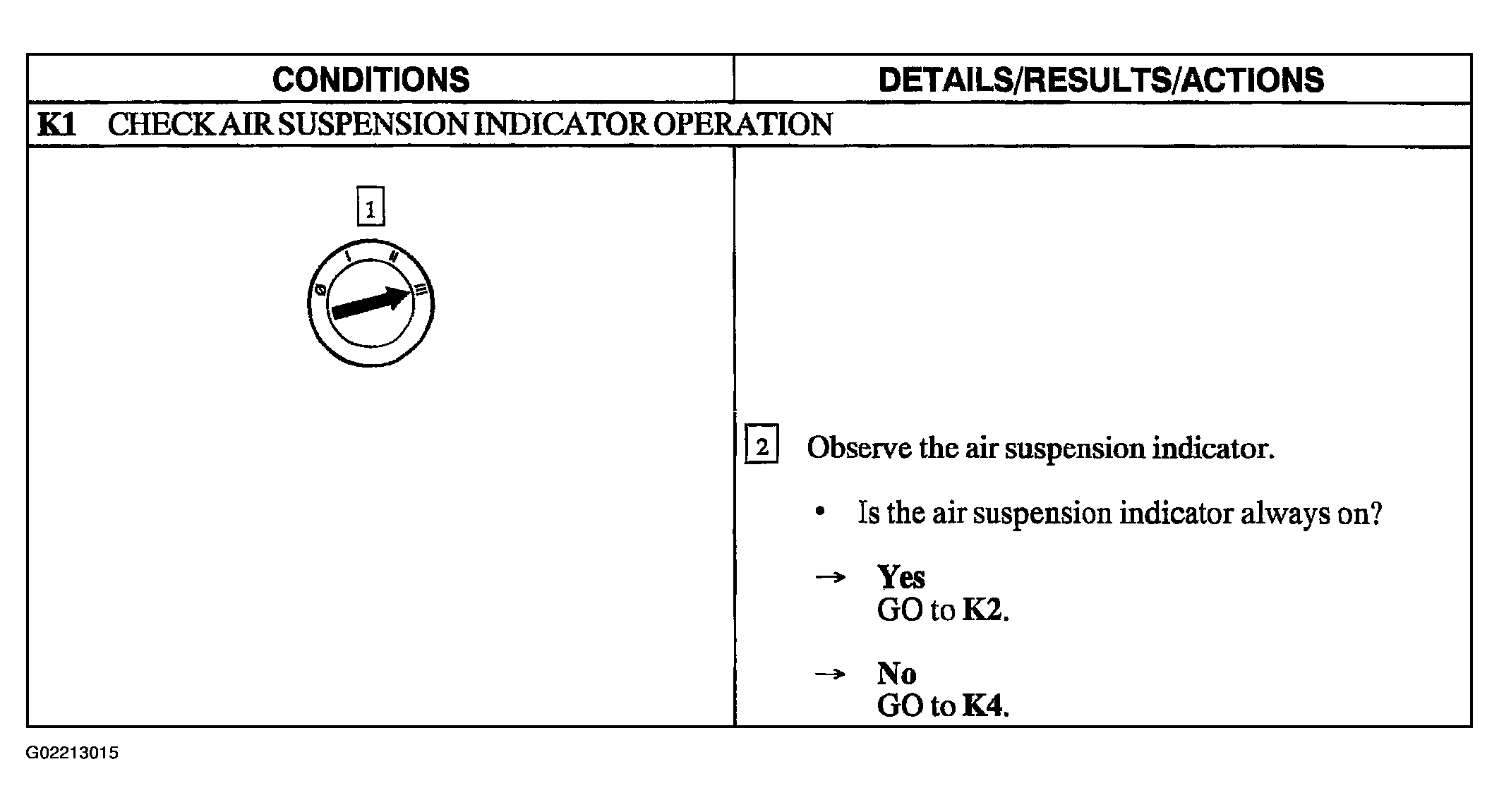

Fig 1: Pinpoint Test K: The Air Suspension Indicator Is Never/Always On (Step K1)
G02213015Courtesy of FORD MOTOR CO.

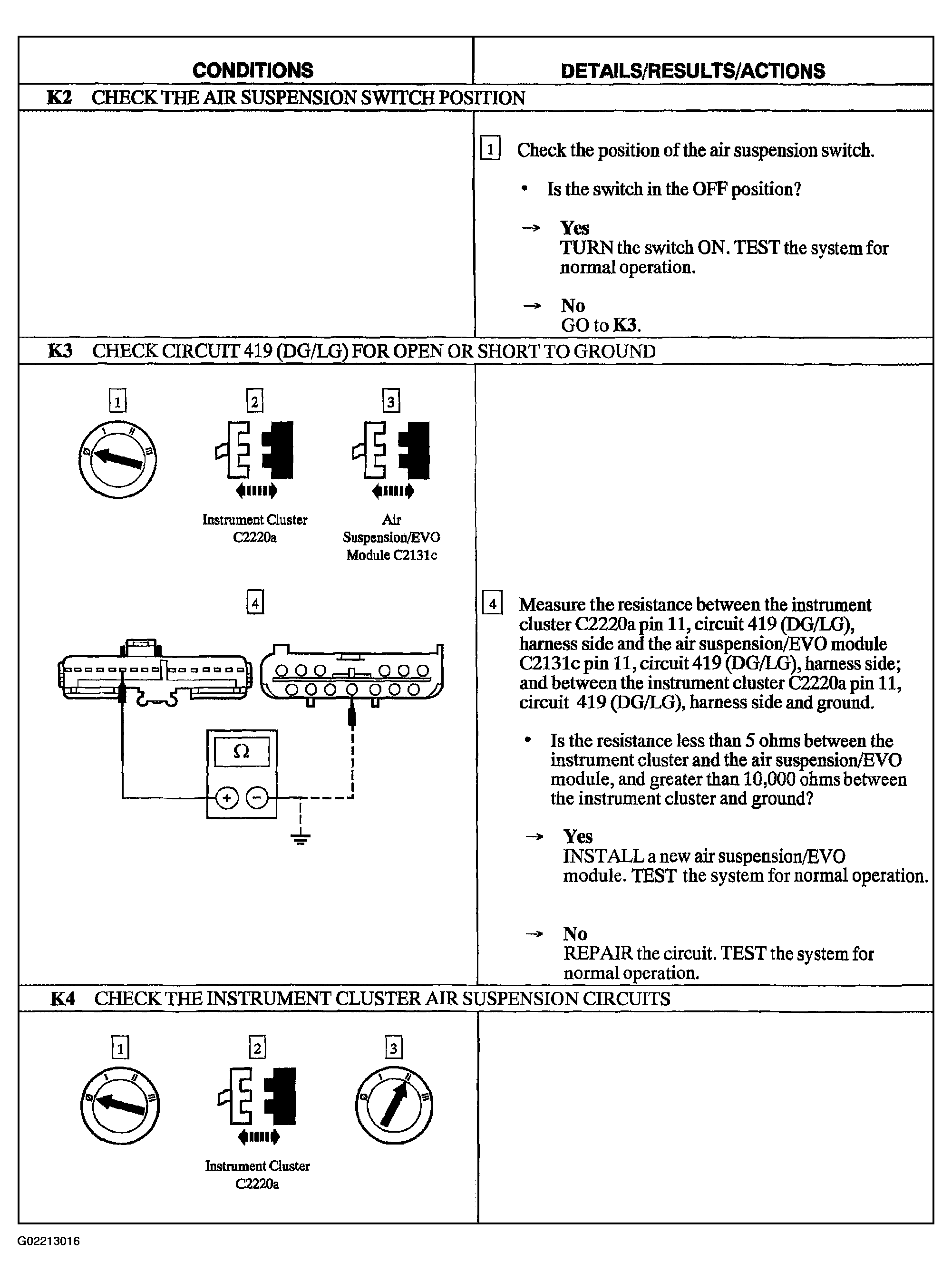

Fig 2: Pinpoint Test K: The Air Suspension Indicator Is Never/Always On (Steps K2-K4)
G02213016Courtesy of FORD MOTOR CO.

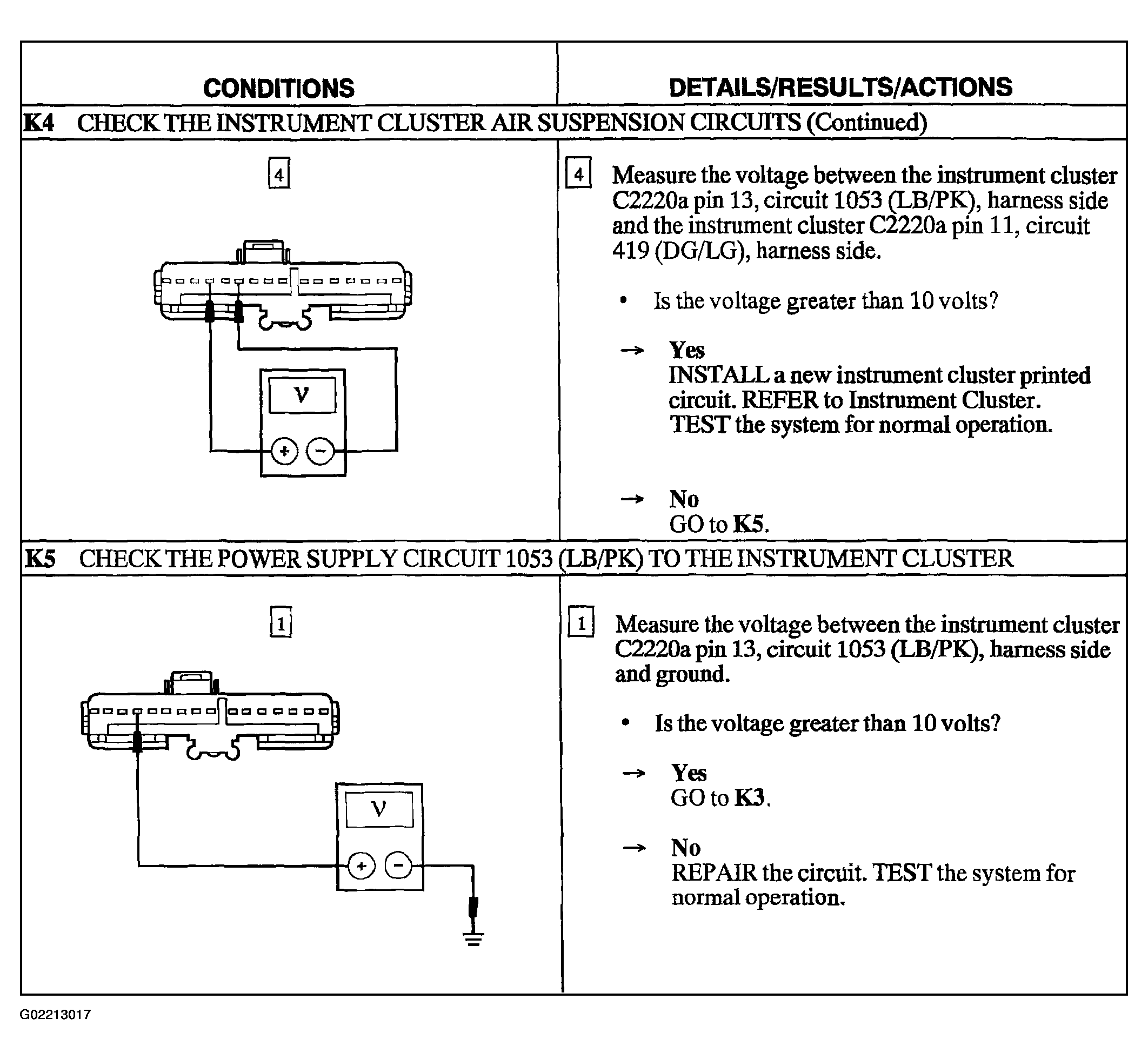

Fig 3: Pinpoint Test K: The Air Suspension Indicator Is Never/Always On (Steps K4 Cont.-K5)
G02213017Courtesy of FORD MOTOR CO.
