Warning Indicator Bulb: Notes

  1. Remove the instrument cluster. Refer to INSTRUMENT CLUSTER .
  2. Remove the warning indicator bulb.

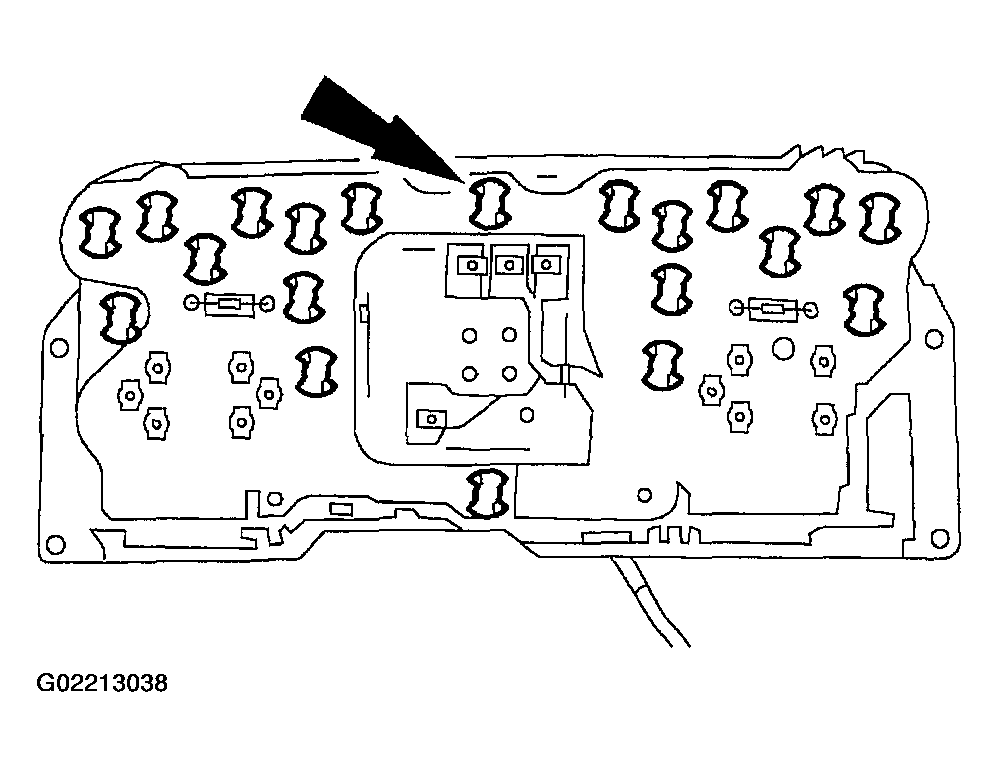

    Fig 1: Identifying Warning Indicator Bulb
    G02213038Courtesy of FORD MOTOR CO.
