Cluster Lens

  1. Remove the instrument cluster. Refer to INSTRUMENT CLUSTER .
  2. Remove the cluster lens.
    1. Remove the screws.
    2. Remove the cluster lens.

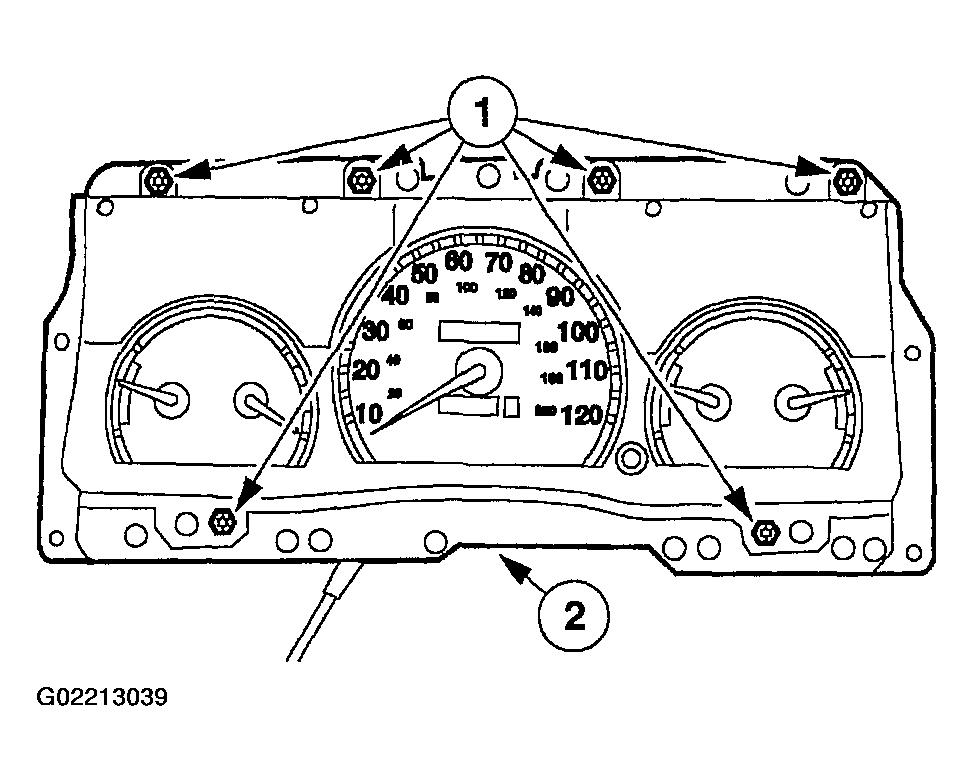

      Fig 1: Identifying Cluster Lens & Screws
      G02213039Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
