Instrument Cluster: Disassembly

Remove the instrument cluster. Refer to INSTRUMENT CLUSTER .
Remove the instrument cluster lens.
- Remove the six screws.

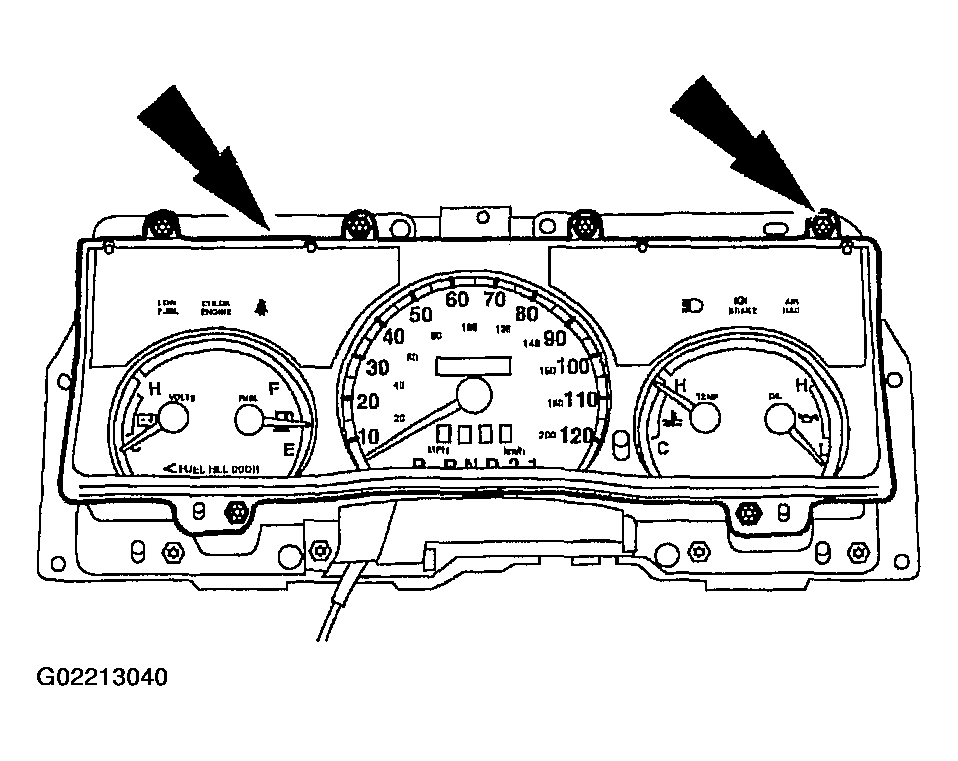

  Fig 1: Identifying Instrument Cluster Lens Screws
  Courtesy of FORD MOTOR CO.
Remove the instrument cluster mask.
- Remove the four screws.

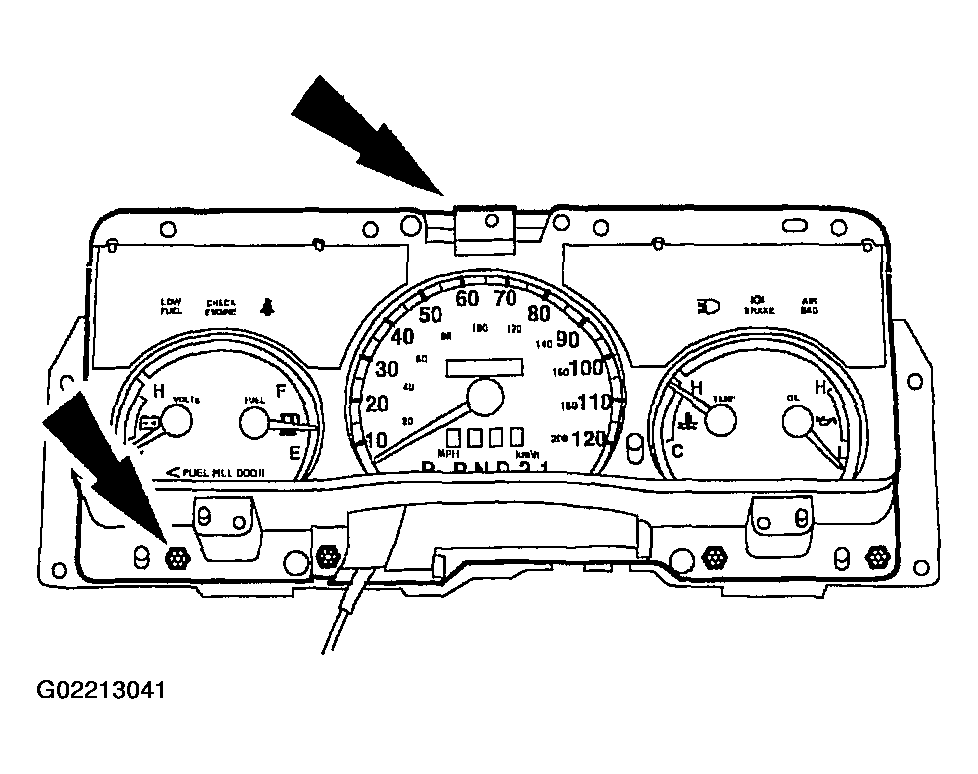

  Fig 2: Identifying Instrument Cluster Mask Screws
  Courtesy of FORD MOTOR CO.

CAUTION: Handle gauges and components with care to avoid possible damage.

NOTE: Make no attempt to adjust the needle.

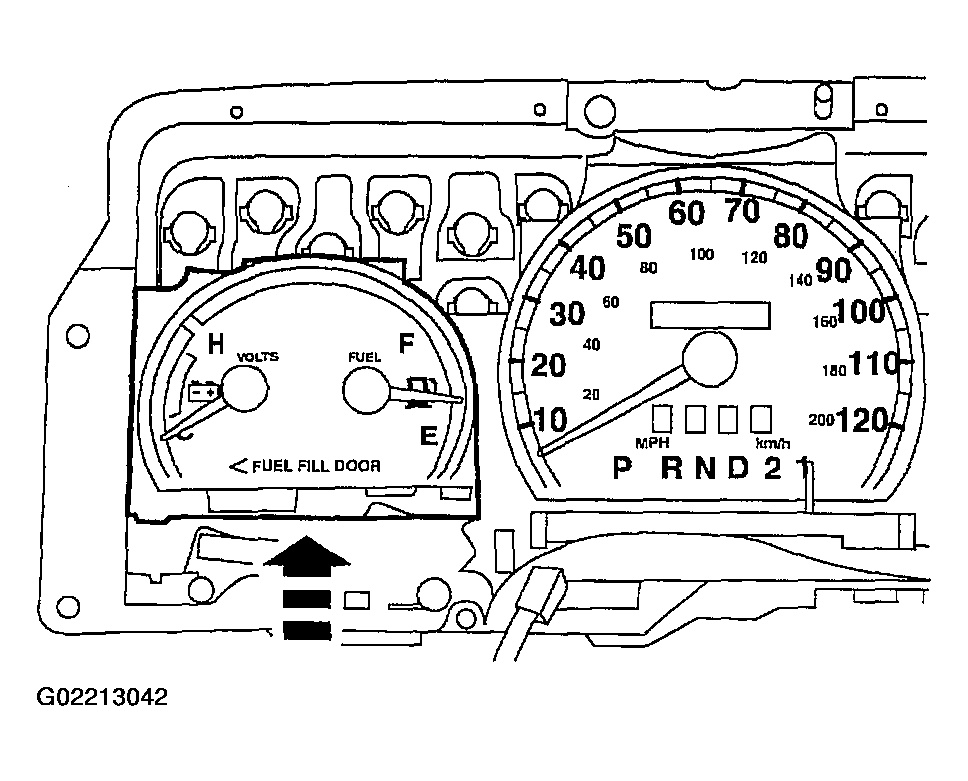

Fig 3: Identifying Fuel/Volt Gauge

Courtesy of FORD MOTOR CO.

Remove the fuel/volt gauge.
Remove the engine coolant temperature gauge (10883).

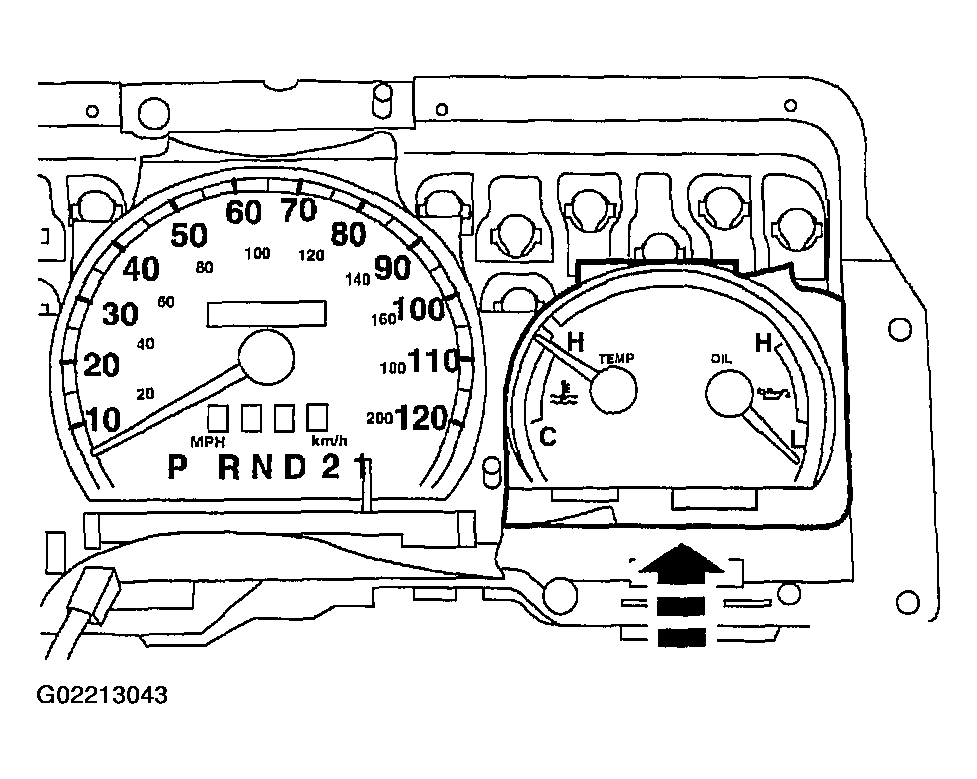

Fig 4: Identifying Engine Coolant Temperature Gauge
Courtesy of FORD MOTOR CO.
Remove the transmission range indicator (7A110).
- Push inward on the locking tabs.

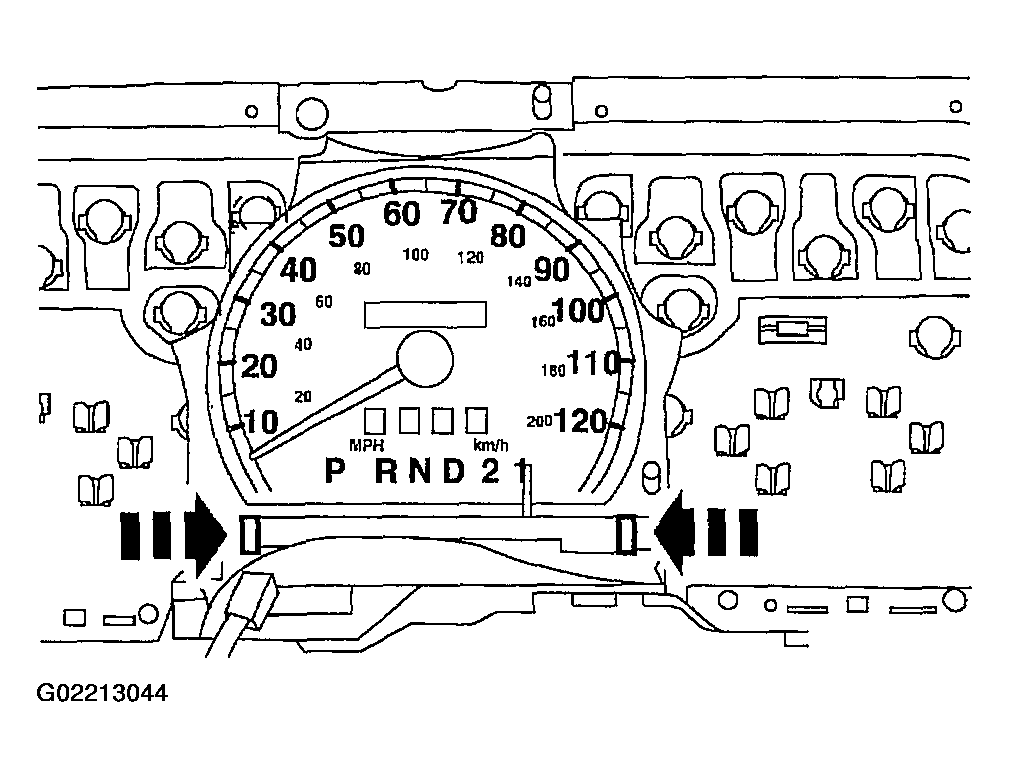

  Fig 5: Identifying Transmission Range Indicator Locking Tabs
  Courtesy of FORD MOTOR CO.
Remove the speedometer (17255).

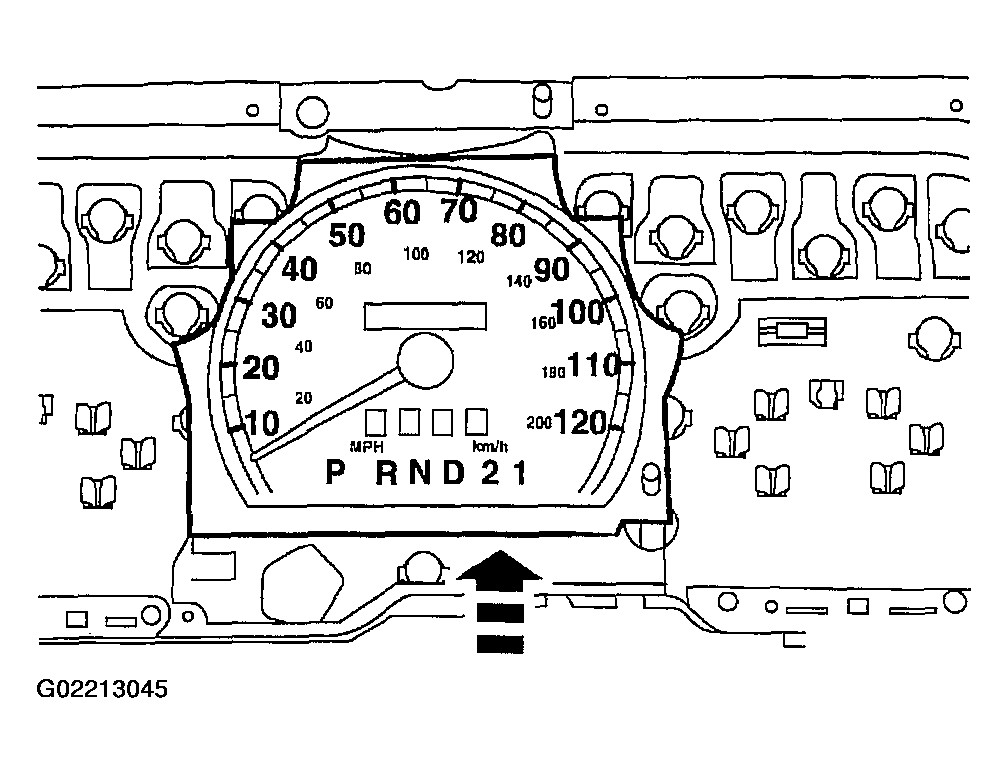

Fig 6: Identifying Speedometer
Courtesy of FORD MOTOR CO.
Remove all the miniature bulbs.
Remove the fuel indicator module.
1. Release the locking tab.
2. Remove the fuel indicator module.

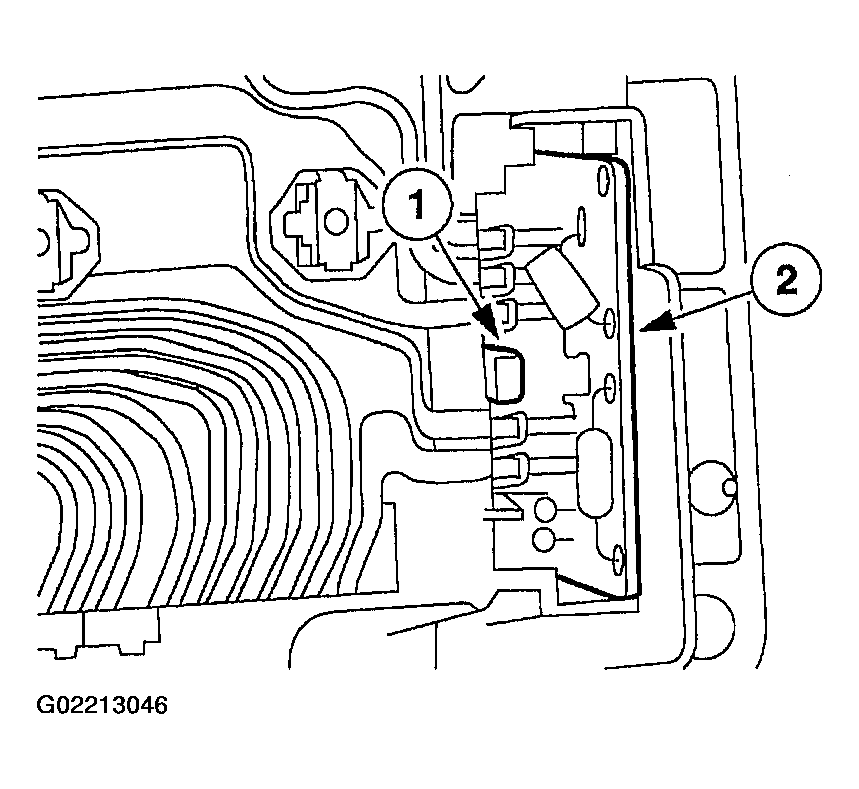

  Fig 7: Identifying Locking Tab & Fuel Indicator Module
  Courtesy of FORD MOTOR CO.

CAUTION: When removing the gauge contact clips, be careful not to damage the instrument cluster printed circuit (10K843).

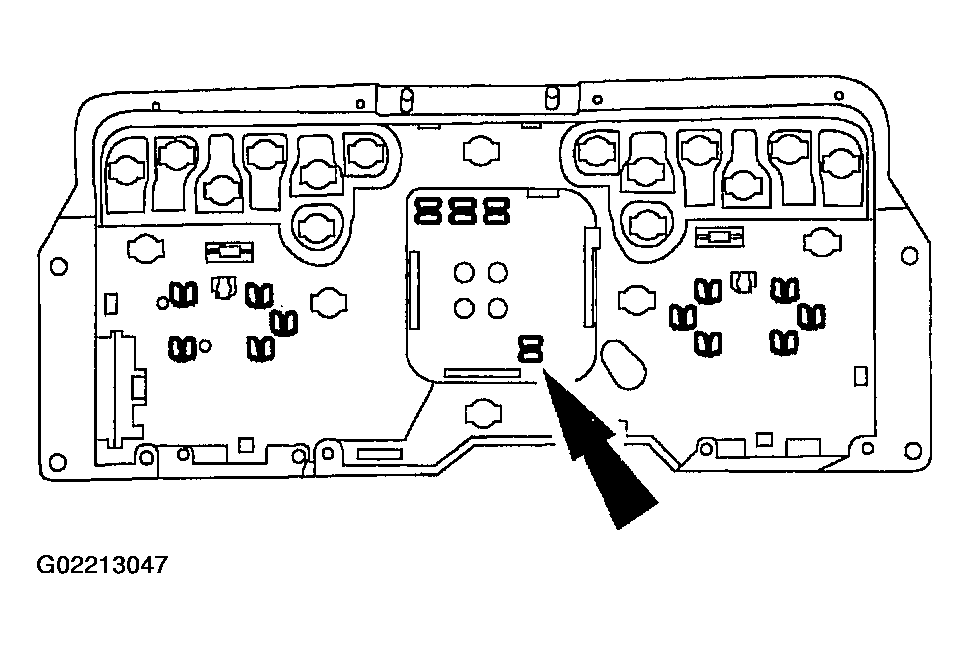

Fig 8: Identifying Gauge Contact Clips

Courtesy of FORD MOTOR CO.

Remove all the gauge contact clips from the rear of the instrument cluster by compressing the clip ends together and pushing the clips through the back of the instrument cluster back plate (18848). Discard the old clips.
Carefully remove the instrument cluster printed circuit.
