Pinpoint Test E: DTC B1223 - Fuel Tank Temperature Sensor No. 1 Circuit Open

CAUTION: Use correct probe adapter(s) when making measurements. Failure to use correct probe adapter(s) may damage the connector.

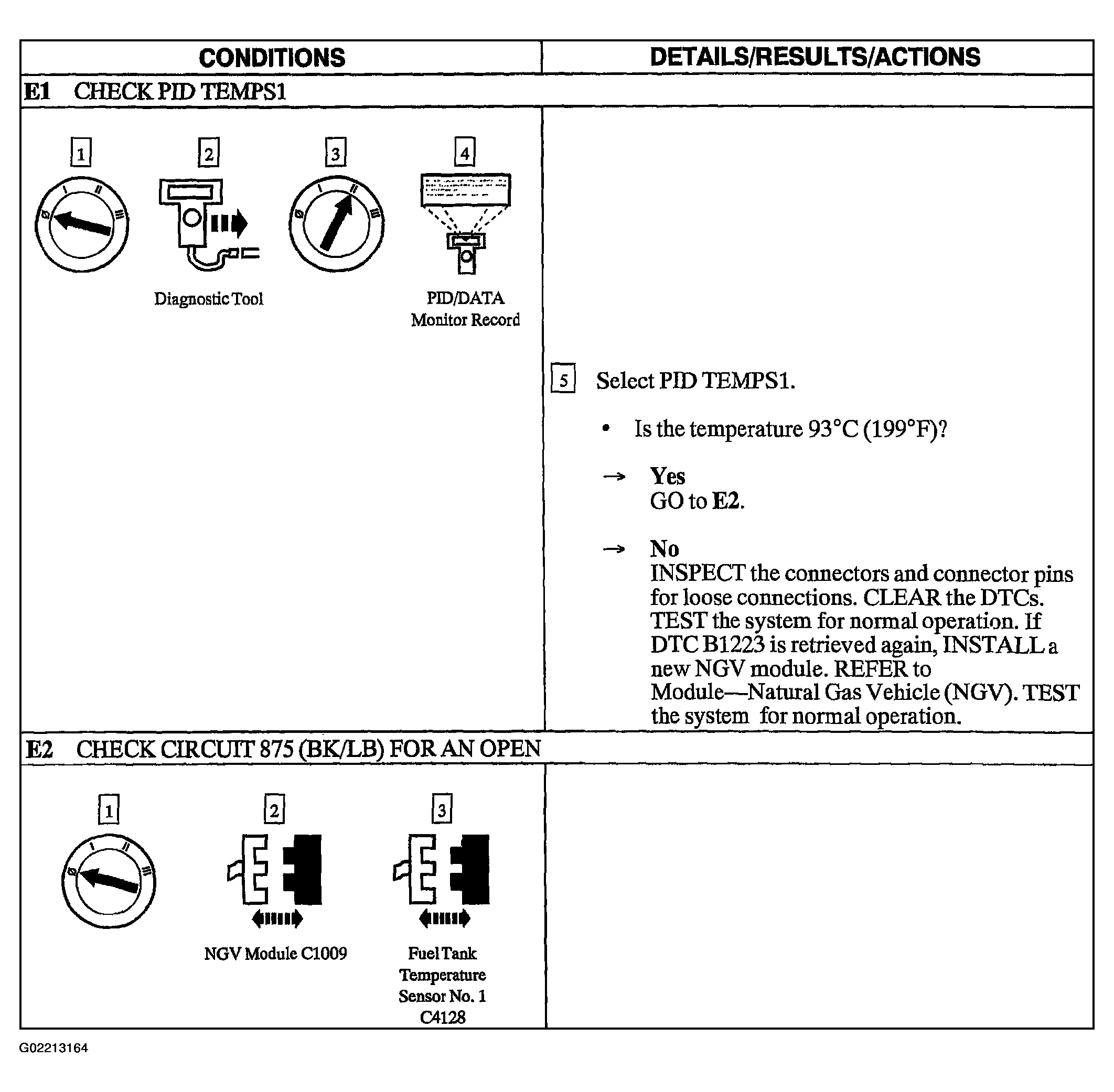

Fig 1: Pinpoint Test E: DTC B1223 - Fuel Tank Temperature Sensor No. 1 Circuit Open (Steps E1-E2)

Courtesy of FORD MOTOR CO.

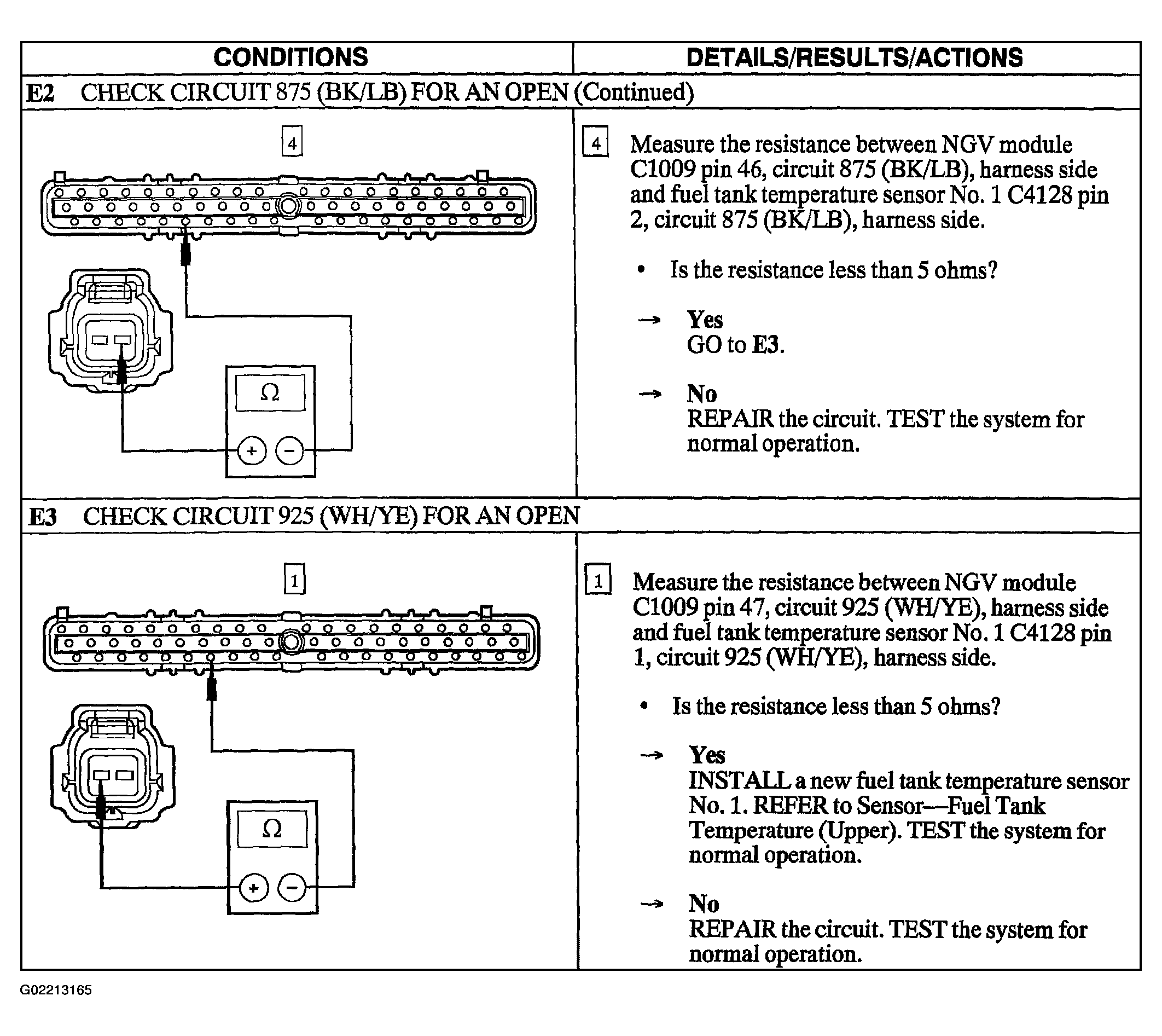

Fig 2: Pinpoint Test E: DTC B1223 - Fuel Tank Temperature Sensor No. 1 Circuit Open (Steps E2 Cont.-E3)

Courtesy of FORD MOTOR CO.
