Pinpoint Test G: DTC B1225 - Fuel Tank Temperature Sensor No. 1 Circuit Short To Ground

CAUTION: Use correct probe adapter(s) when making measurements. Failure to use correct probe adapter(s) may damage the connector.

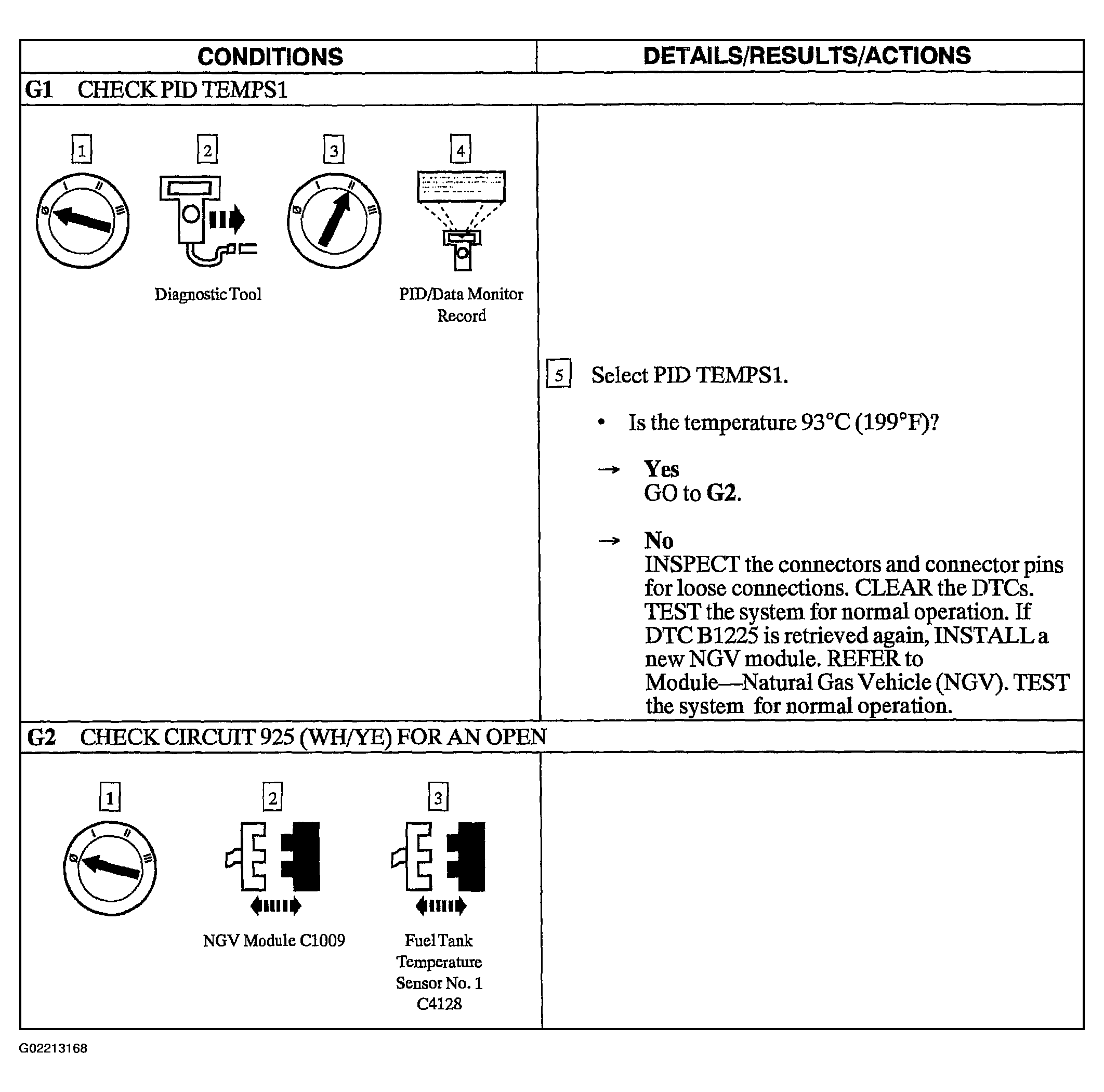

Fig 1: Pinpoint Test G: DTC B1225 - Fuel Tank Temperature Sensor No. 1 Circuit Short To Ground (Steps G1-G2)

Courtesy of FORD MOTOR CO.

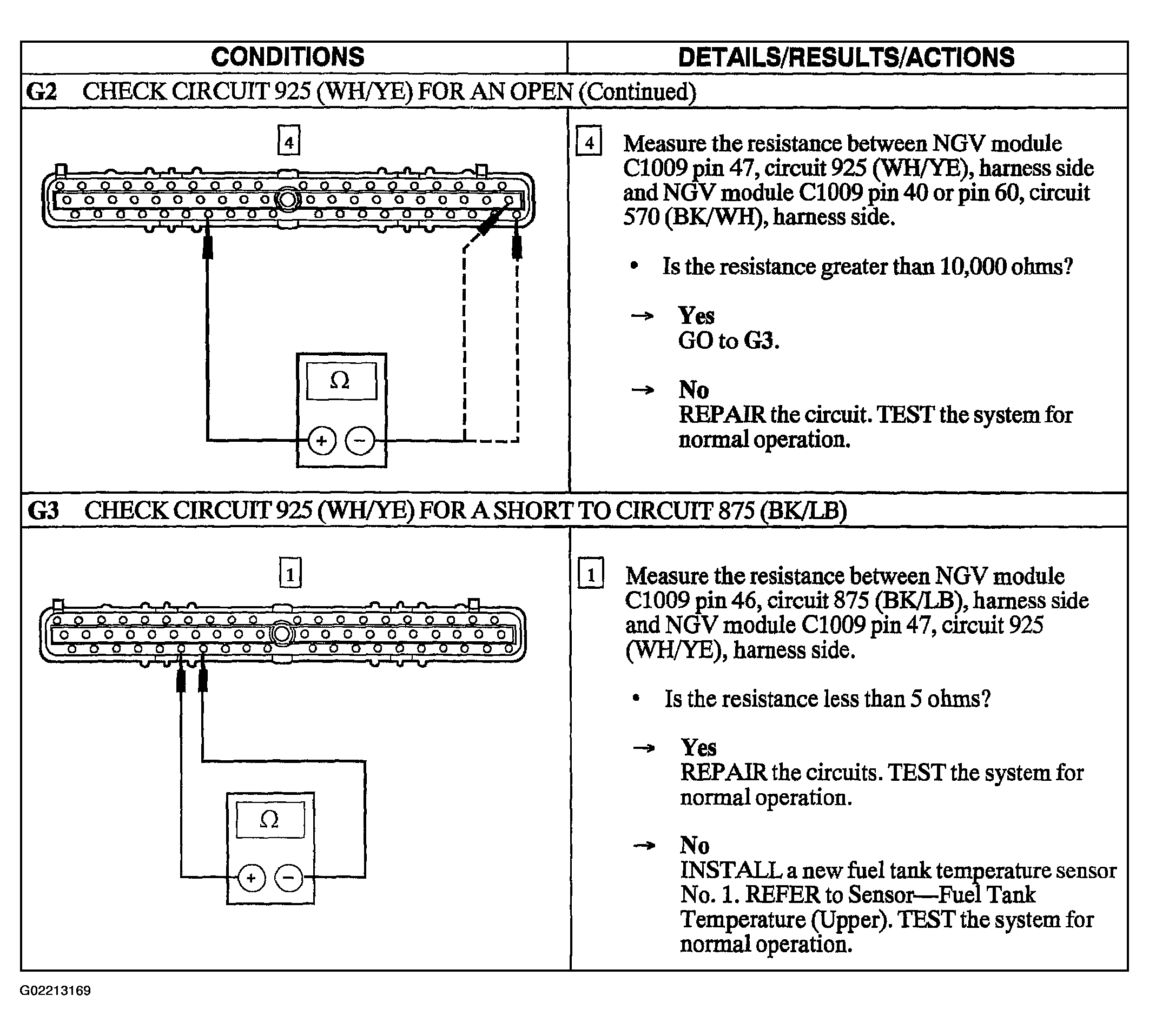

Fig 2: Pinpoint Test G: DTC B1225 - Fuel Tank Temperature Sensor No. 1 Circuit Short To Ground (Steps G2 Cont.-G3)

Courtesy of FORD MOTOR CO.
