Pinpoint Test G: The Control Illumination Is Inoperative

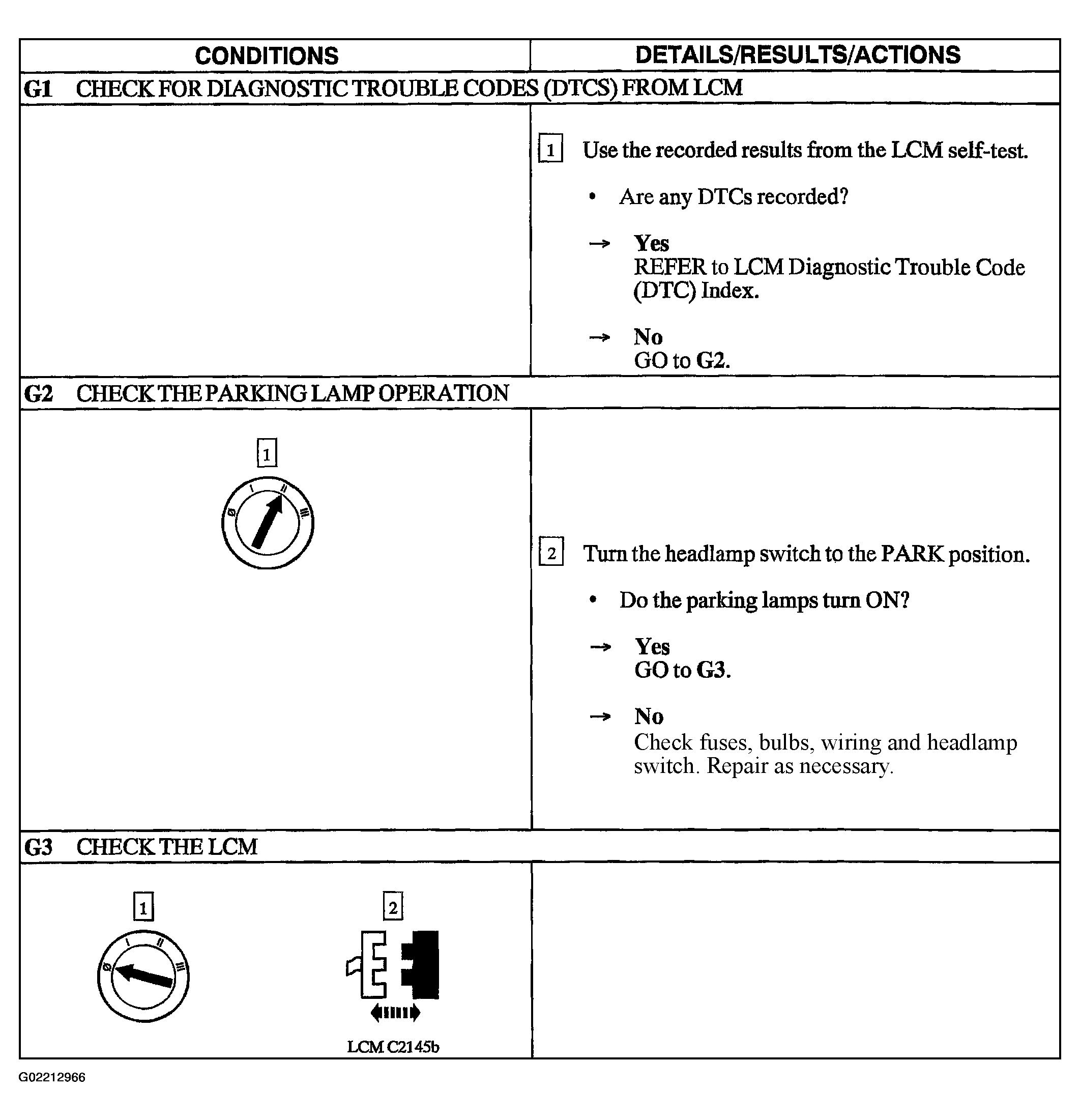

Fig 1: Pinpoint Test G: The Control Illumination Is Inoperative (Steps G1-G3)
G02212966Courtesy of FORD MOTOR CO.

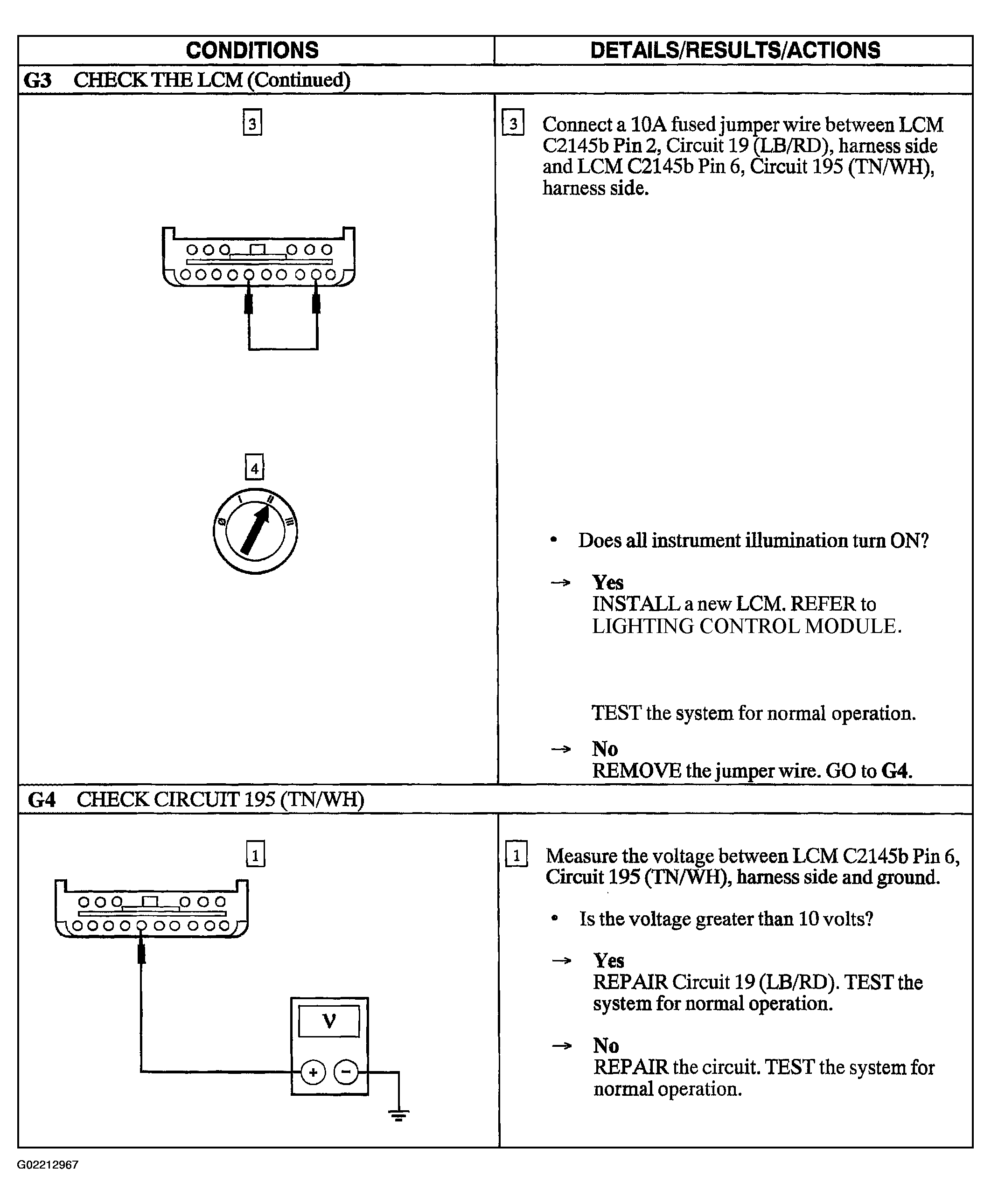

Fig 2: Pinpoint Test G: The Control Illumination Is Inoperative (Steps G3 Cont.-G4)
G02212967Courtesy of FORD MOTOR CO.
