Pinpoint Test L: A Single Illumination Source Is Inoperative
Pinpoint Test L: A Single Illumination Source Is Inoperative

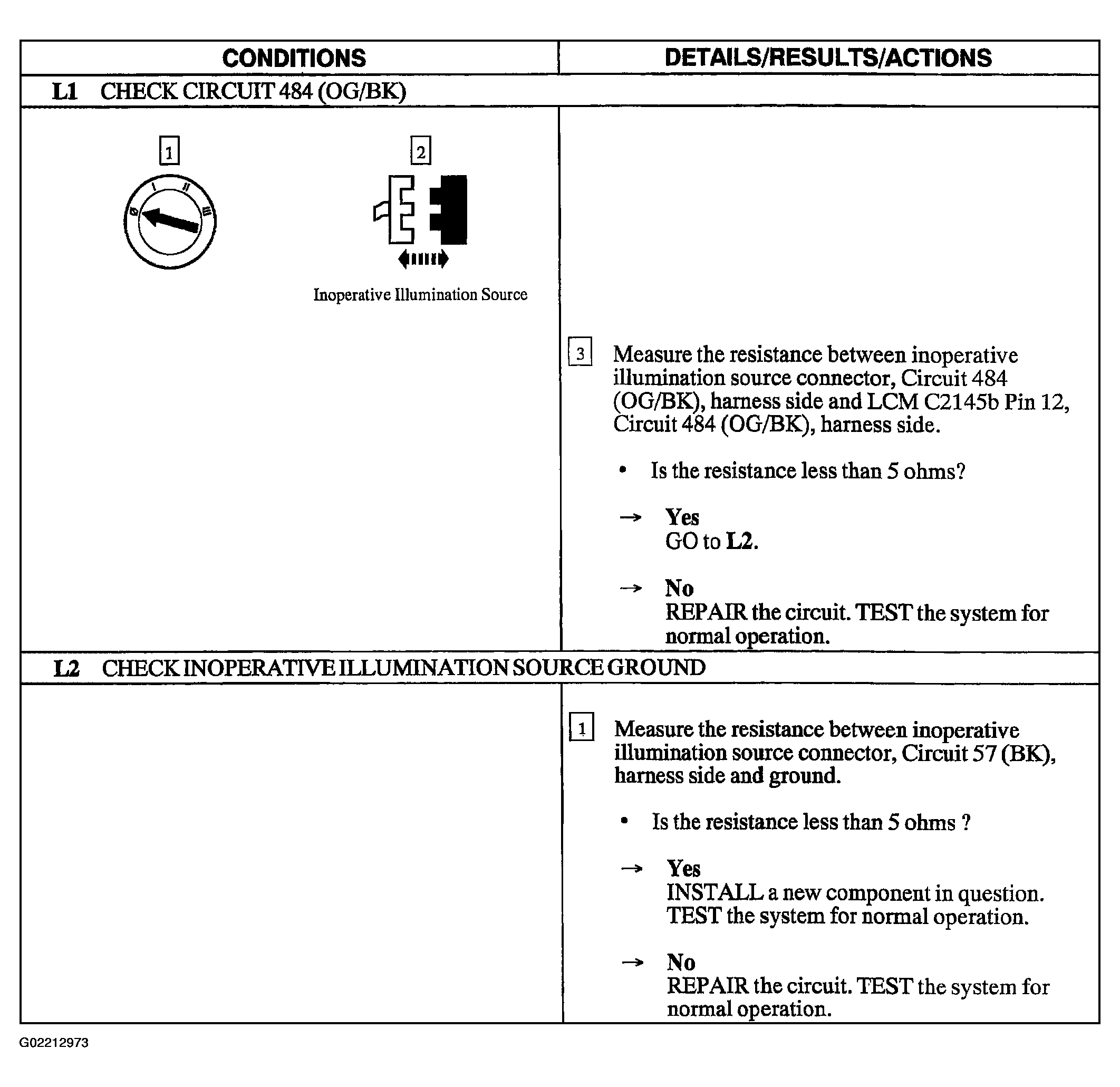

Fig 1: Pinpoint Test L: A Single Illumination Source Is Inoperative (Steps L1-L2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
