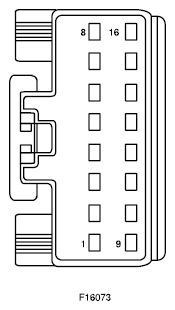

| 1 |
296 (WH/VT) |
Voltage in Run or Accessory (overload protected) |
| 2 |
1034 (BK/WH) |
Front dome lamp, Switches, to module |
| 3 |
158 (BK/PK) |
Key warning switch (11A127), input |
| 4 |
... |
not used |
| 5 |
486 (BN/WH) |
Liftgate unlock relay, control |
| 6 |
... |
not used |
| 7 |
57 (BK) |
Ground |
| 8 |
70 (LB/WH) |
ISO Bus |
| 9 |
640 (RD/YE) |
Voltage supplied in Start and Run (overload protected) |
| 10 |
1033 (RD/YE) |
Headlamp switch, on input |
| 11 |
627 (BK/OG) |
Door ajar indicator, control |
| 12 |
465 (WH/LB) |
Switch illumination, input |
| 13 |
1032 (WH/BK) |
Parking Lamps, Headlamp switch, on input |
| 14 |
340 (RD/LB) |
output |
| 15 |
28 (BK/PK) |
wiper park position signal |
| 16 |
... |
not used |
