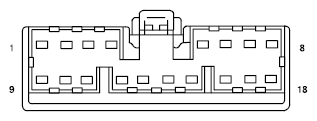

| 1 |
... |
not used |
| 2 |
120 (PK/LG) |
Door unlock, switch, input |
| 3 |
118 (PK/OG) |
Door unlock, output |
| 4 |
676 (PK/OG) |
vehicle Speed Sensor (VSS)... |
| 5 |
163 (RD/OG) |
Driver door unlock relay, switched power |
| 6 |
84 (VT/YE) |
Luggage compartment lid release solenoid (5443252) |
| 7 |
84 (VT/YE) |
Luggage compartment lid release solenoid (5443252) |
| 8 |
117 (PK/BK) |
Door lock, output |
| 9 |
121 (YE/BK) |
Key pad button 5/6, output |
| 10 |
119 (PK/YE) |
Door lock switch, input |
| 11 |
... |
not used |
| 12 |
158 (BK/PK) |
Key warning switch (11A127), input |
| 13 |
26 (WH/VT) |
Luggage compartment lid release switch 1 |
| 14 |
... |
not used |
| 15 |
57 (BK) |
Ground |
| 16 |
... |
not used |
| 17 |
... |
not used |
| 18 |
... |
not used |
