Drive Belt Routing: Continental

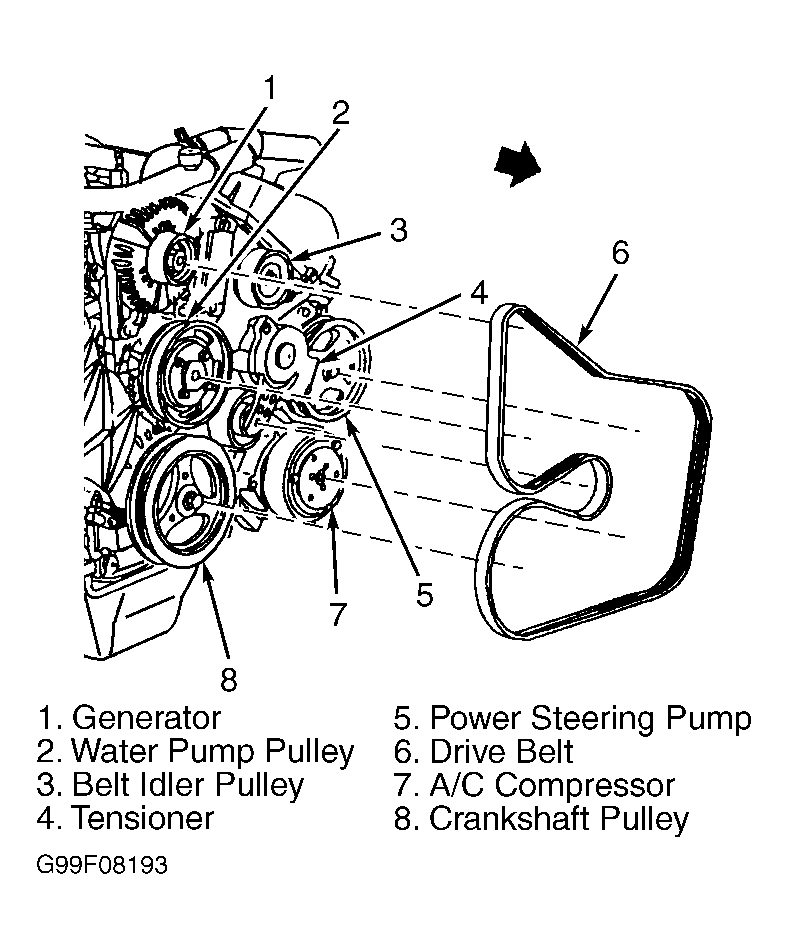

Fig 1: Serpentine Belt Routing (Continental - 4.6L)

G99F08193

Courtesy of FORD MOTOR CO.
