Drive Belt Adjustment

Check belt for fraying. If fraying exists, ensure belt and tensioner are properly aligned. See Fig 1. Automatic tensioners are calibrated to provide correct amount of tension to belt for an accessory drive system. Unless a spring within tensioner assembly breaks, or some other mechanical part of tensioner fails, there is no need to check tensioner for correct tension. Continental and Escort models have tensioner belt wear indicators. Tension is within specification if tensioner pointer is within indicator markings. See Fig 2 and Fig 3 . If tensioner reaches travel limit, as indicated by marks on tensioner, replace belt. Ensure serpentine belts are properly installed.

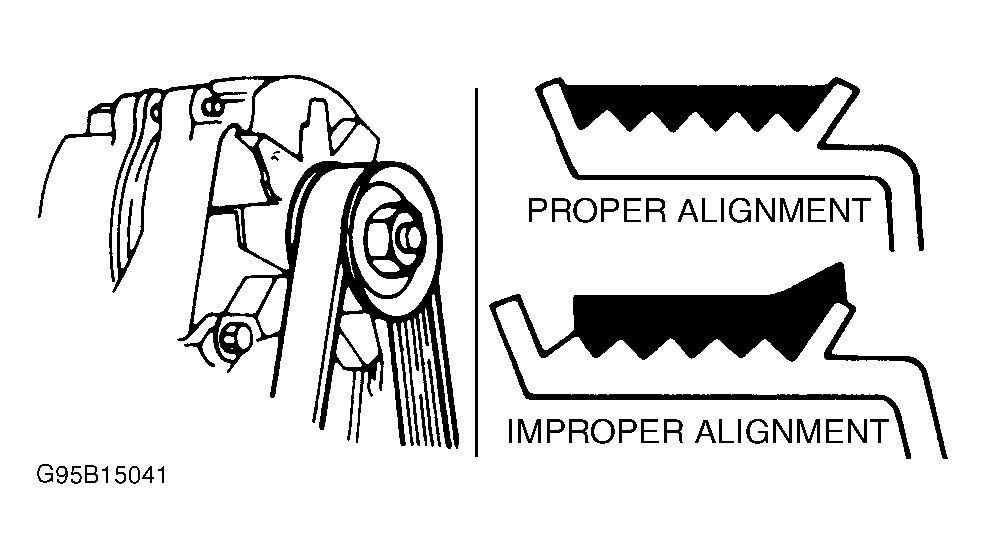

Fig 1: Checking Serpentine Belt Alignment

Courtesy of FORD MOTOR CO.

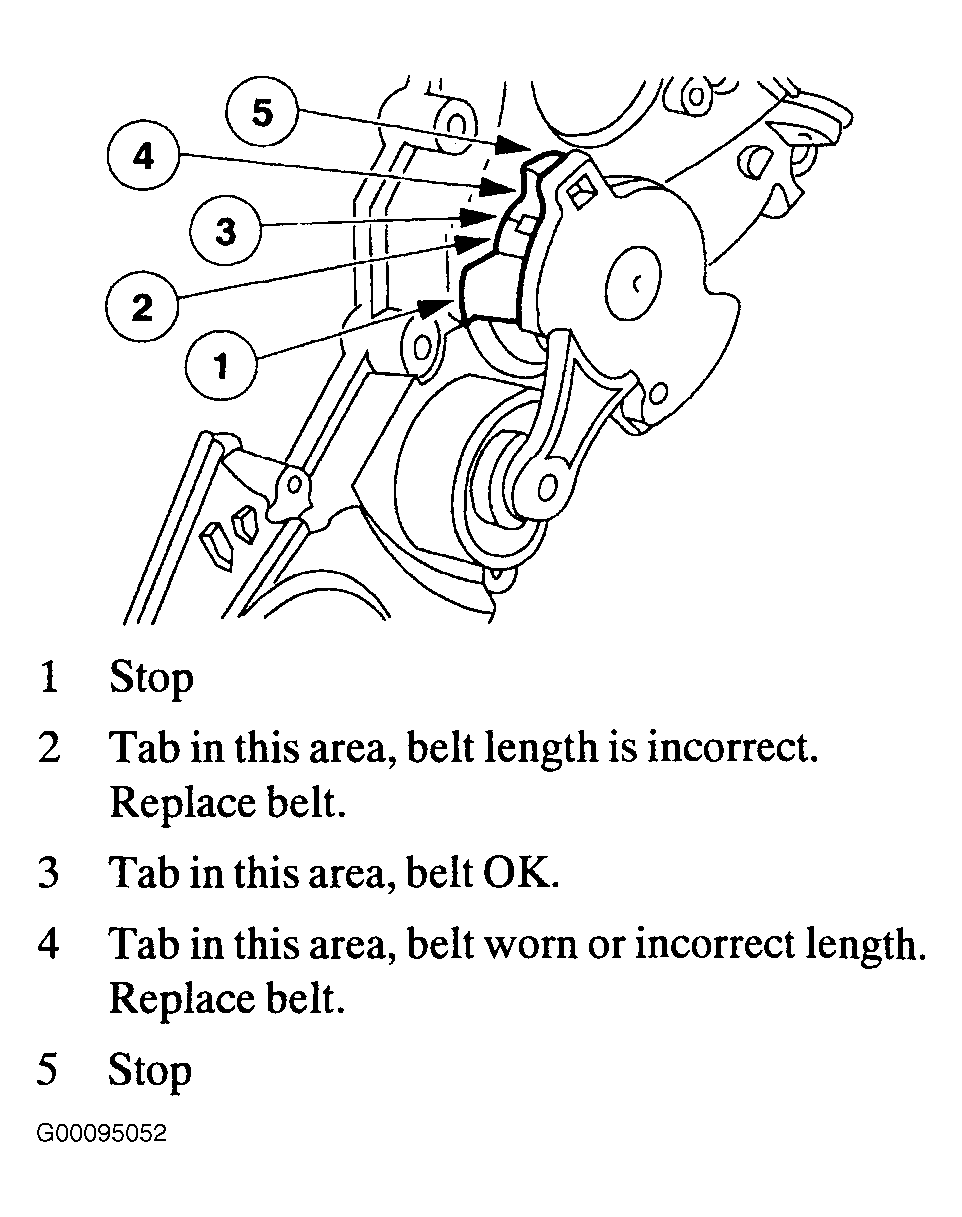

Fig 2: Locating Tensioner Wear Indicator (Continental Shown, Others Typical)

Courtesy of FORD MOTOR CO.

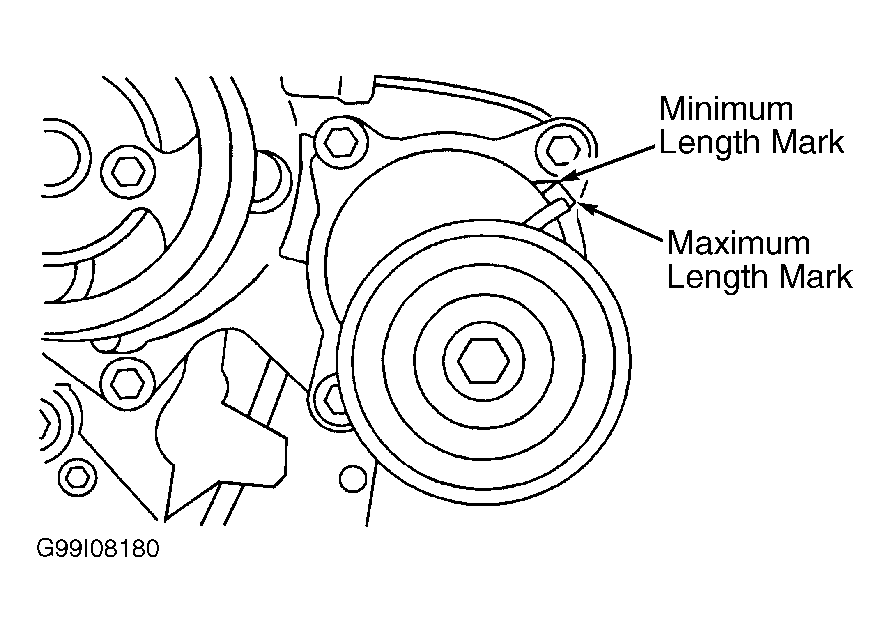

Fig 3: Locating Tensioner Wear Indicator (Escort Shown, Others Typical)

Courtesy of FORD MOTOR CO.
