Crankshaft Pulley: Removal

  1. Remove the engine cooling fan and fan shroud.
  2. Remove the drive belt.
  3. Remove the crankshaft pulley bolt.

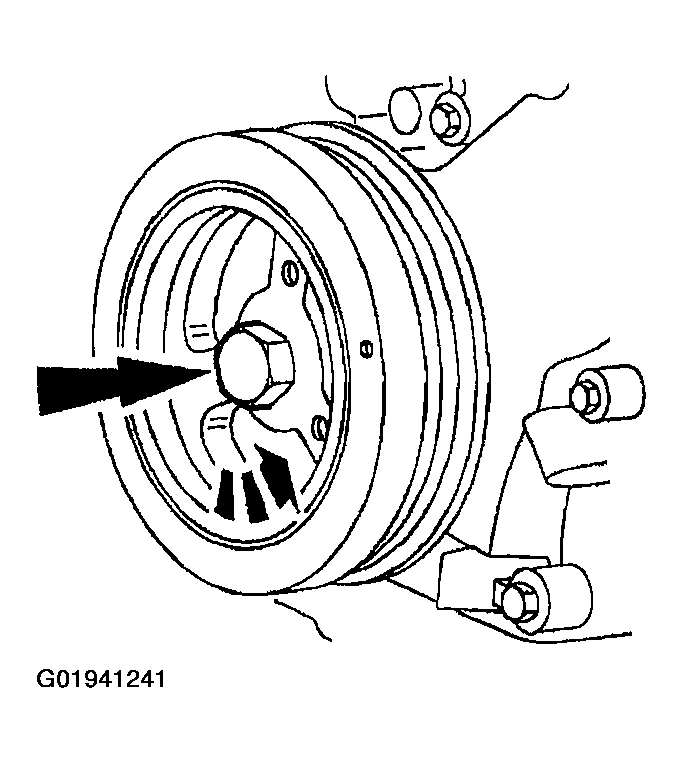

    Fig 1: Identifying Crankshaft Pulley Bolt
    G01941241Courtesy of FORD MOTOR CO.
  4. Use the Crankshaft Damper Remover to remove the crankshaft pulley.

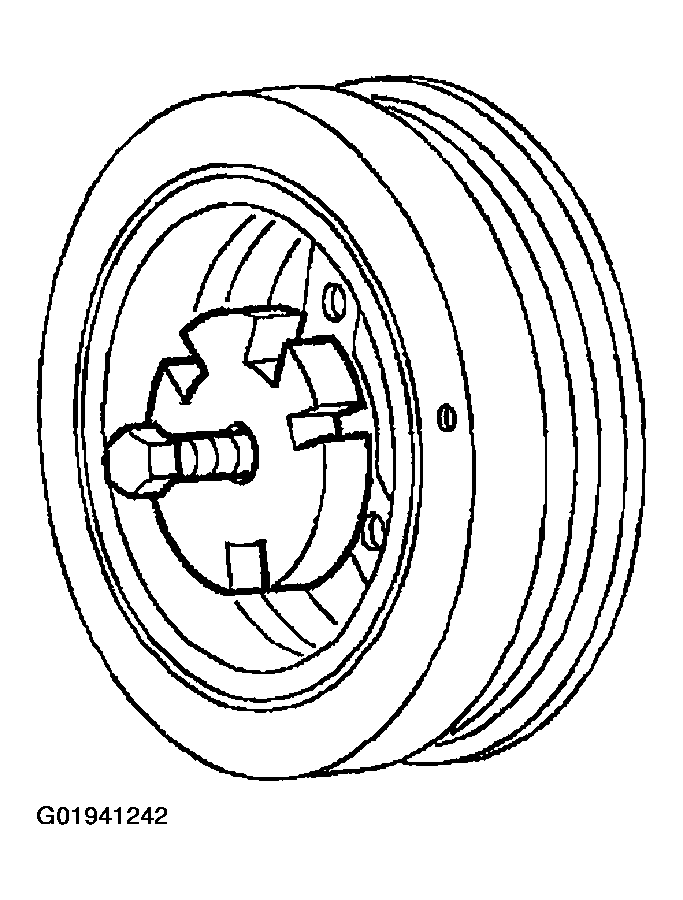

    Fig 2: Identifying Crankshaft Damper Remover
    G01941242Courtesy of FORD MOTOR CO.
