Crankshaft Pulley: Installation

    NOTE: The crankshaft pulley must be installed within four minutes after applying the silicone.

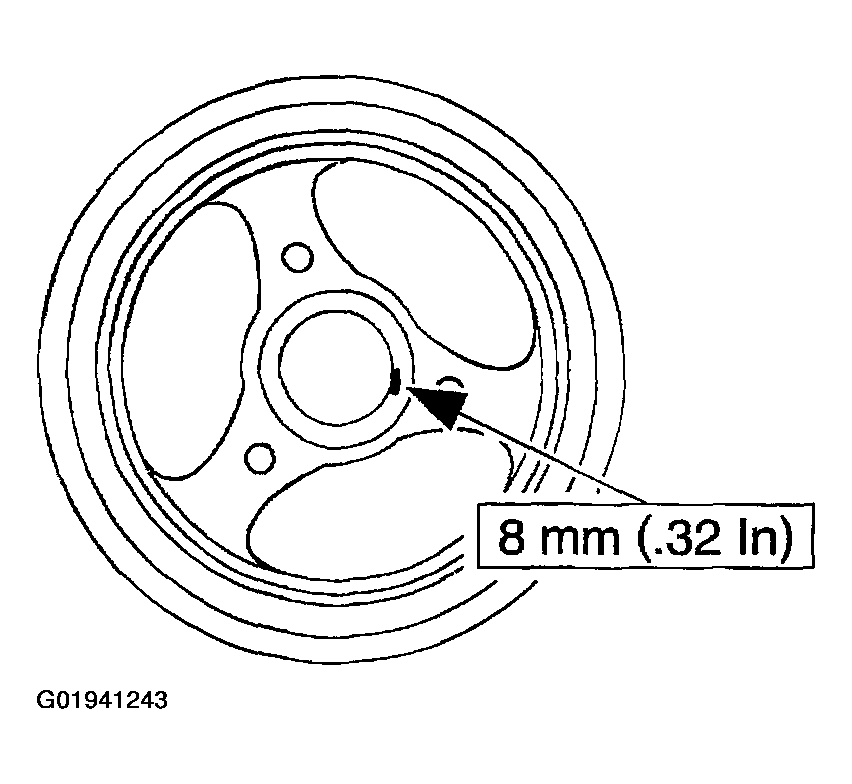

    Fig 1: Identifying Woodruff Key Slot
    G01941243Courtesy of FORD MOTOR CO.
  1. Apply silicone to the Woodruff key slot on the crankshaft pulley.
    • Use Silicone Gasket and Sealant F7AZ-19554-EA or equivalent meeting Ford specification WSE-M4G323-A4.
  2. Use the Crankshaft Damper Replacer to install the crankshaft pulley.

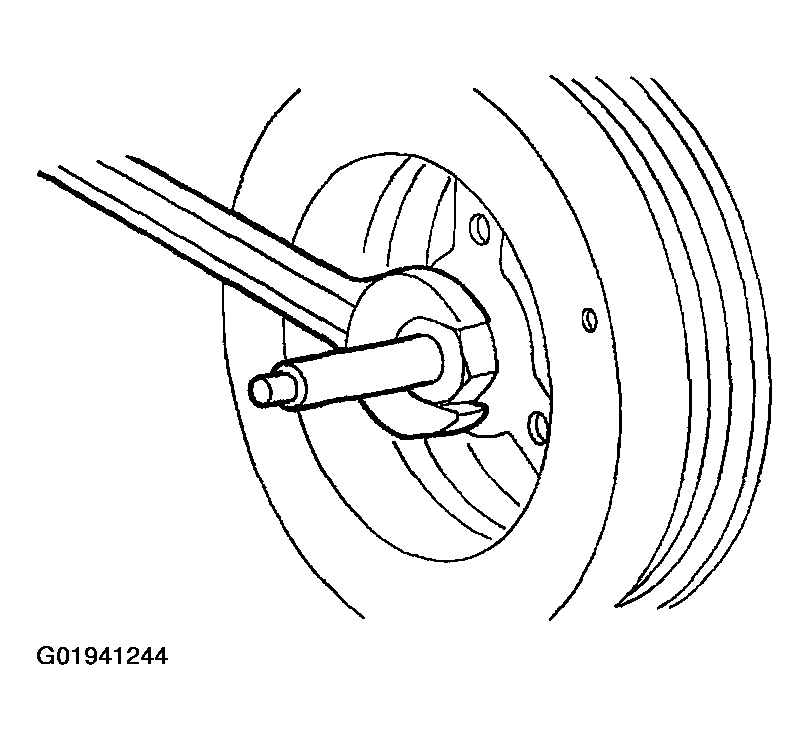

    Fig 2: Installing Crankshaft Pulley
    G01941244Courtesy of FORD MOTOR CO.
  3. Install the bolt and washer. Tighten the bolt in four steps.
    • Step 1: Tighten to 90 N.m (66 lb-ft).
    • Step 2: Loosen the bolt.
    • Step 3: Tighten to 47-53 N.m (34-39 lb-ft).
    • Step 4: Tighten an additional 85-90 degrees.

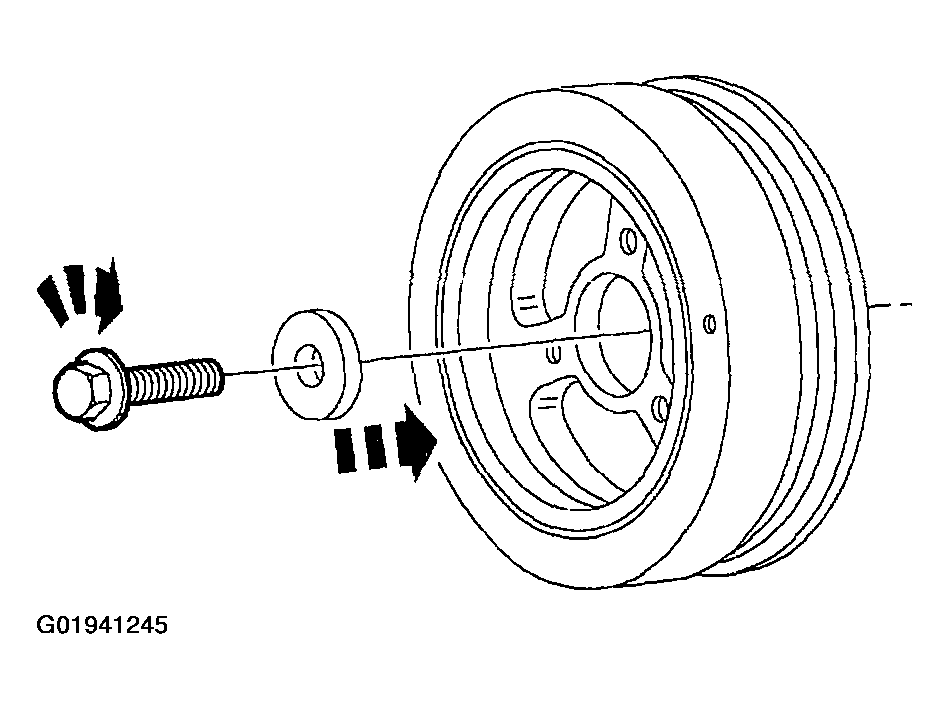

    Fig 3: Identifying Crankshaft Pulley, Bolt & Washer
    G01941245Courtesy of FORD MOTOR CO.
  4. Install the drive belt.
  5. Install the engine cooling fan and the fan shroud.
