Hydraulic Lash Adjusters: Removal

  1. Remove the camshaft roller followers. For additional information, refer to CAMSHAFT ROLLER FOLLOWER .
  2. Remove the valve tappets.

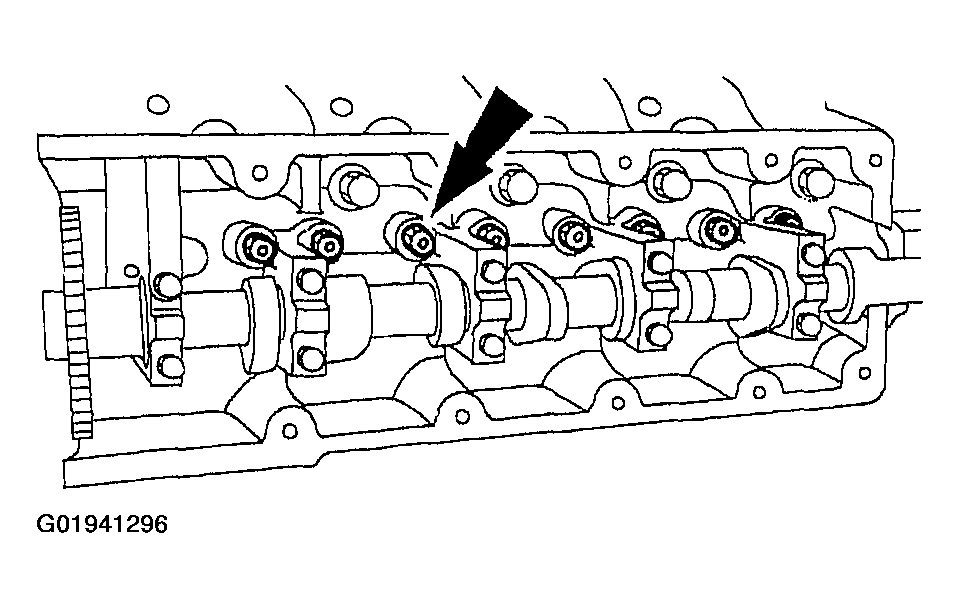

    Fig 1: Identifying Valve Tappets
    G01941296Courtesy of FORD MOTOR CO.
