Camshaft Roller Follower: Removal

  1. Remove the valve cover (6582). For additional information, refer to VALVE COVER RH  and VALVE COVER LH  .
  2. Position the piston (6108) of the cylinder being repaired at the bottom of the stroke.
  3. Install the Valve Spring Spacer between the valve spring coils to prevent valve stem seal damage.

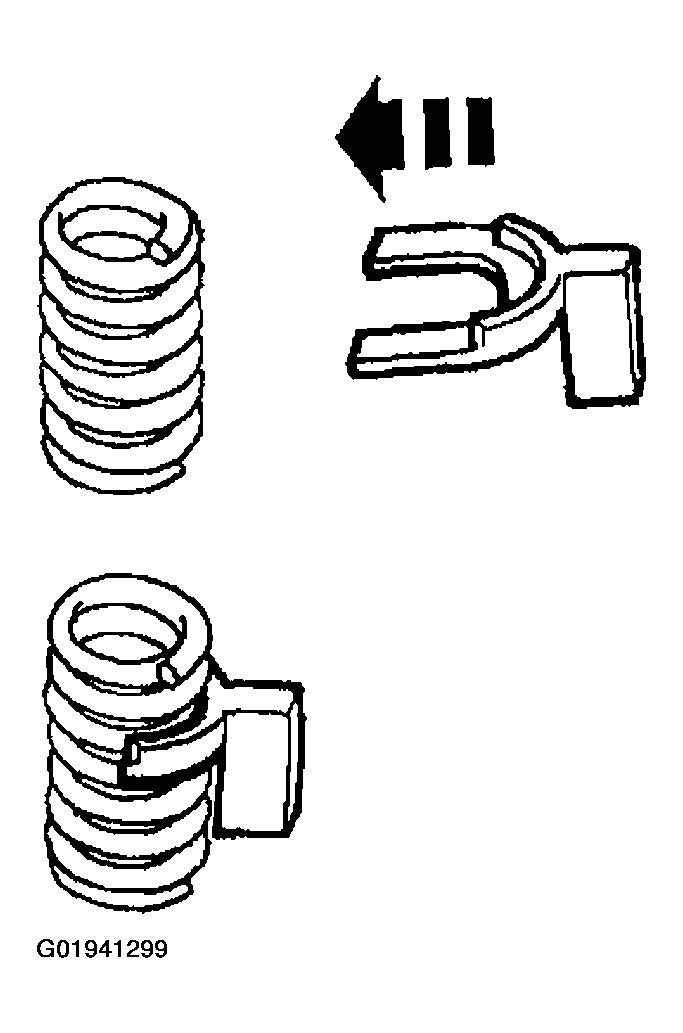

    Fig 1: Installing Valve Spring Spacer Between Valve Spring Coils
    G01941299Courtesy of FORD MOTOR CO.
  4. Use the Valve Spring Compressor to compress the valve springs (6513) and remove the cam roller followers.

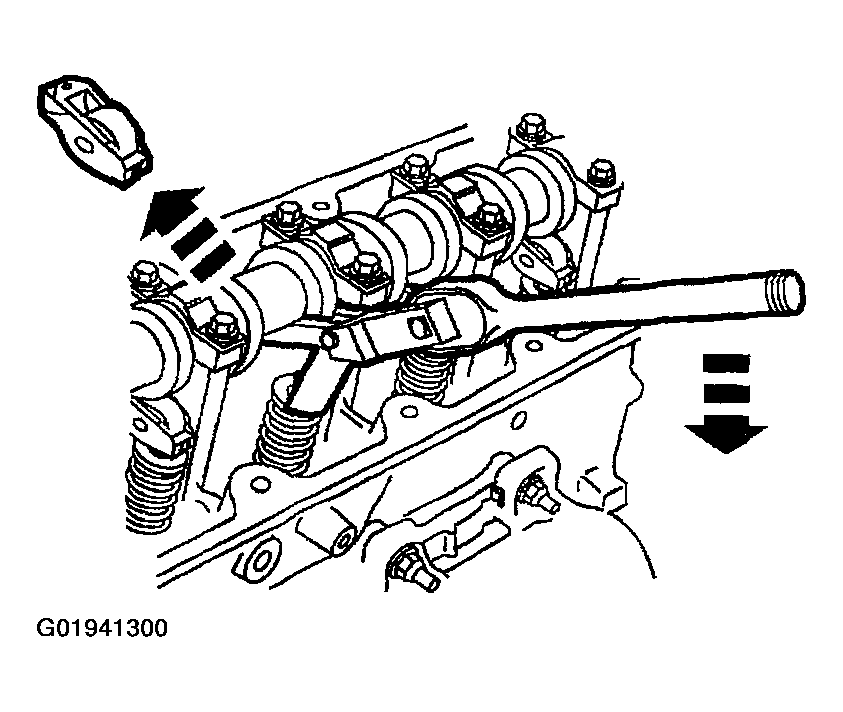

    Fig 2: Removing Cam Roller Followers
    G01941300Courtesy of FORD MOTOR CO.
