Camshaft Roller Follower: Installation

  1. Use the (A) Valve Spring Compressor to compress the (B) valve spring and install the (C) camshaft roller followers.

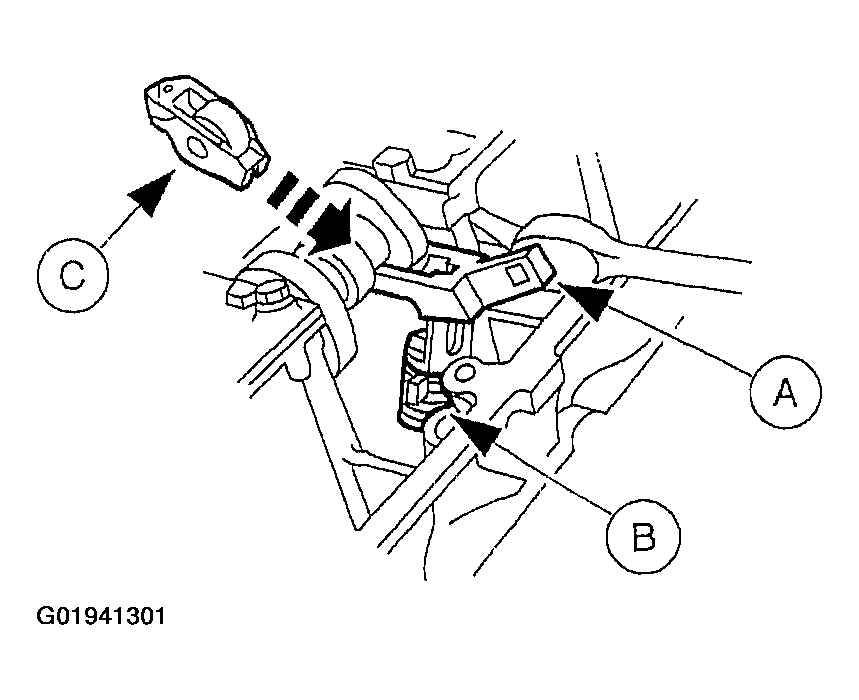

    Fig 1: Identifying Valve Spring Compressor, Valve Spring & Camshaft Roller Followers
    G01941301Courtesy of FORD MOTOR CO.
  2. Remove the Valve Spring Spacer.

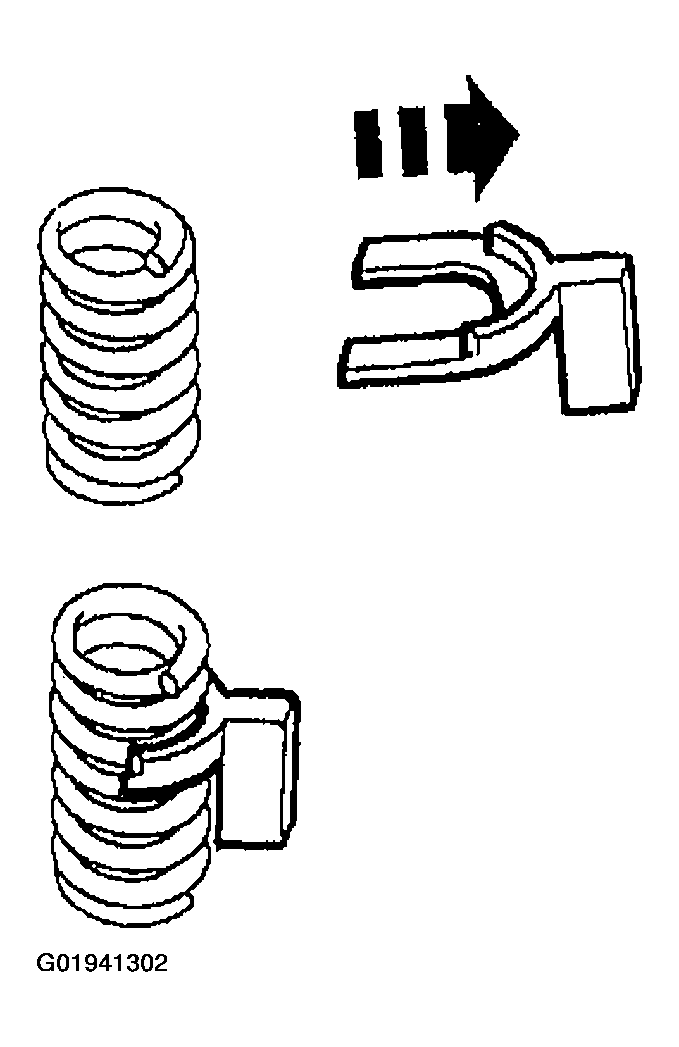

    Fig 2: Removing Valve Spring Spacer From Valve Spring Coils
    G01941302Courtesy of FORD MOTOR CO.
  3. Install the valve cover. For additional information, refer to VALVE COVER RH  and VALVE COVER LH  .
