Cylinder Head RH: Removal
- Disconnect the battery ground cable (14301). For additional information, refer to
BATTERY, MOUNTING & CABLES
.
- Remove the intake manifold (9424). For additional information, refer to
INTAKE MANIFOLD - NATURAL GAS ENGINES or
INTAKE MANIFOLD - GASOLINE ENGINES
.
- Remove the valve covers (6582). For additional information, refer to
VALVE COVER RH and
VALVE COVER LH
.
- Remove the engine front cover (6019). For additional information, refer to
ENGINE FRONT COVER .
- Remove the spark plugs (12405).
- Remove the A/C evaporator housing (19850). For additional information, refer to
EVAPORATOR CORE HOUSING
.

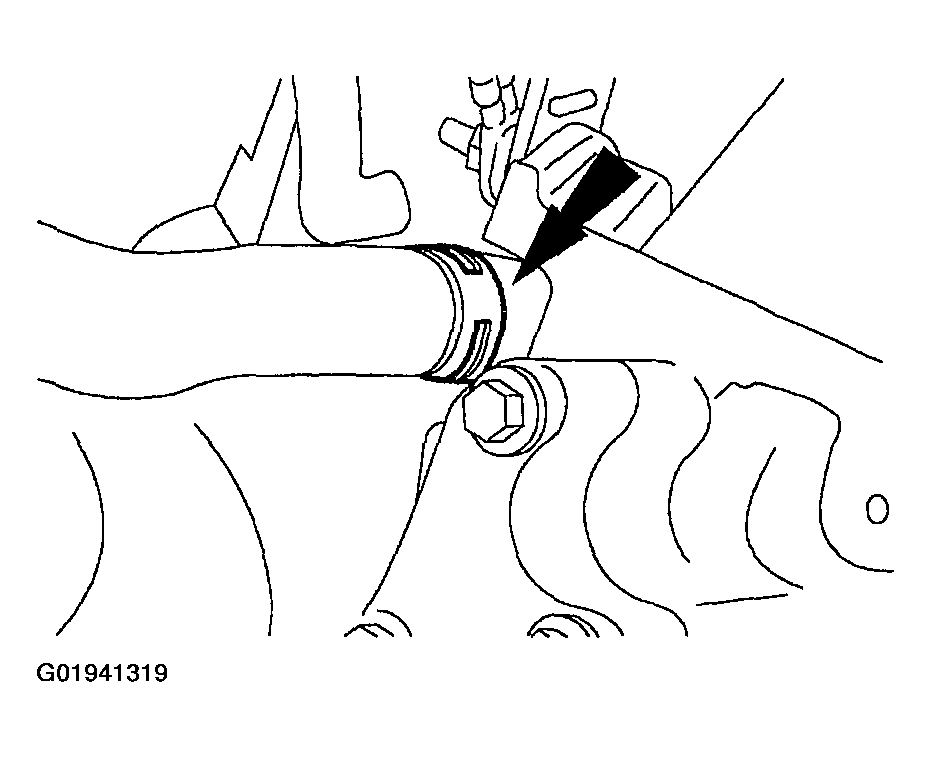

- Position the clamp out of the way and remove the hose.
Courtesy of FORD MOTOR CO.

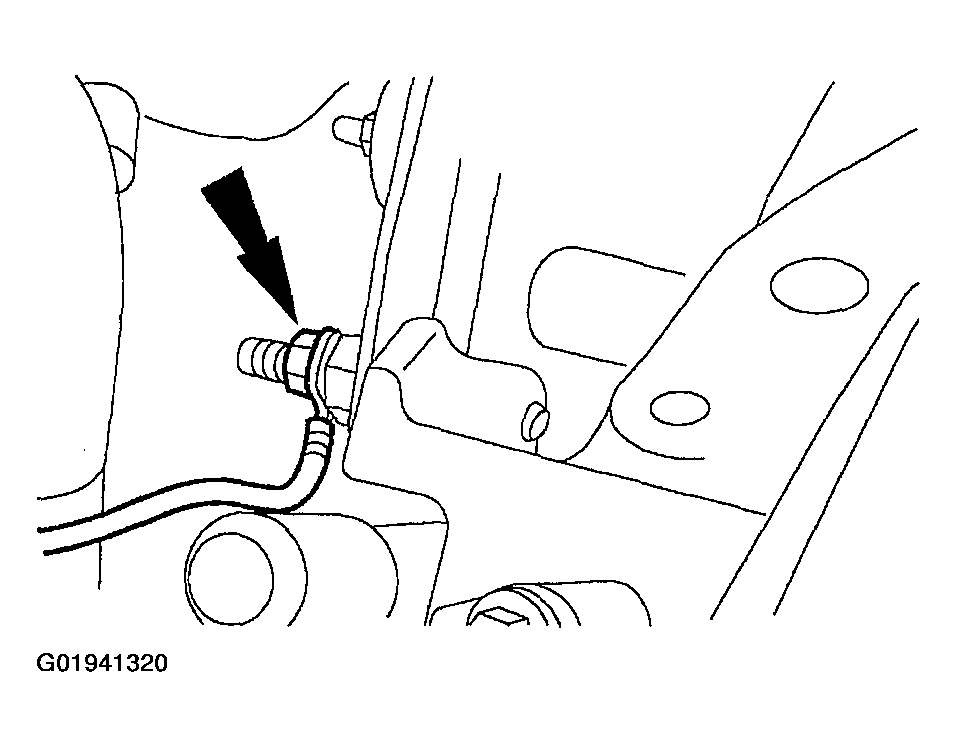

- Remove the nut and the cylinder head ground strap.
Courtesy of FORD MOTOR CO.

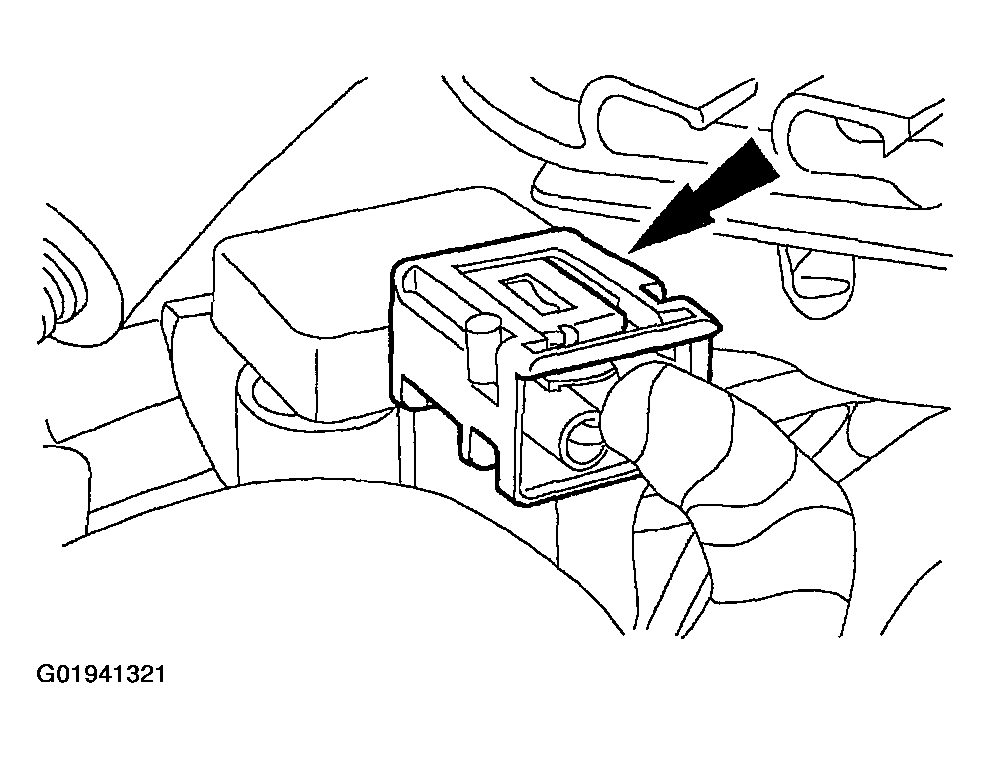

- Disconnect the differential pressure feedback EGR connector.
Courtesy of FORD MOTOR CO.

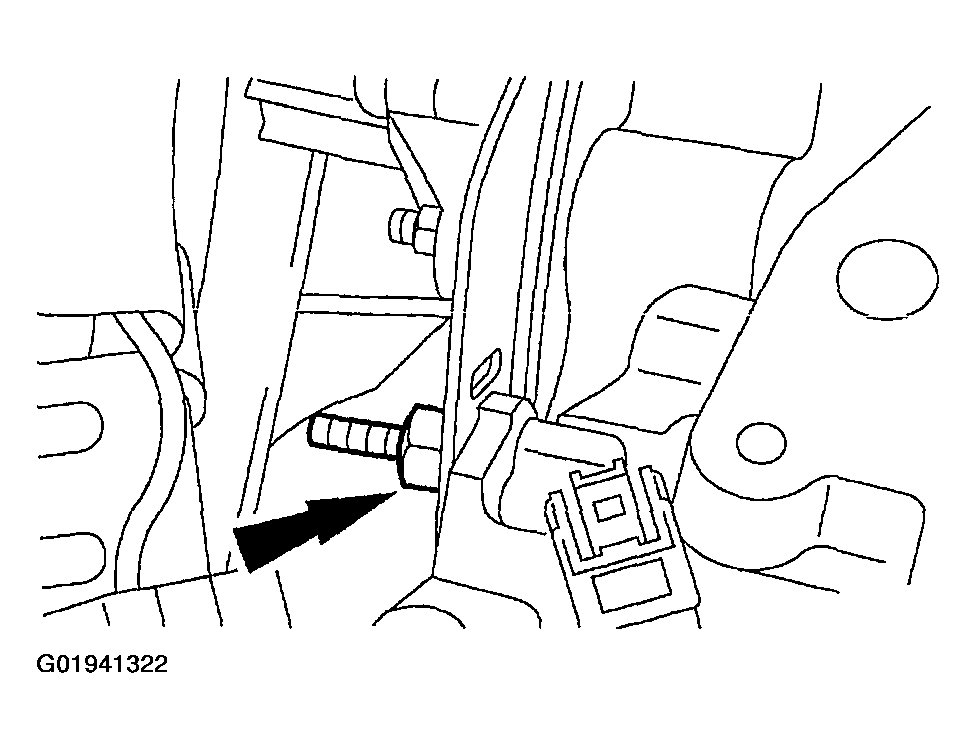

- Remove the stud.
Courtesy of FORD MOTOR CO.
- Remove the water bypass tube (8555).
Courtesy of FORD MOTOR CO.
- Inspect the O-ring seals and install O-ring seals as necessary.
- Remove the timing chain (6268). For additional information, refer to
TIMING DRIVE COMPONENTS .
Courtesy of FORD MOTOR CO.

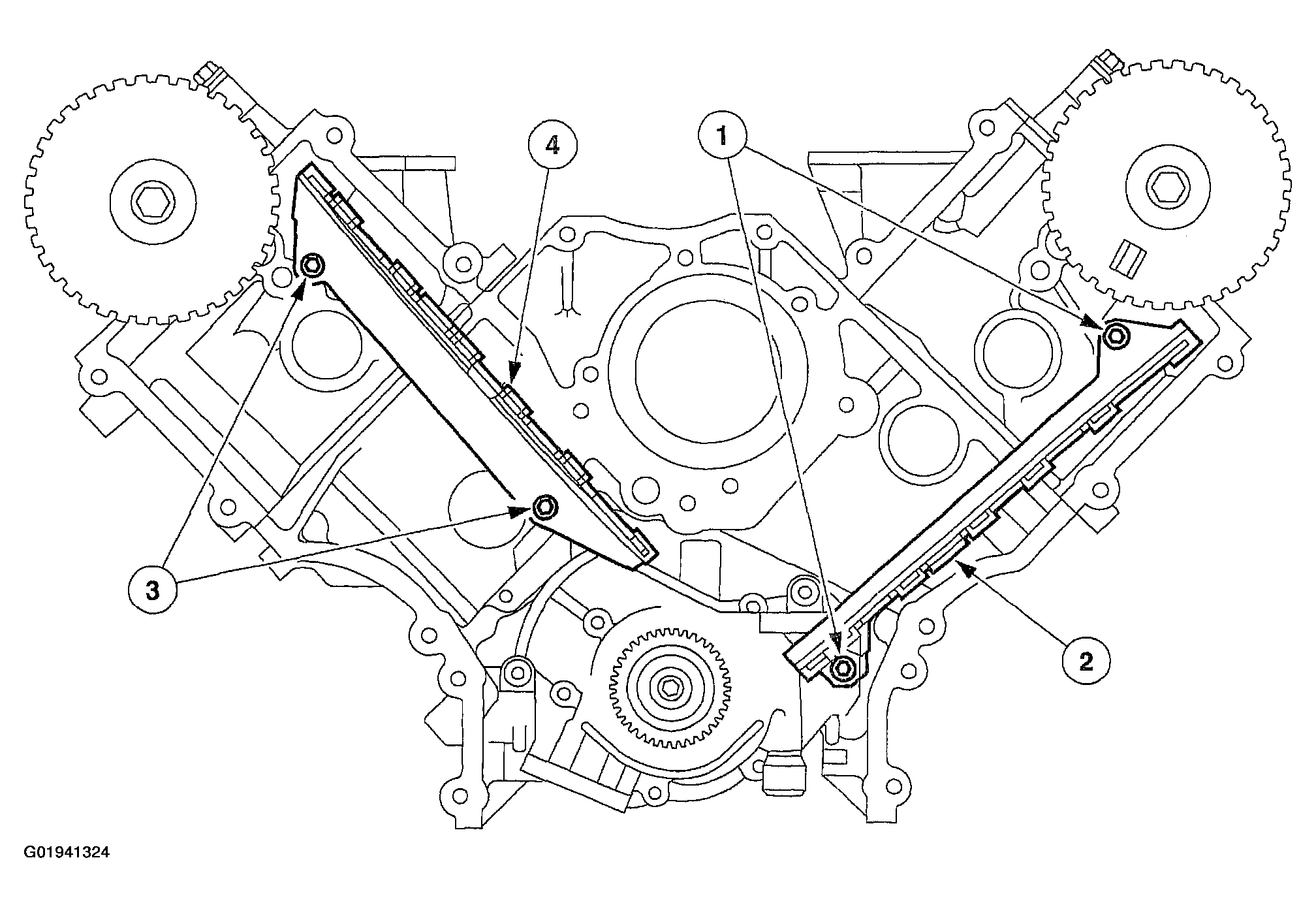

- Remove the LH and RH timing chain guides.

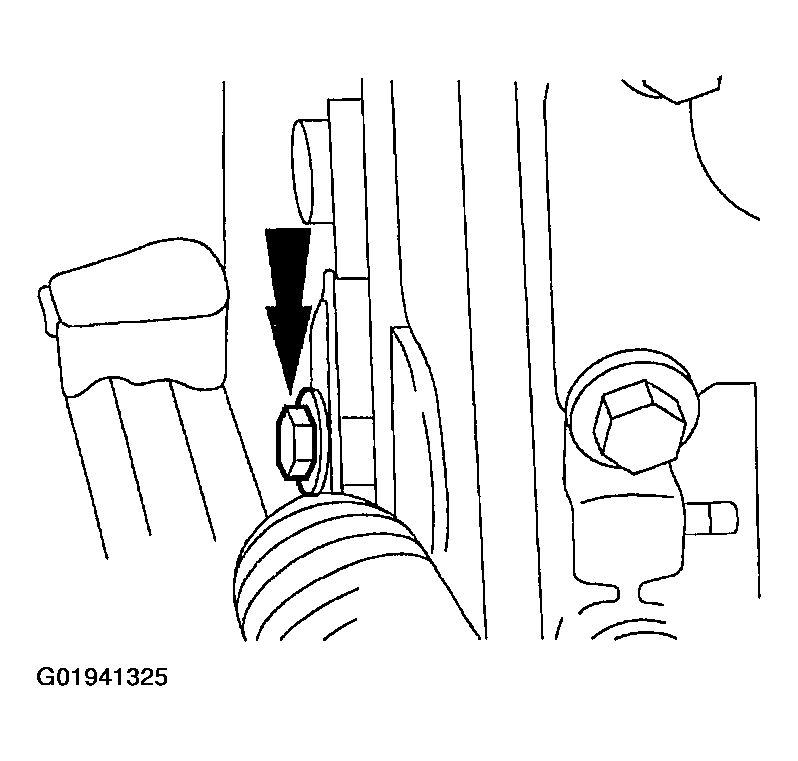

- Remove the bolt.
Courtesy of FORD MOTOR CO.
- Raise the vehicle.
- Disconnect the right and the left exhaust manifold (9430). For additional information, refer to
EXHAUST MANIFOLD - RH and EXHAUST MANIFOLD - LH
.
- Lower the vehicle.
- Remove the bolts from the cylinder head (6049).

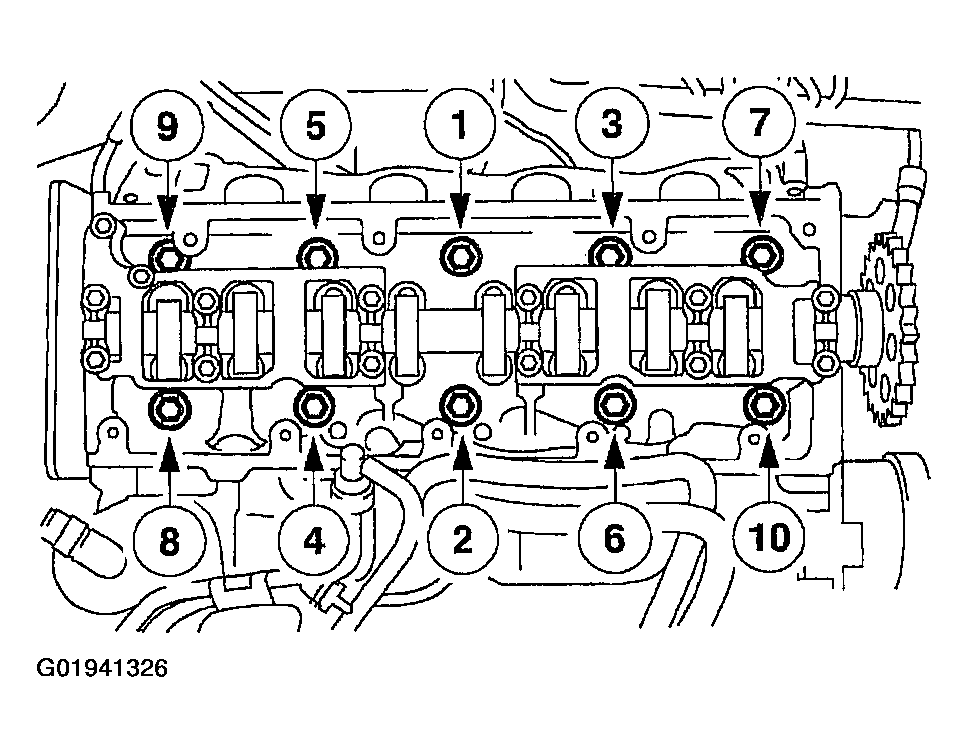

- Loosen the RH bolts in three one-turn passes in the sequence shown and remove the bolts.
Courtesy of FORD MOTOR CO.

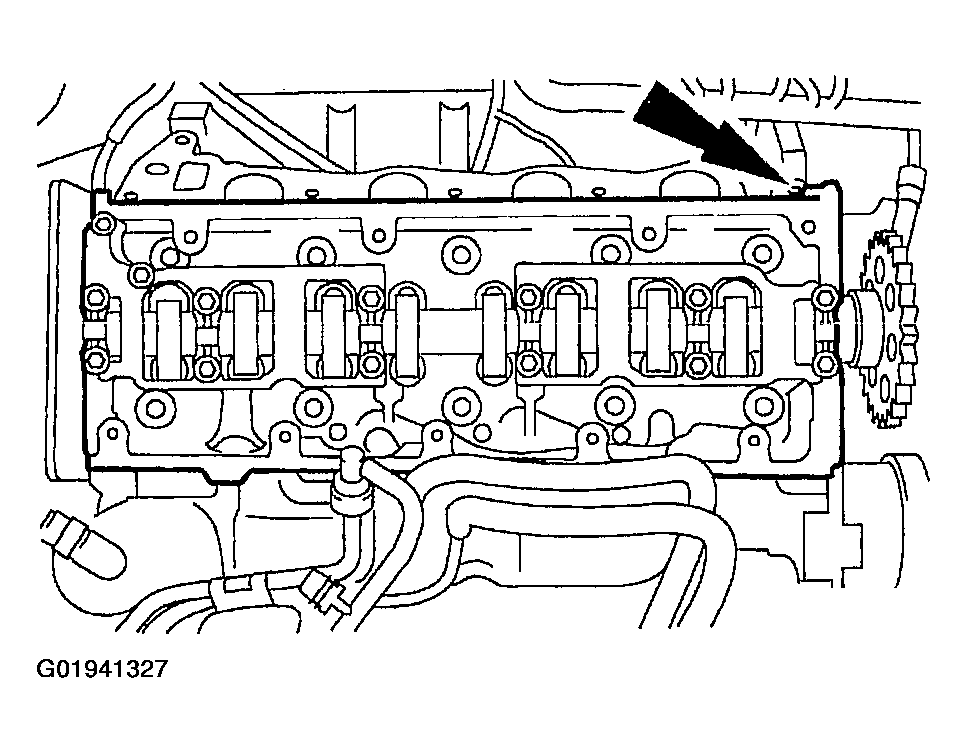

- Remove the RH cylinder head.
Courtesy of FORD MOTOR CO.

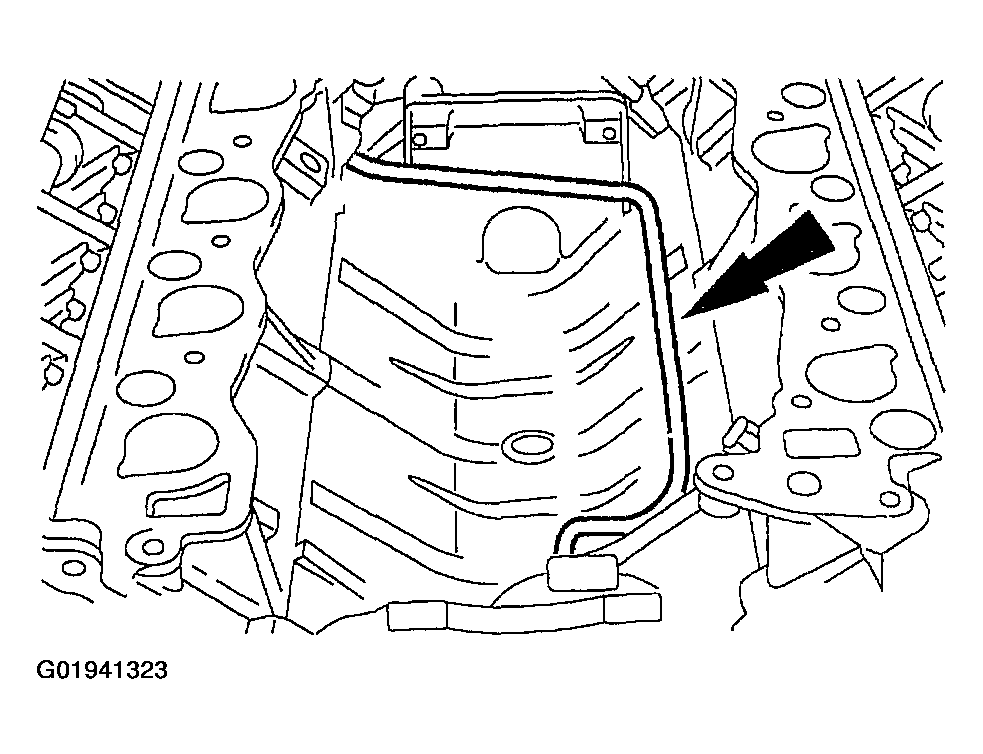

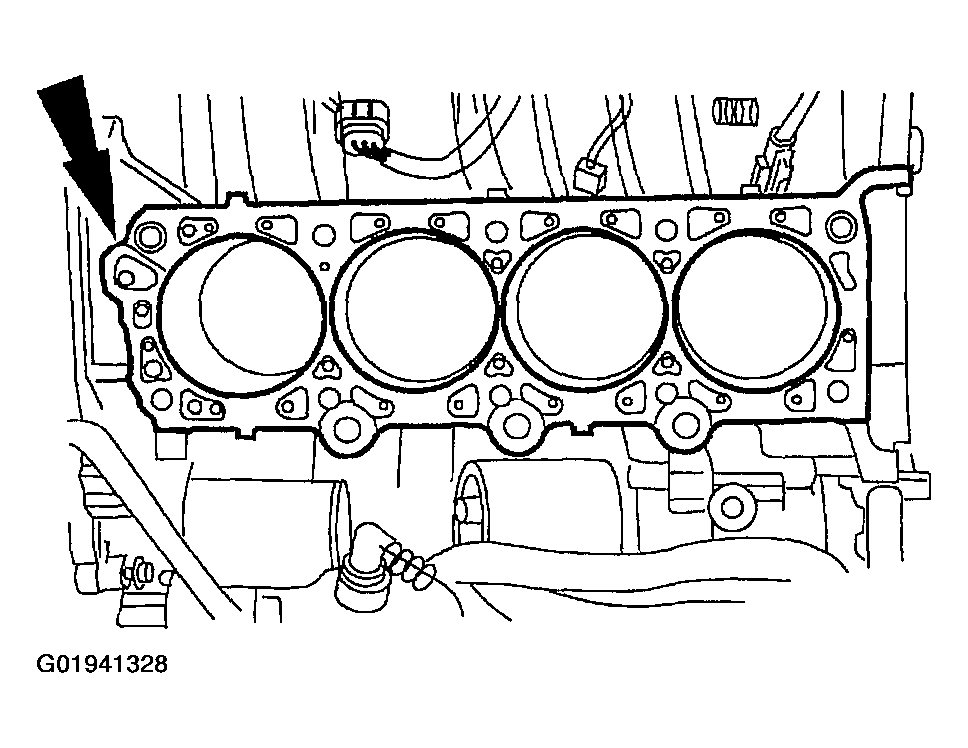

- Remove the gasket.
Courtesy of FORD MOTOR CO.

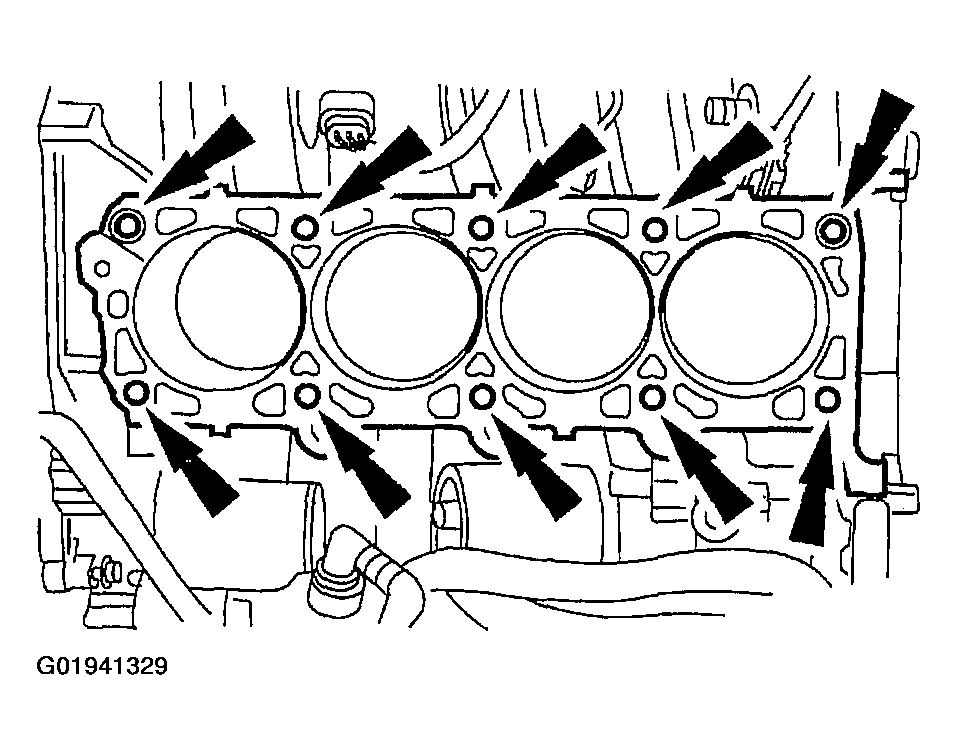

- Clean the sealing surface and clean out the bolt holes.
Courtesy of FORD MOTOR CO.
