Cylinder Head LH: Removal

Remove the intake manifold. For additional information, refer to INTAKE MANIFOLD - NATURAL GAS ENGINES or INTAKE MANIFOLD - GASOLINE ENGINES .
Remove the timing chains. For additional information, refer to TIMING DRIVE COMPONENTS .
Remove the LH exhaust manifold. For additional information, refer to EXHAUST MANIFOLD - LH .
Disconnect the radio ignition interference capacitor and remove the engine control sensor wiring.

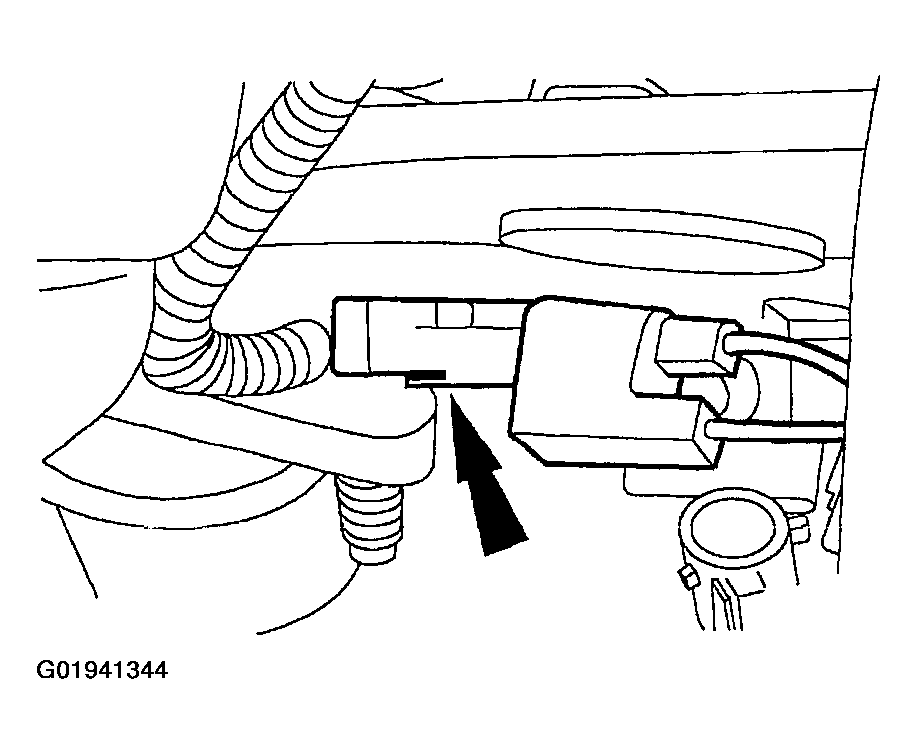

Fig 1: Identifying Radio Ignition Interference Capacitor
Courtesy of FORD MOTOR CO.
Remove the bolt and the oil level indicator tube.

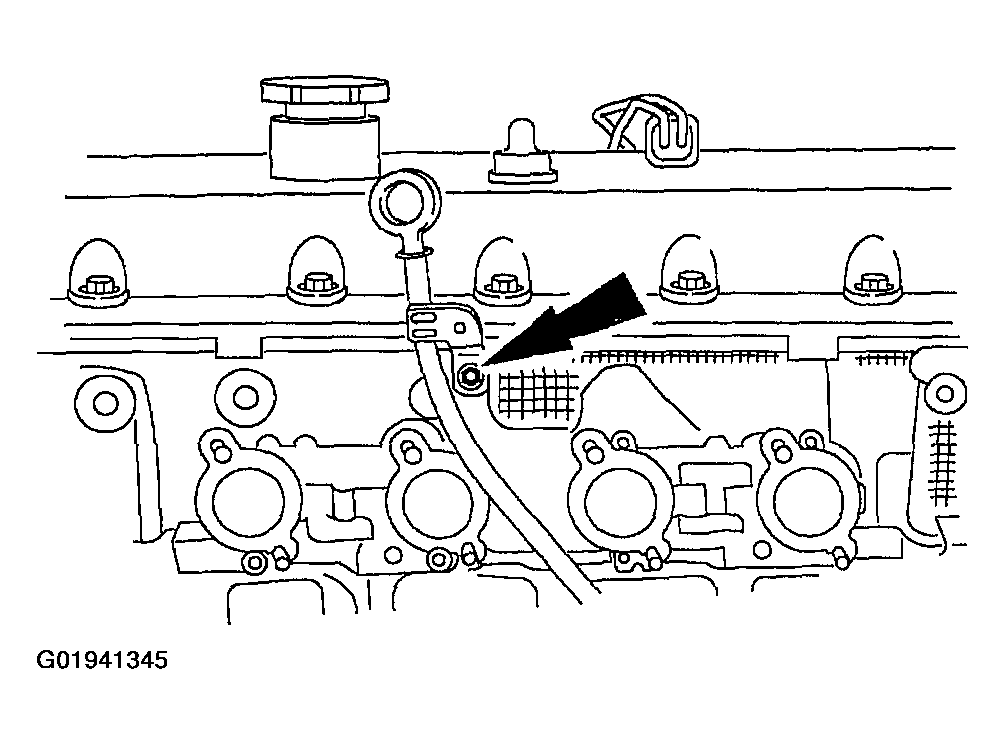

Fig 2: Identifying Oil Level Indicator Tube Bolt
Courtesy of FORD MOTOR CO.
Inspect the O-rings, replace as necessary.

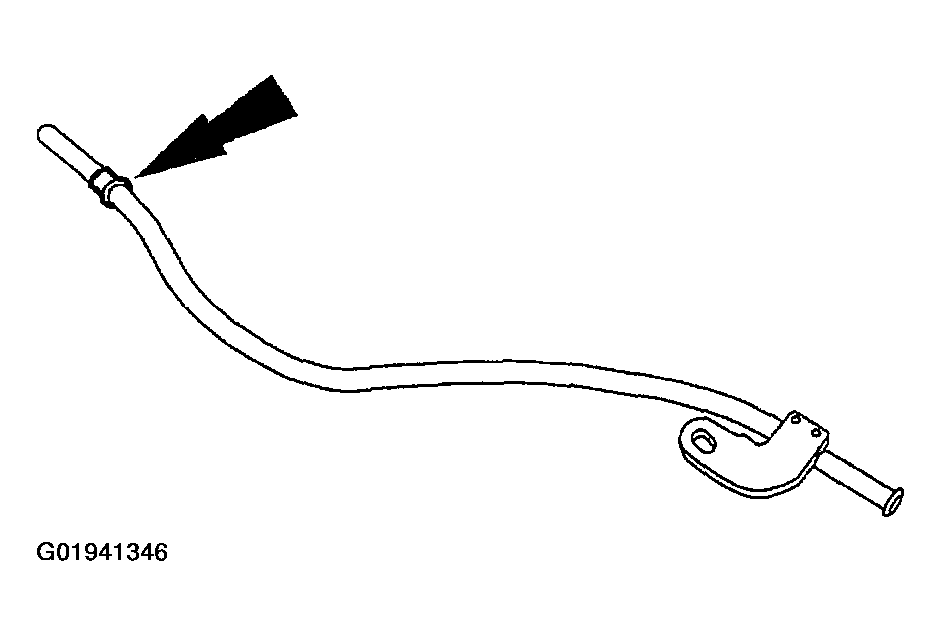

Fig 3: Identifying Oil Level Indicator Tube O-Ring
Courtesy of FORD MOTOR CO.
Remove the LH and RH timing chain guides.

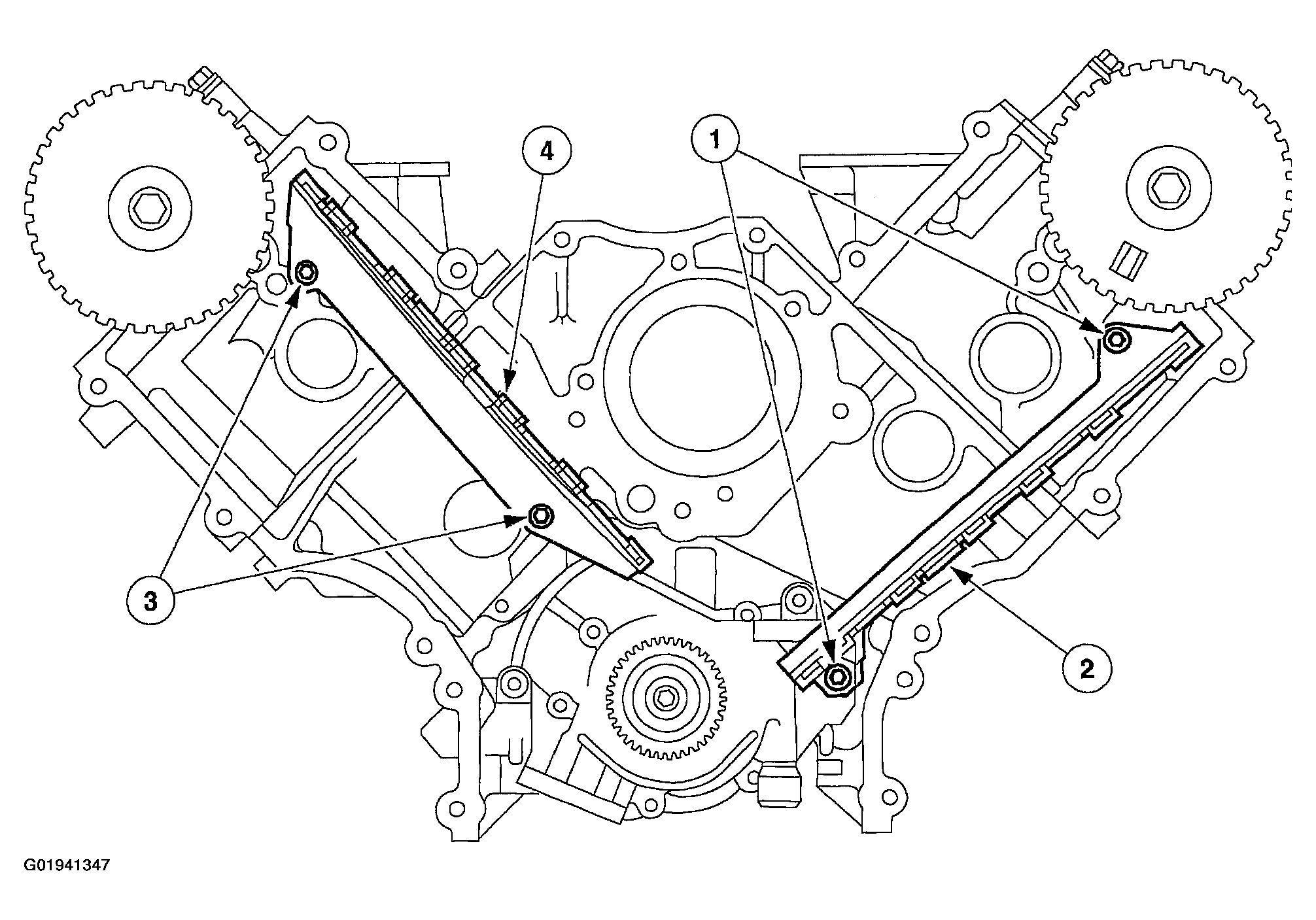

Fig 4: Identifying Timing Components

Courtesy of FORD MOTOR CO.

NOTE: It will be necessary to support the number eight bolt. Pull the bolt out far enough so it does not contact the block, then place a rubber band or a piece of tape around the bolt to support it. This will aid in the removal of the cylinder head (6049) by keeping the bolt out of the way.

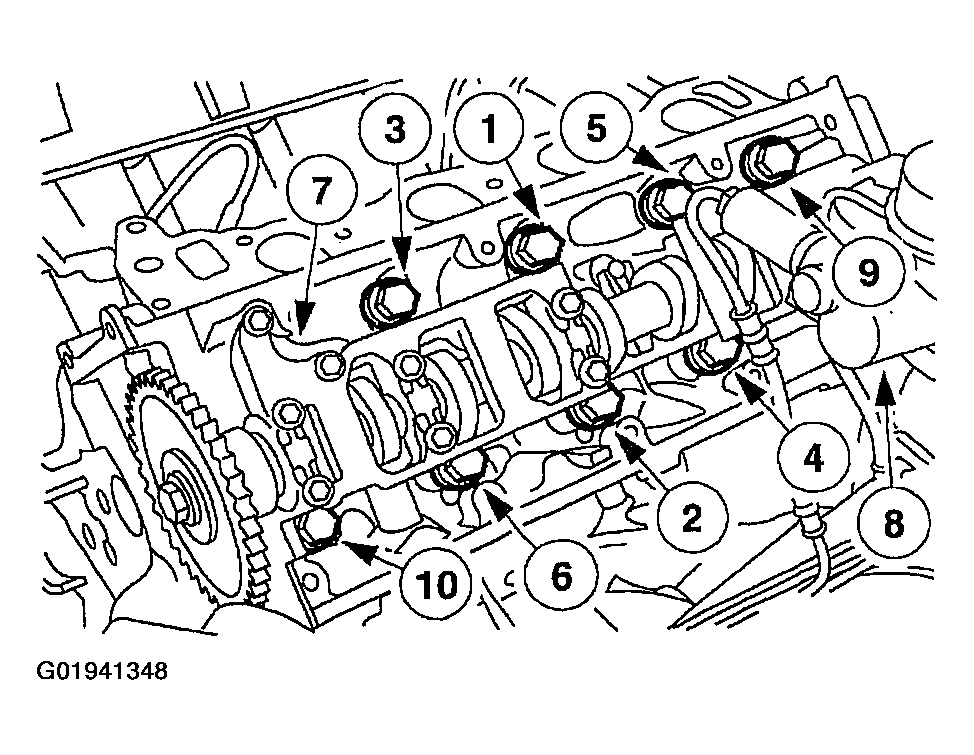

Fig 5: Identifying Cylinder Head Bolt Removal Sequence

Courtesy of FORD MOTOR CO.

Loosen the ten bolts in three one-turn passes in the sequence shown and remove the bolts.
Remove the LH cylinder head.

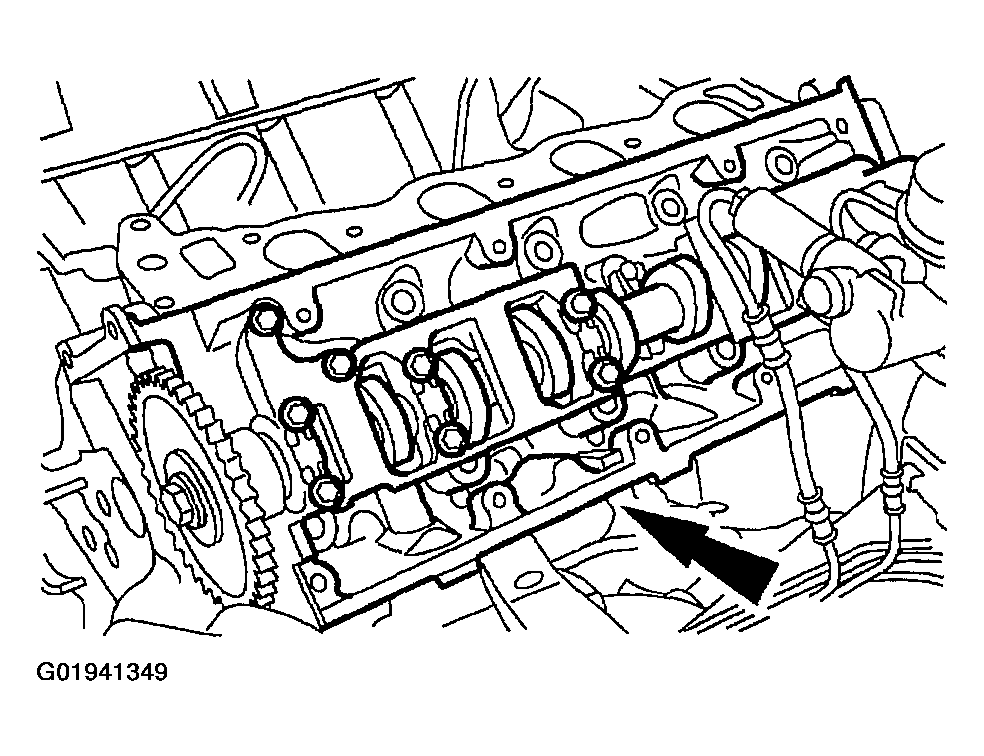

Fig 6: Identifying LH Cylinder Head
Courtesy of FORD MOTOR CO.
Remove the gasket.

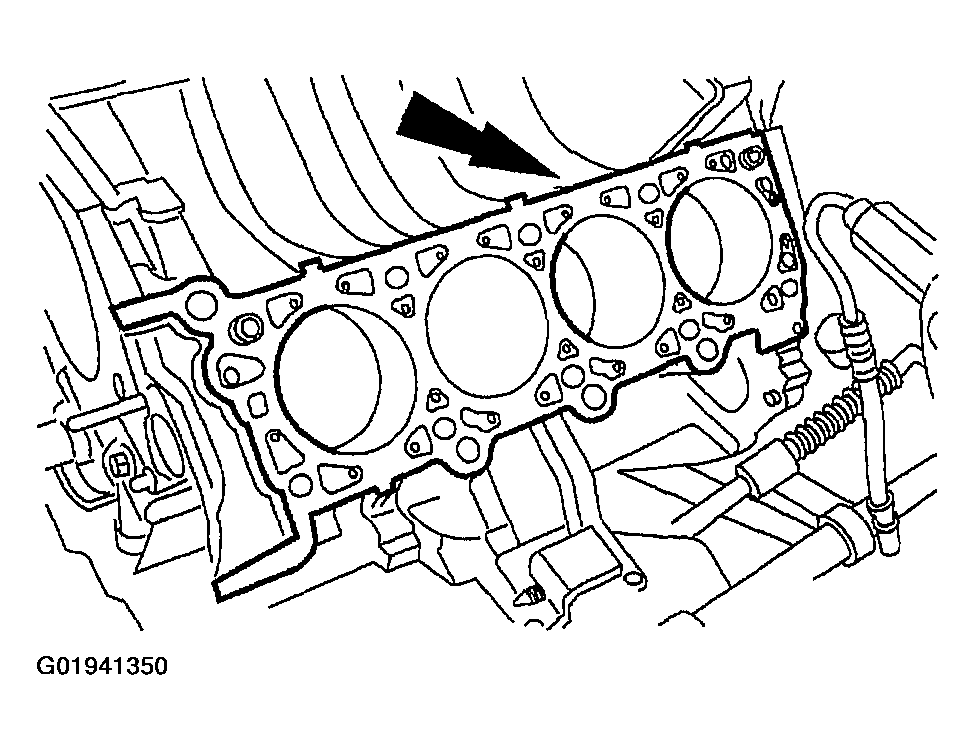

Fig 7: Identifying Cylinder Head Gasket
Courtesy of FORD MOTOR CO.
