Oil Pan: Installation

Install the oil pan and gasket on the vehicle.
Install the O-ring, using a new one if necessary.

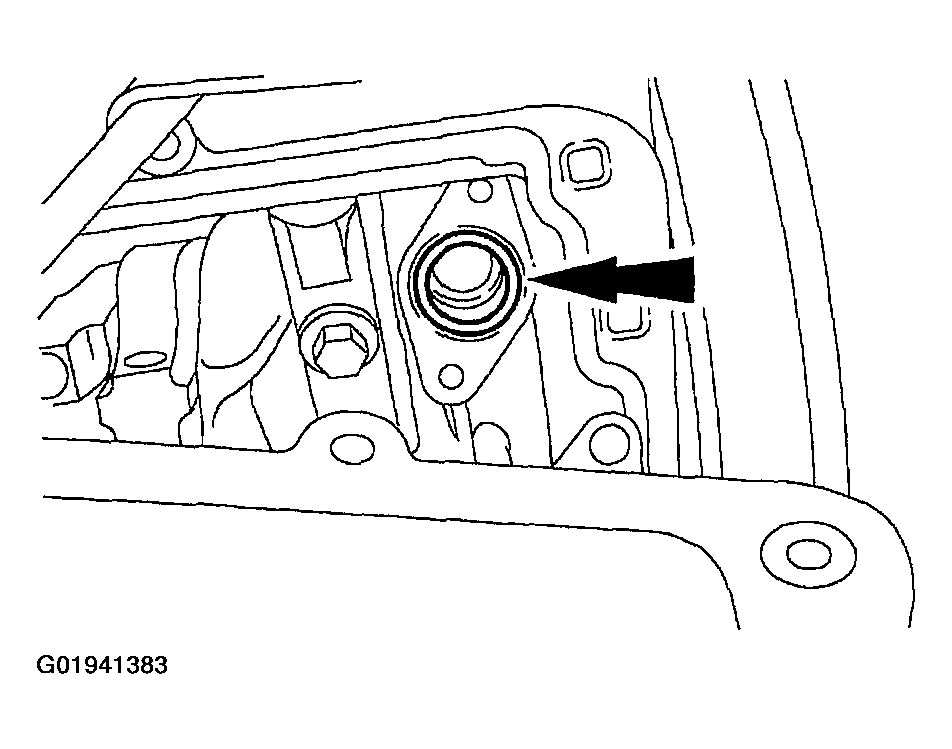

Fig 1: Identifying Oil Pickup Tube O-Ring
Courtesy of FORD MOTOR CO.
Position the oil pickup tube and tighten the bolts.

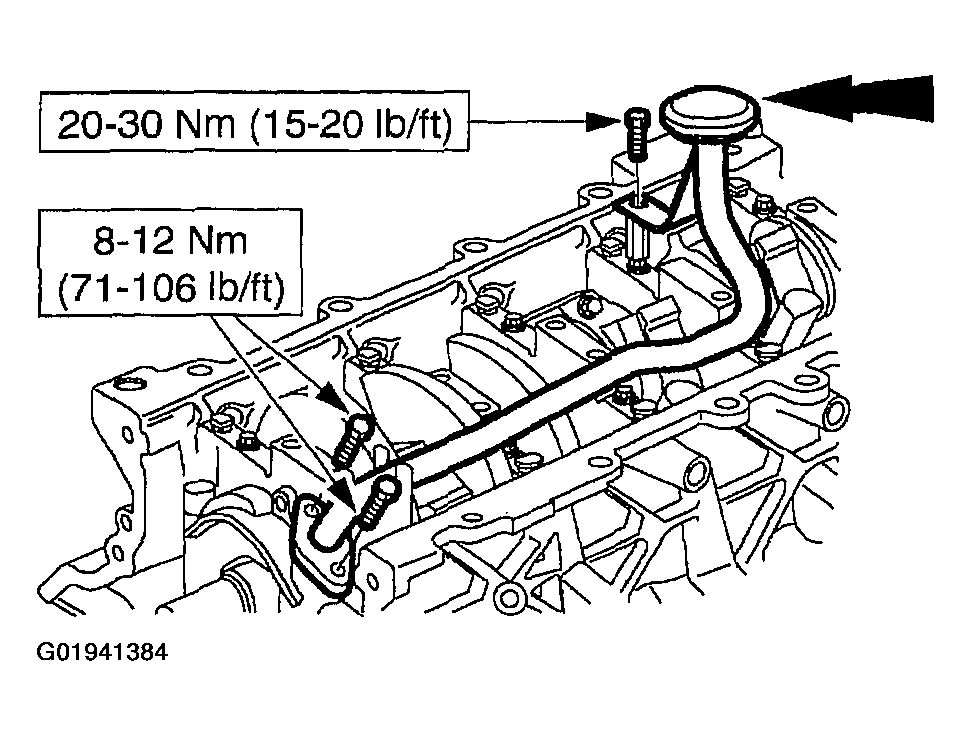

Fig 2: Tightening Oil Pickup Tube Bolts
Courtesy of FORD MOTOR CO.
Install and tighten the bolts.

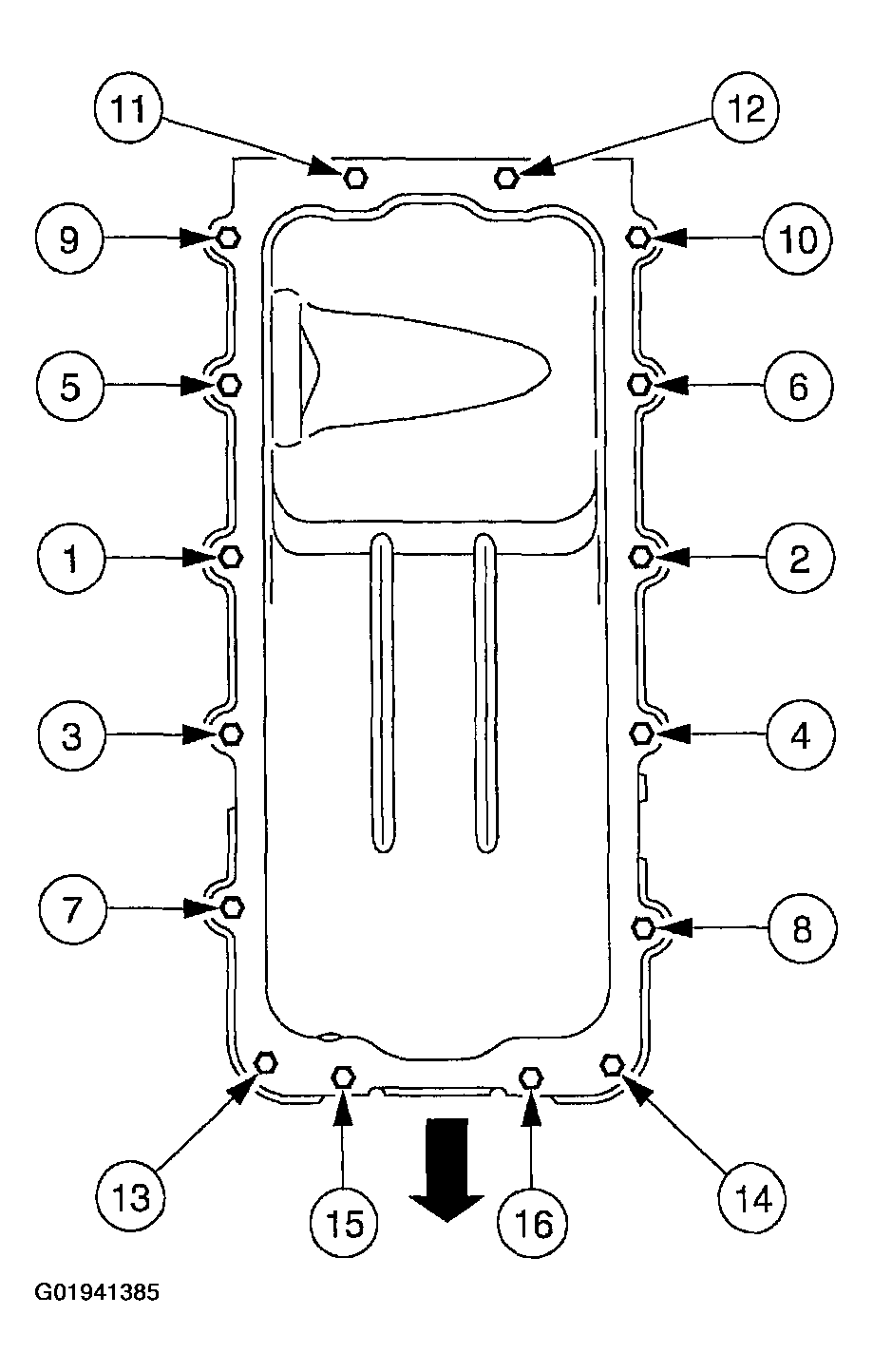

Fig 3: Identifying Oil Pan Bolt Tightening Sequence
Courtesy of FORD MOTOR CO.
Tighten the nuts.

Fig 4: Tightening Transmission Mount Nuts
Courtesy of FORD MOTOR CO.

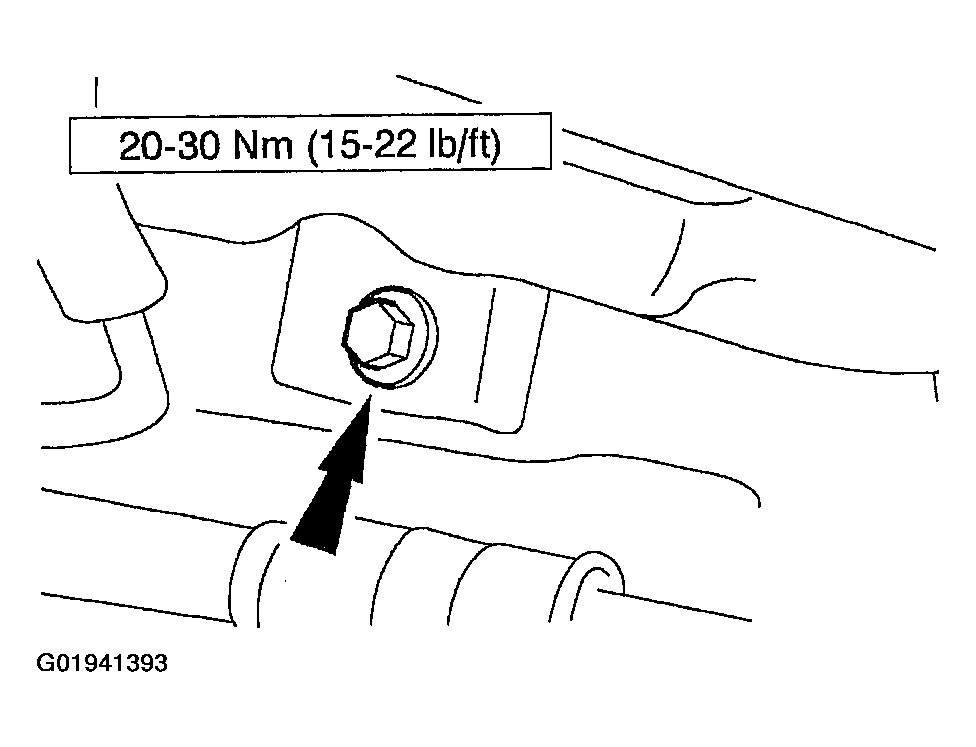

Install and tighten the bolt.

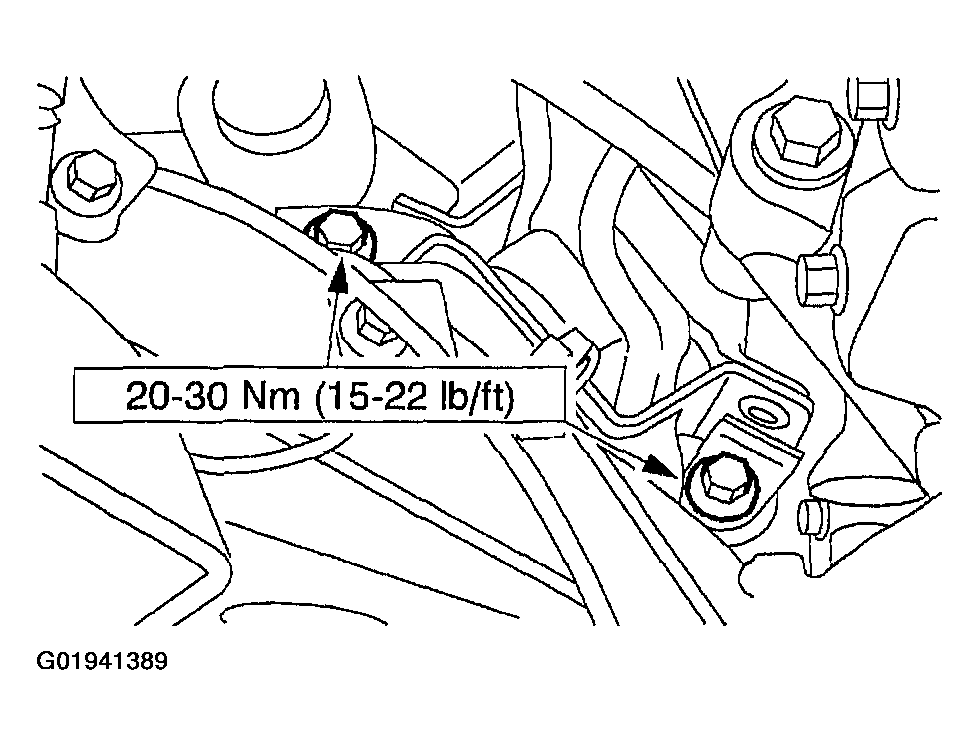

Fig 5: Tightening Transmission Line Support Bracket Bolt
Courtesy of FORD MOTOR CO.
Reposition the exhaust and tighten the nuts.

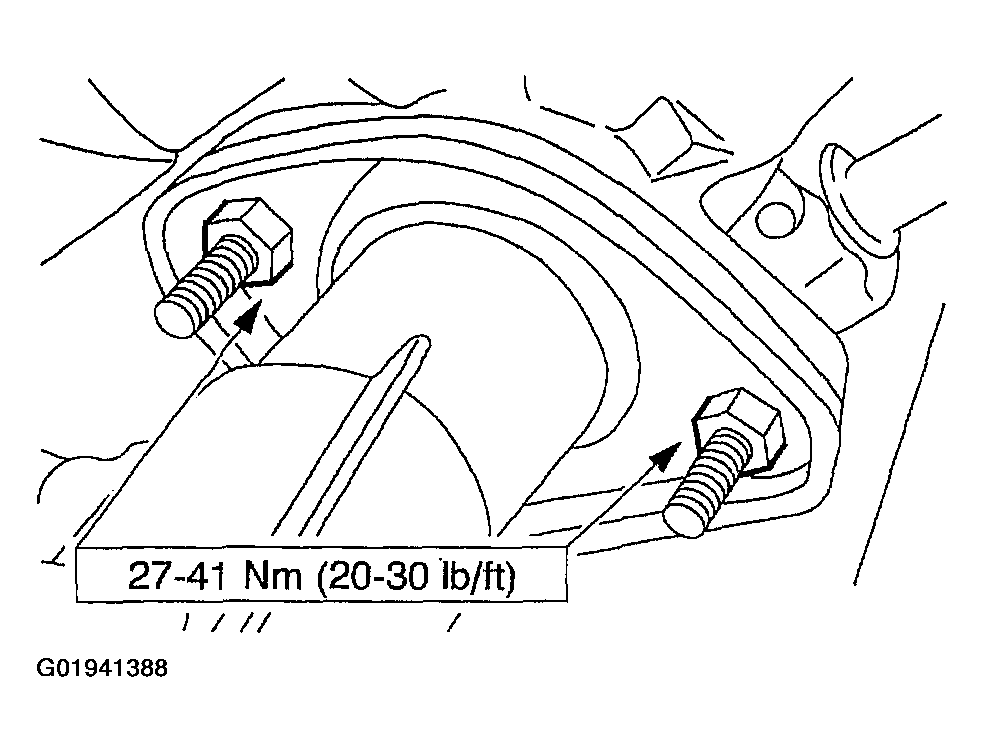

Fig 6: Tightening Exhaust Manifold Flange Nuts
Courtesy of FORD MOTOR CO.
Install and tighten the bolts.

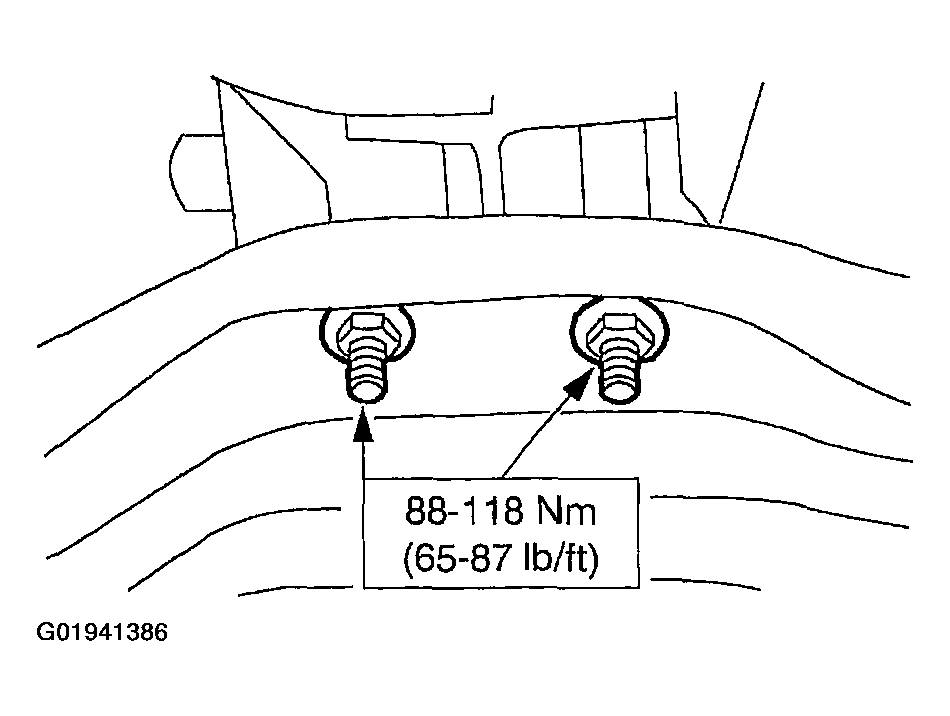

Fig 7: Tightening LH Engine Mount Bolts
Courtesy of FORD MOTOR CO.

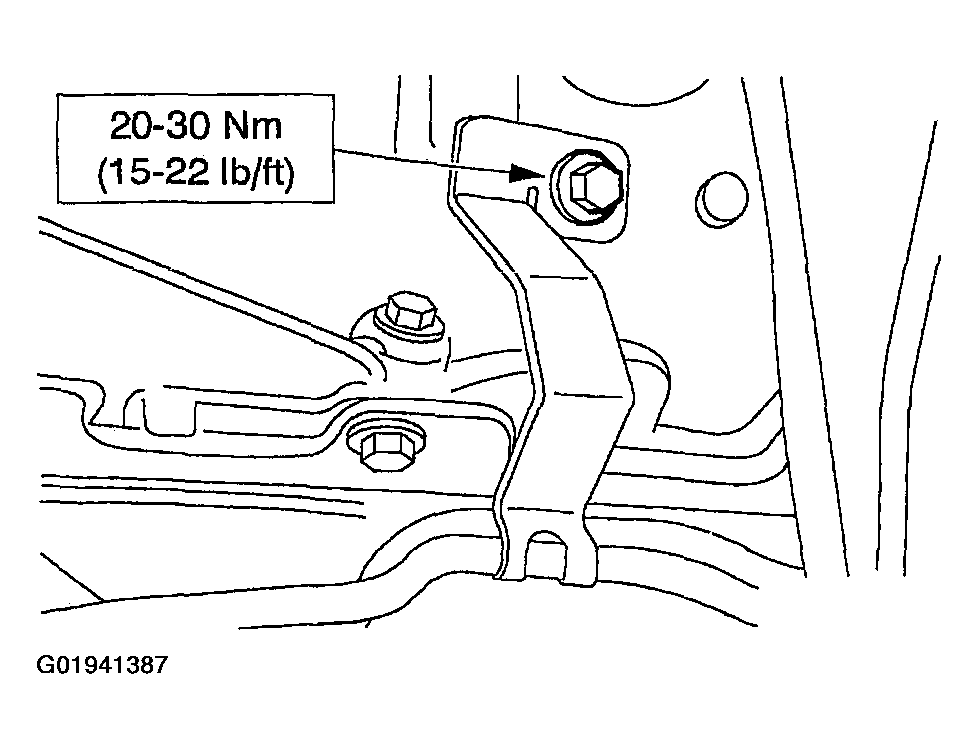

Install and tighten the bolt.

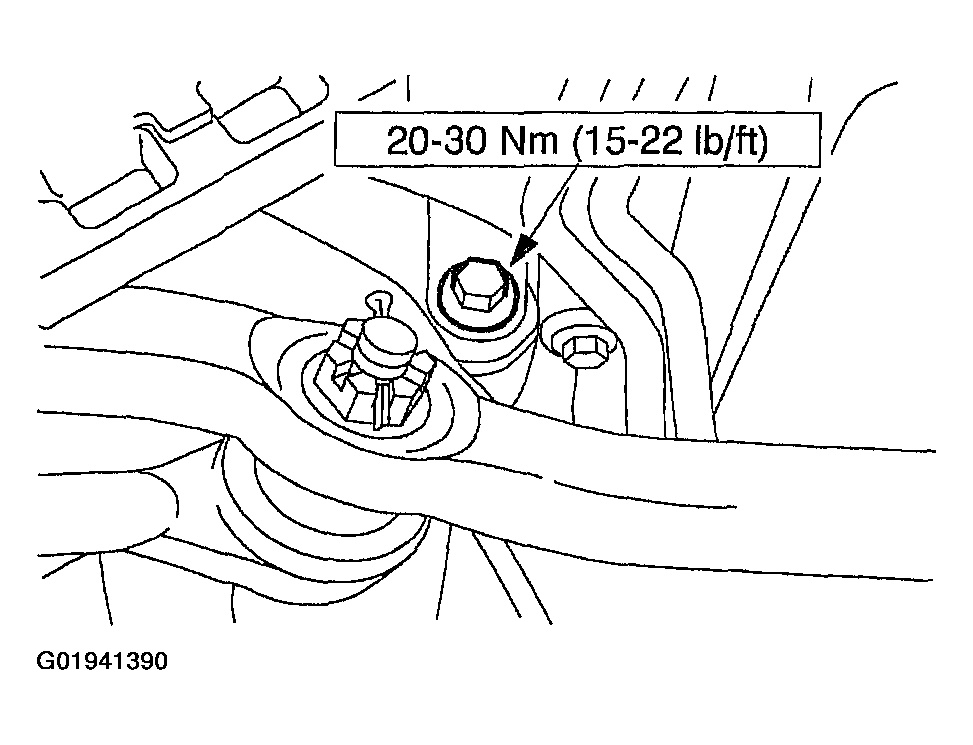

Fig 8: Tightening RH Upper Engine Mount Bolt
Courtesy of FORD MOTOR CO.
Lower the vehicle.

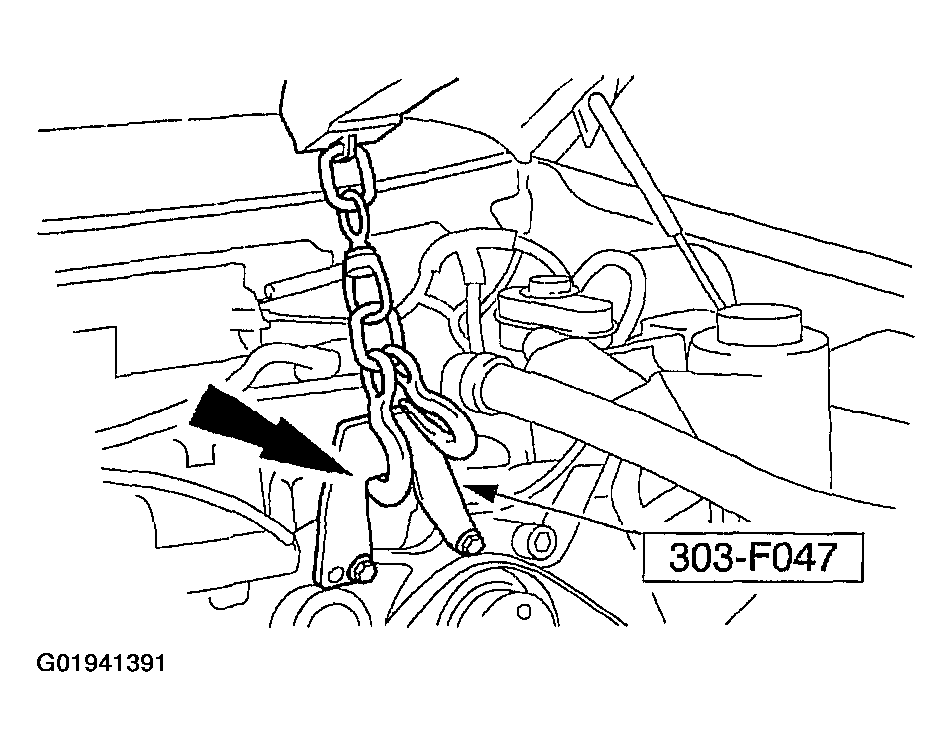

Using the special tool, and a suitable floor crane, raise the engine.

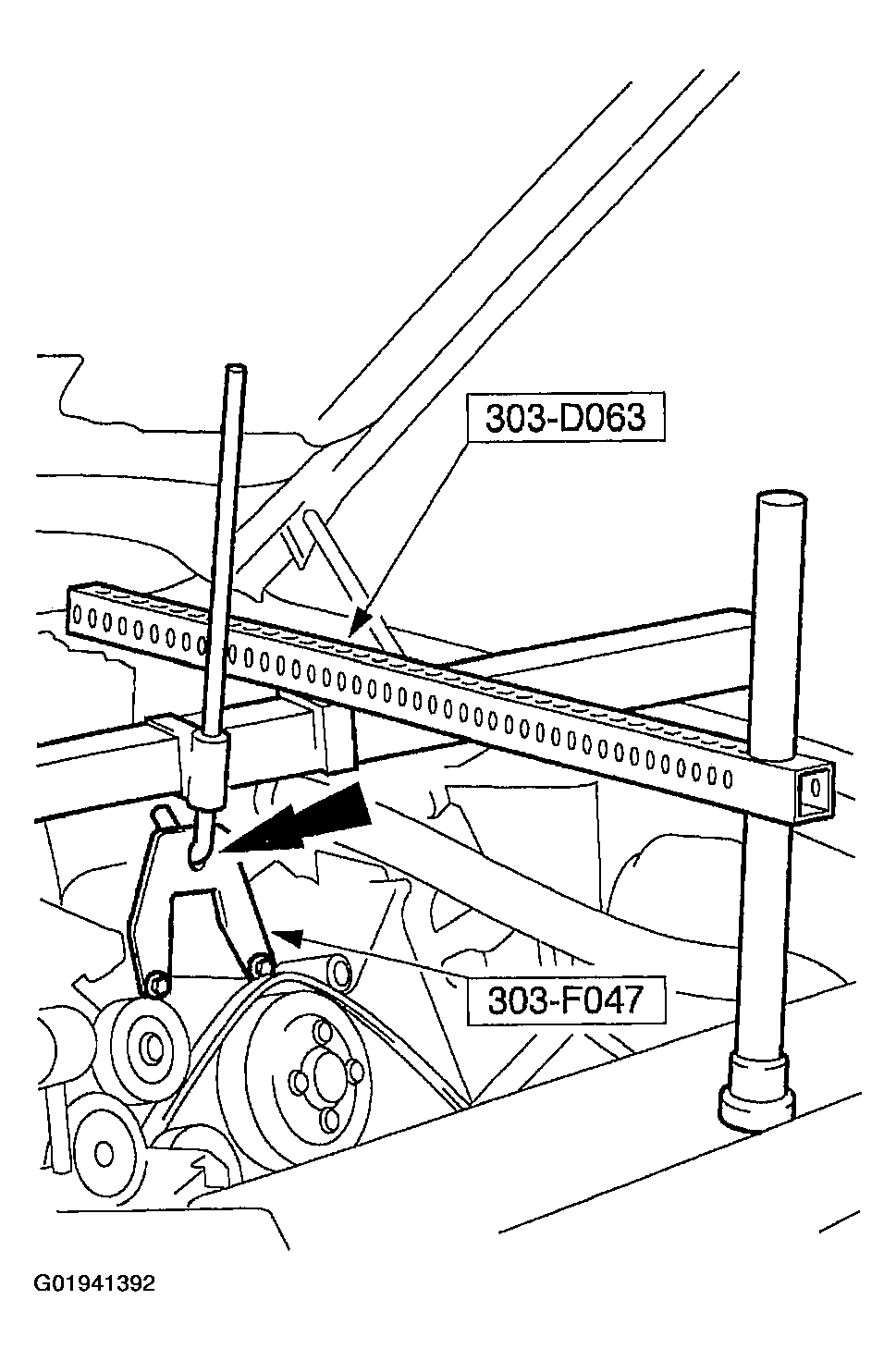

Fig 9: Identifying Modular Engine Lift Bracket
Courtesy of FORD MOTOR CO.
Remove the special tool.

Fig 10: Identifying Engine Support Bar
Courtesy of FORD MOTOR CO.
Tighten the bolt.

Fig 11: Tightening RH Engine Mount Bolt
Courtesy of FORD MOTOR CO.

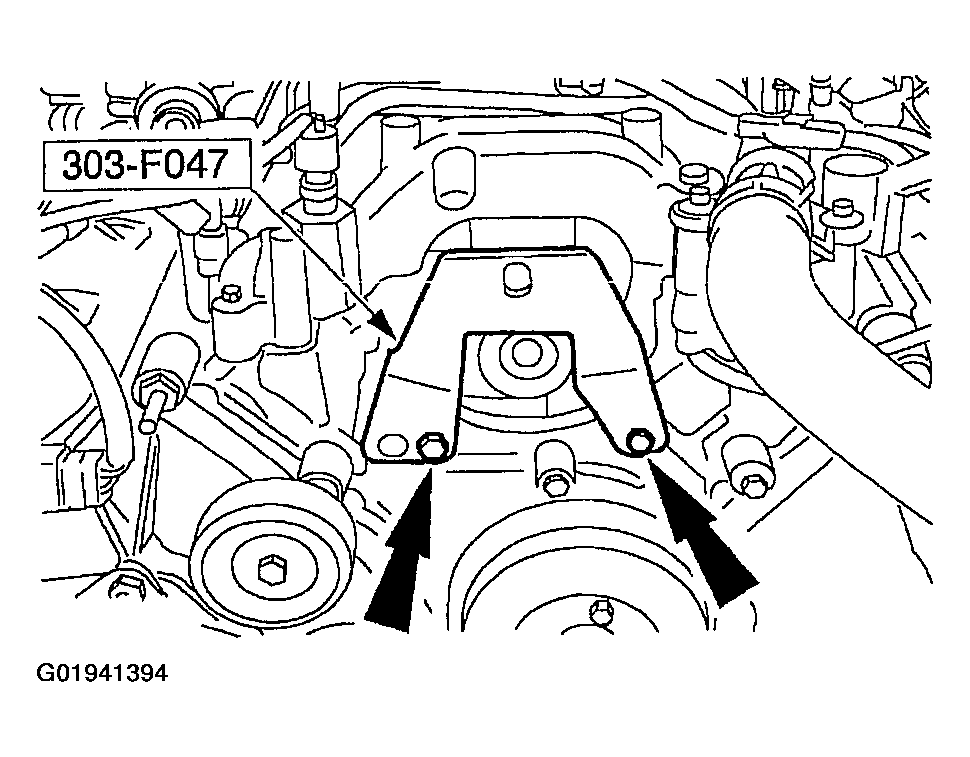

Remove the special tool.

Fig 12: Identifying Bracket
Courtesy of FORD MOTOR CO.
Install the blower motor speed control. For additional information, refer to BLOWER MOTOR SPEED CONTROLLER .
Install the generator. For additional information, refer to GENERATOR .
Install the EGR tube.
Connect the fuel lines. For additional information, refer to FUEL SYSTEM - GENERAL INFORMATION or FUEL SYSTEM - GENERAL INFORMATION - NATURAL GAS .
Install the air cleaner outlet tube.
Install the wiper arm and pivot shaft assembly. For additional information, refer to WIPER MOTOR .
Install the drive belt.
Install the fan motor and shroud assembly.
Fill the crankcase with engine oil.
