In-Vehicle Repair: FLEXPLATE: Installation

  1. Position the flexplate and loosely install the bolts. Tighten the bolts in the sequence shown.

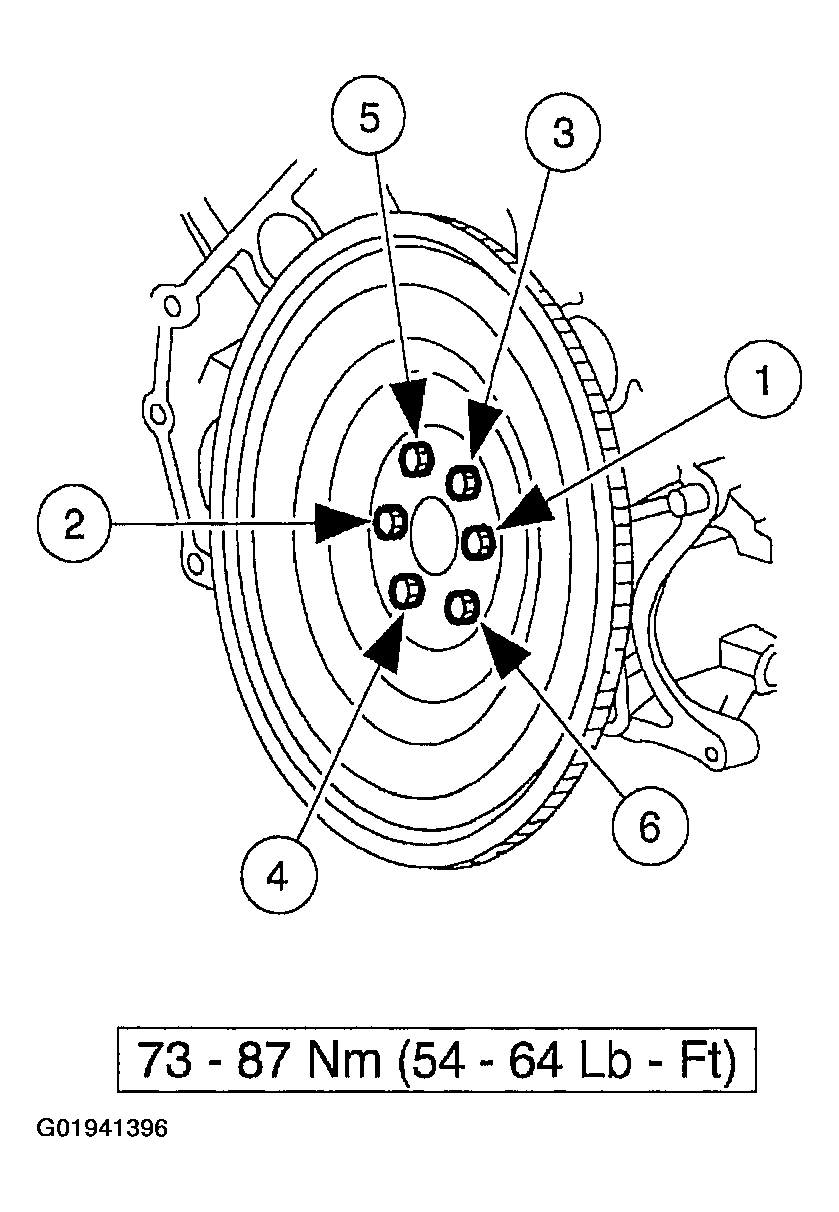

    Fig 1: Identifying Flexplate Bolt Tightening Sequence
    G01941396Courtesy of FORD MOTOR CO.
  2. Install the transmission. For additional information, refer to TRANSMISSION .
