Removal & Installation

  1. Remove the starter. For additional information, refer to STARTER MOTOR .
  2. Suitably support the engine.
  3. Remove the three bolts.

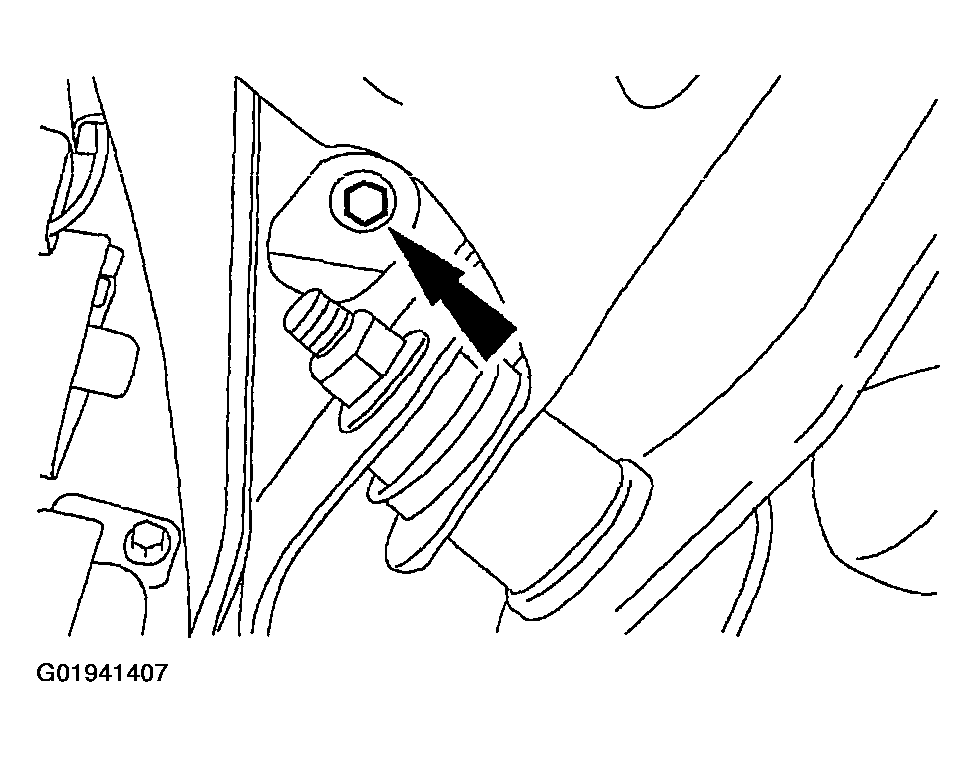

    Fig 1: Identifying RH Engine Mount Bolts
    G01941407Courtesy of FORD MOTOR CO.
  4. Remove the three bolts.

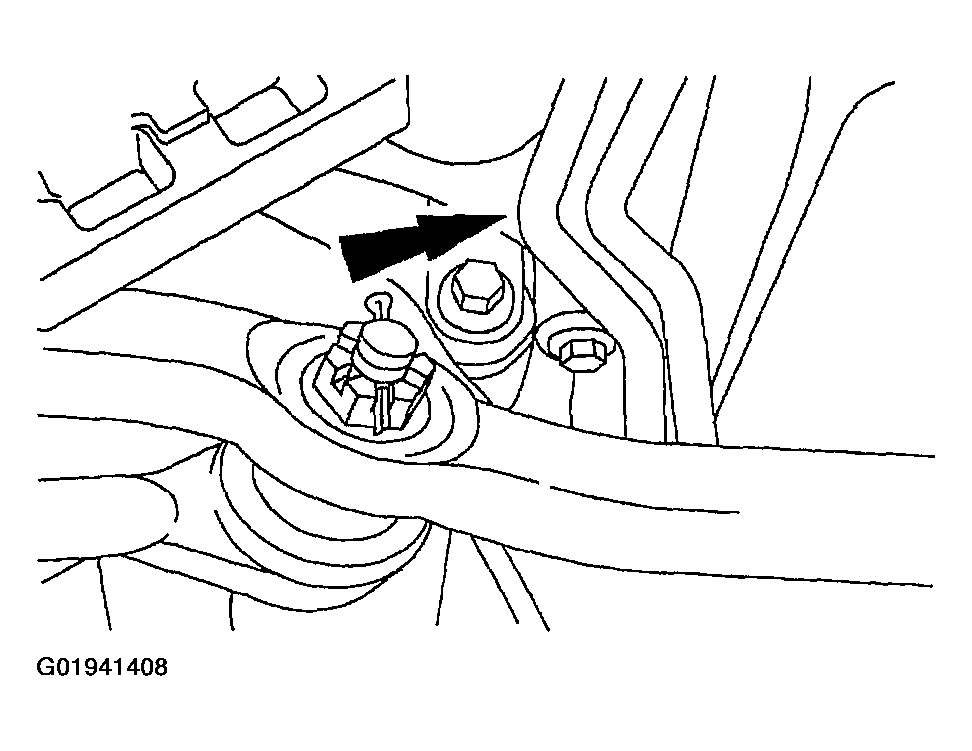

    Fig 2: Identifying Transmission Cooler Line Bracket Bolts
    G01941408Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.

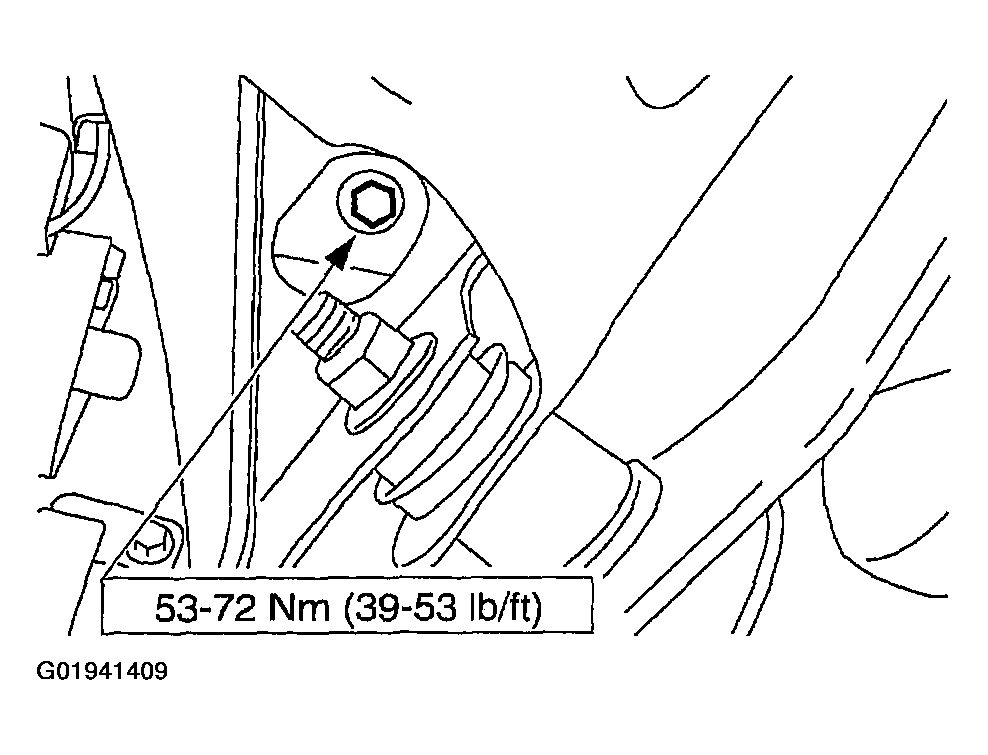

    Fig 3: Tightening RH Engine Mount Bolt
    G01941409Courtesy of FORD MOTOR CO.

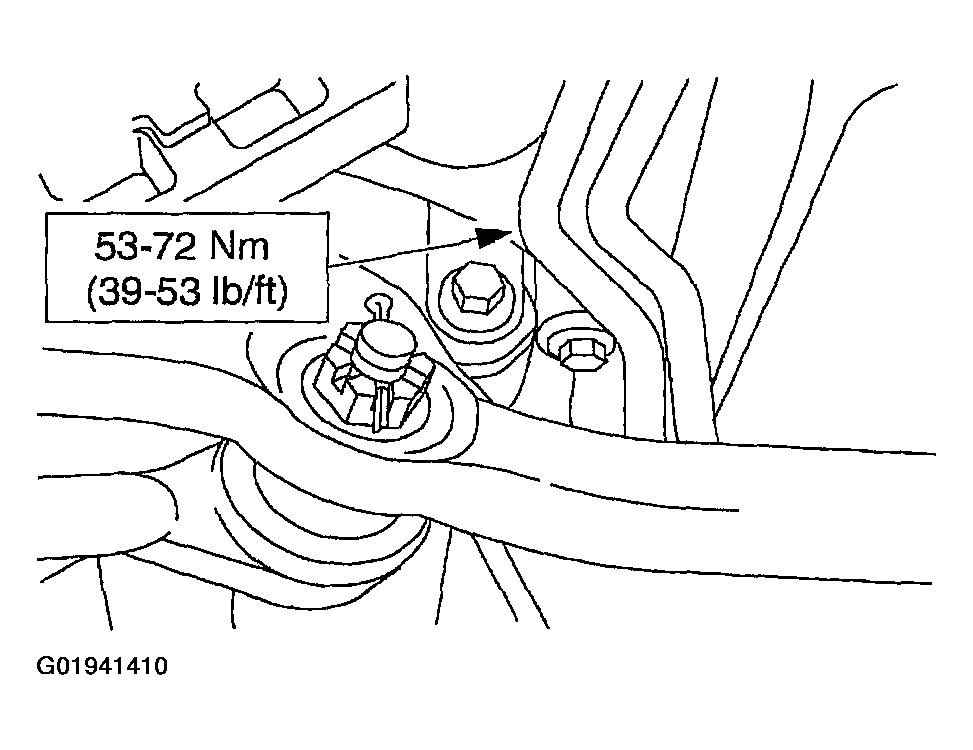

    Fig 4: Tightening Transmission Cooler Line Bracket Bolts
    G01941410Courtesy of FORD MOTOR CO.
