Cylinder Head: Disassembly

CAUTION: Do not remove the camshaft (6250) before removing the roller followers.

CAUTION: Place cylinder head (6049) on a cardboard or wood surface to prevent damage to the joint face.

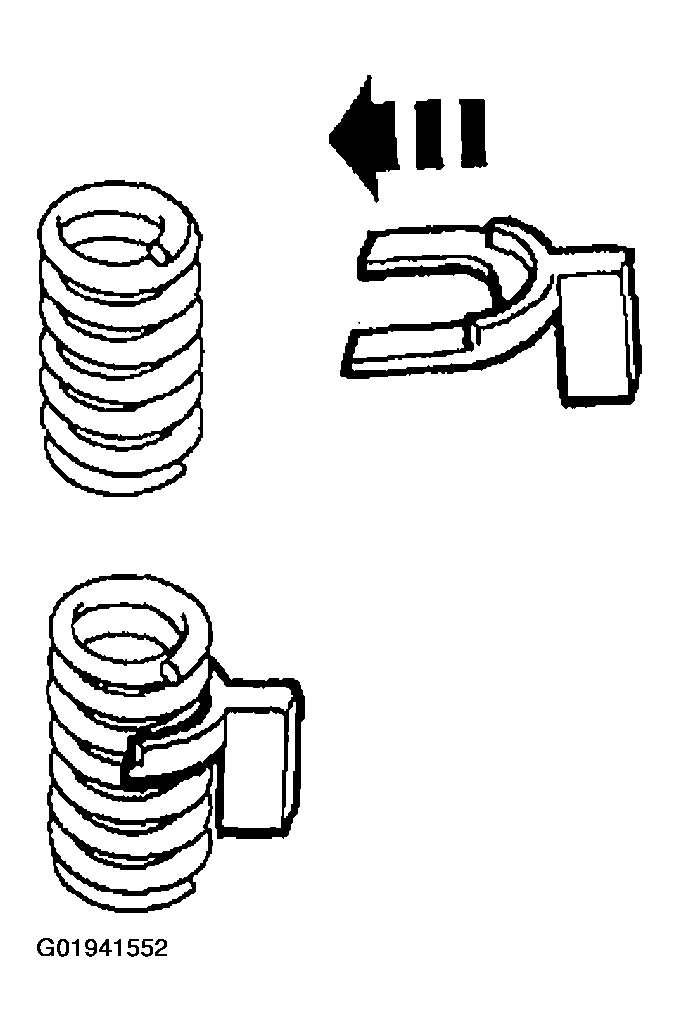

Fig 1: Installing Valve Spring Spacer Between Valve Spring Coils

Courtesy of FORD MOTOR CO.

Install the Valve Spring Spacer between the valve spring coils to prevent valve stem seal damage.

NOTE: The roller followers must be reinstalled in their original locations. Record roller follower locations.

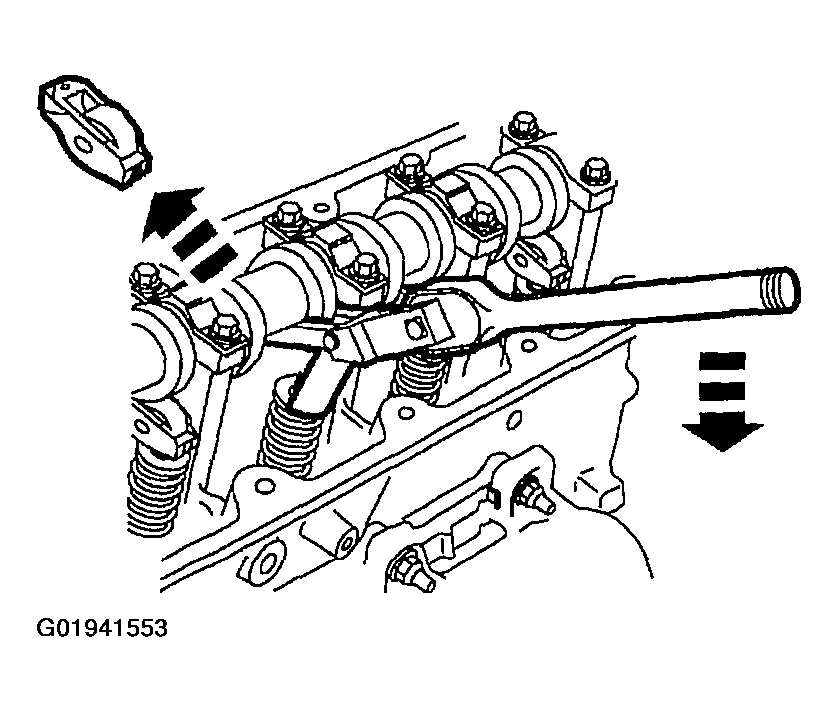

Fig 2: Using Valve Spring Compressor To Remove Roller Followers

Courtesy of FORD MOTOR CO.

Use the Valve Spring Compressor to compress the valve springs, and remove the roller followers.

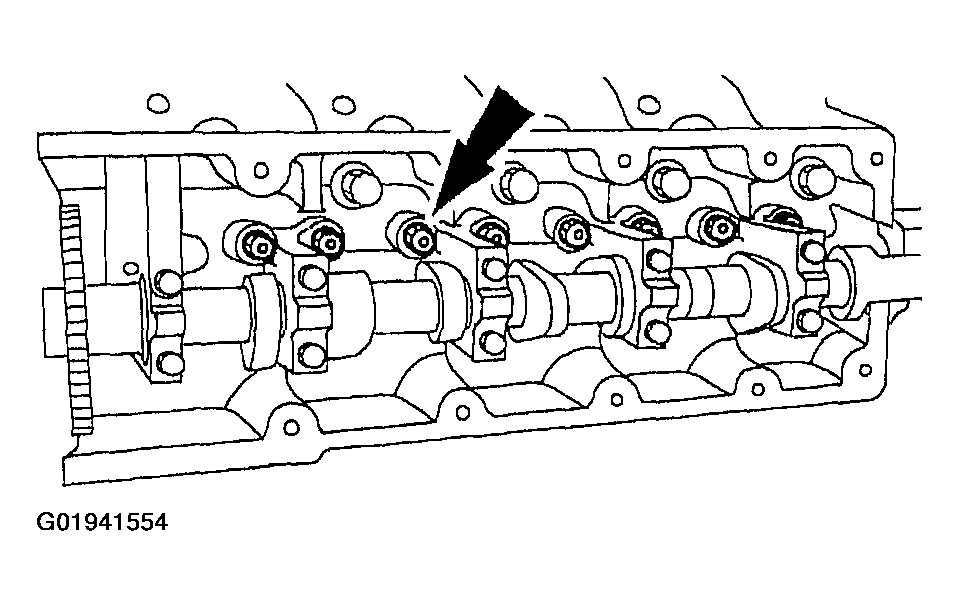

NOTE: The hydraulic lash adjusters must be installed in their original locations. Record hydraulic lash adjuster locations.

Fig 3: Identifying Hydraulic Lash Adjusters

Courtesy of FORD MOTOR CO.

Remove the hydraulic lash adjusters.
Use the Valve Spring Compressor to compress the valve springs.

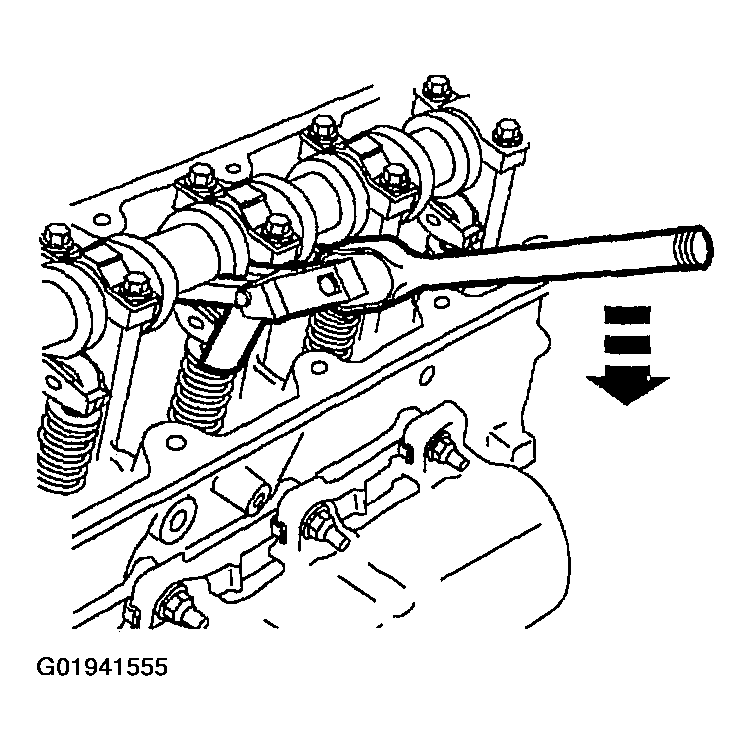

Fig 4: Using Valve Spring Compressor To Compress Valve Springs
Courtesy of FORD MOTOR CO.

CAUTION: Keep valves and valve spring retainer keys (6518) in order so they can be installed in the same positions.

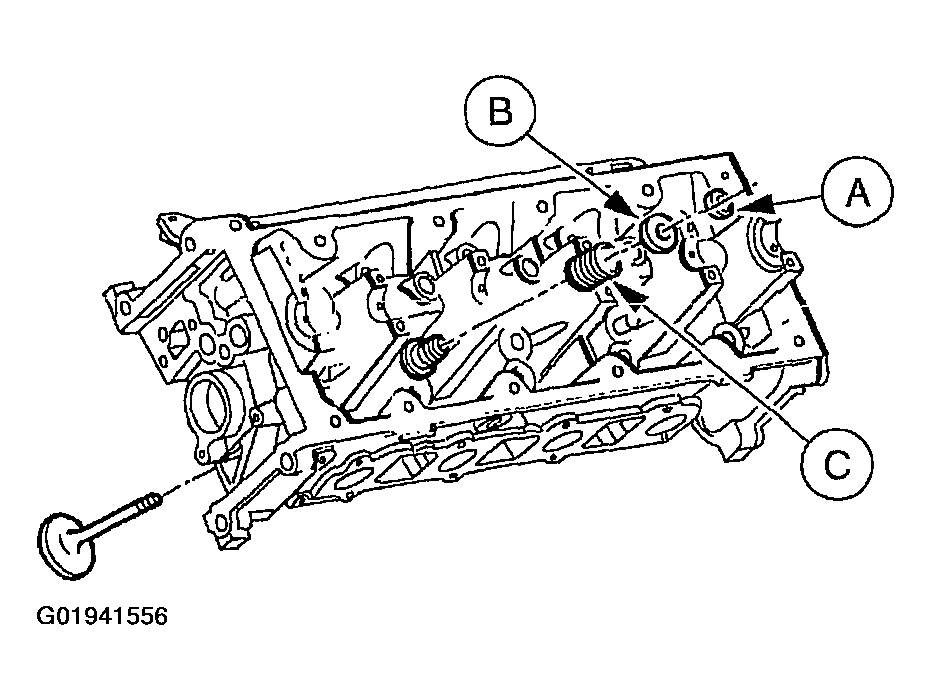

Fig 5: Identifying Valve Spring Retainer Keys, Valve Spring Retainers, Valve Springs & Valves

Courtesy of FORD MOTOR CO.

Remove the (A) valve spring retainer keys, the (B) valve spring retainers (6514), the (C) valve springs, and the valves.

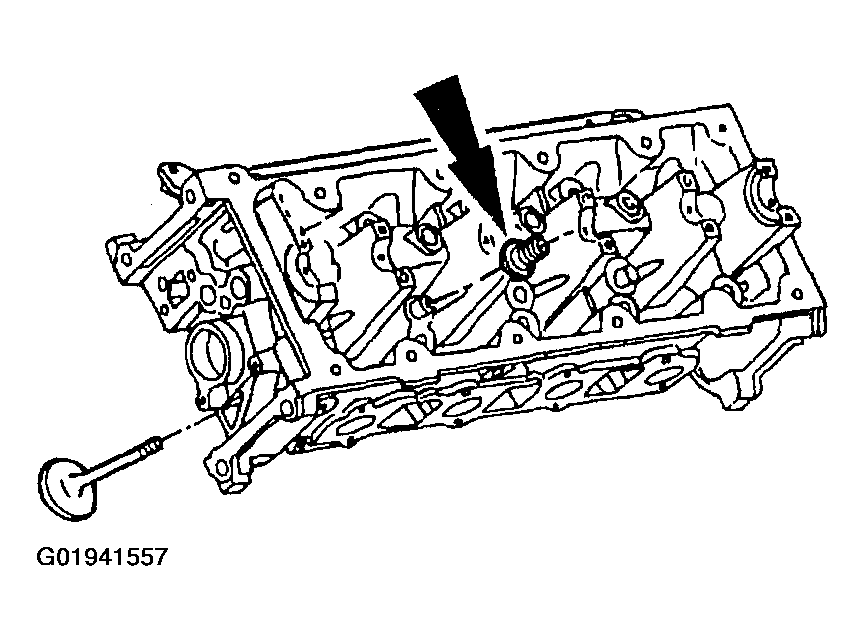

Remove the valve stem seals.

Fig 6: Identifying Valve Stem Seals
Courtesy of FORD MOTOR CO.

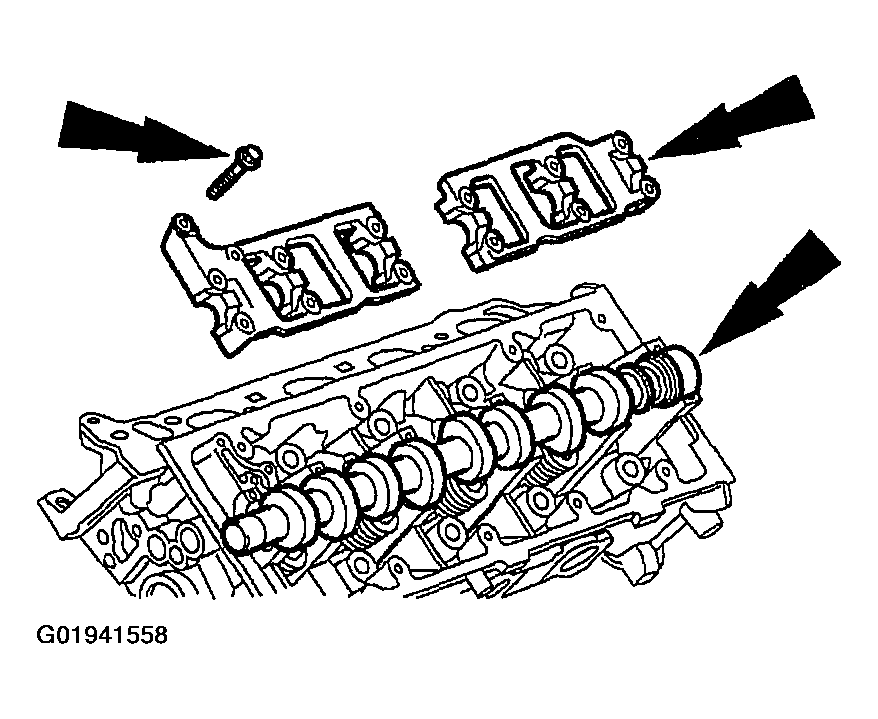

NOTE: The camshaft bearing caps must be installed in their original location. Record camshaft bearing cap location.

Fig 7: Identifying Bearing Caps, Camshaft & Bolts

Courtesy of FORD MOTOR CO.
