Piston - Pin Connecting Rod Assembly, Press Fit: Disassembly

  1. Use an appropriate piston pin tool to press the piston pin out from the connecting rod and piston assembly.

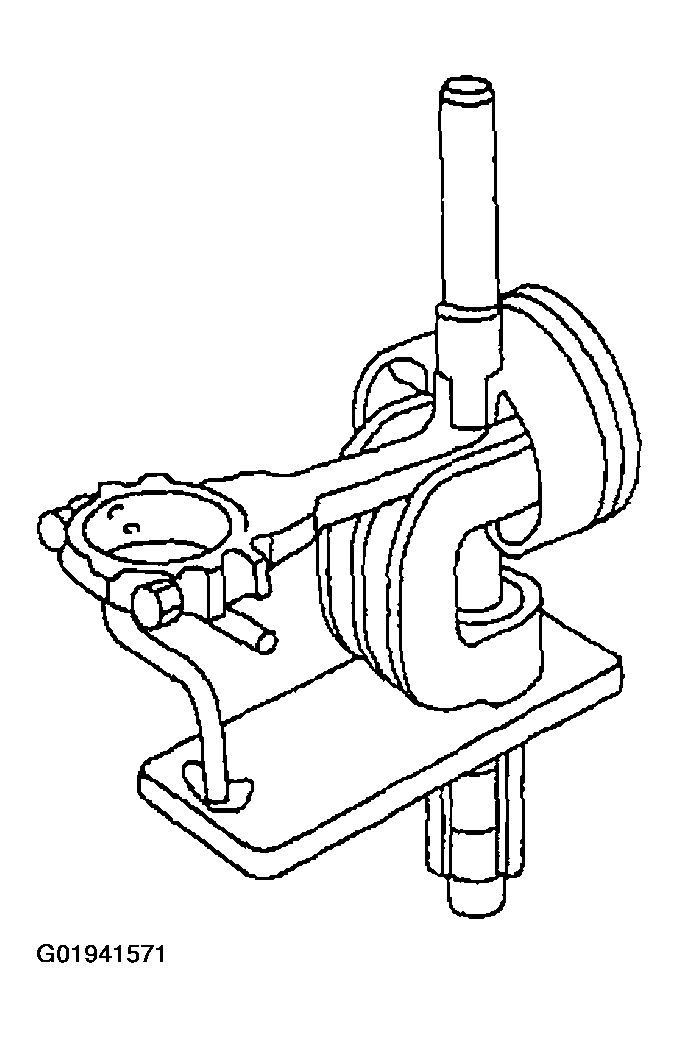

    Fig 1: Pressing Piston Pin Out From Connecting Rod & Piston Assembly
    G01941571Courtesy of FORD MOTOR CO.
  2. Remove the connecting rod (6200) from the piston (6108).

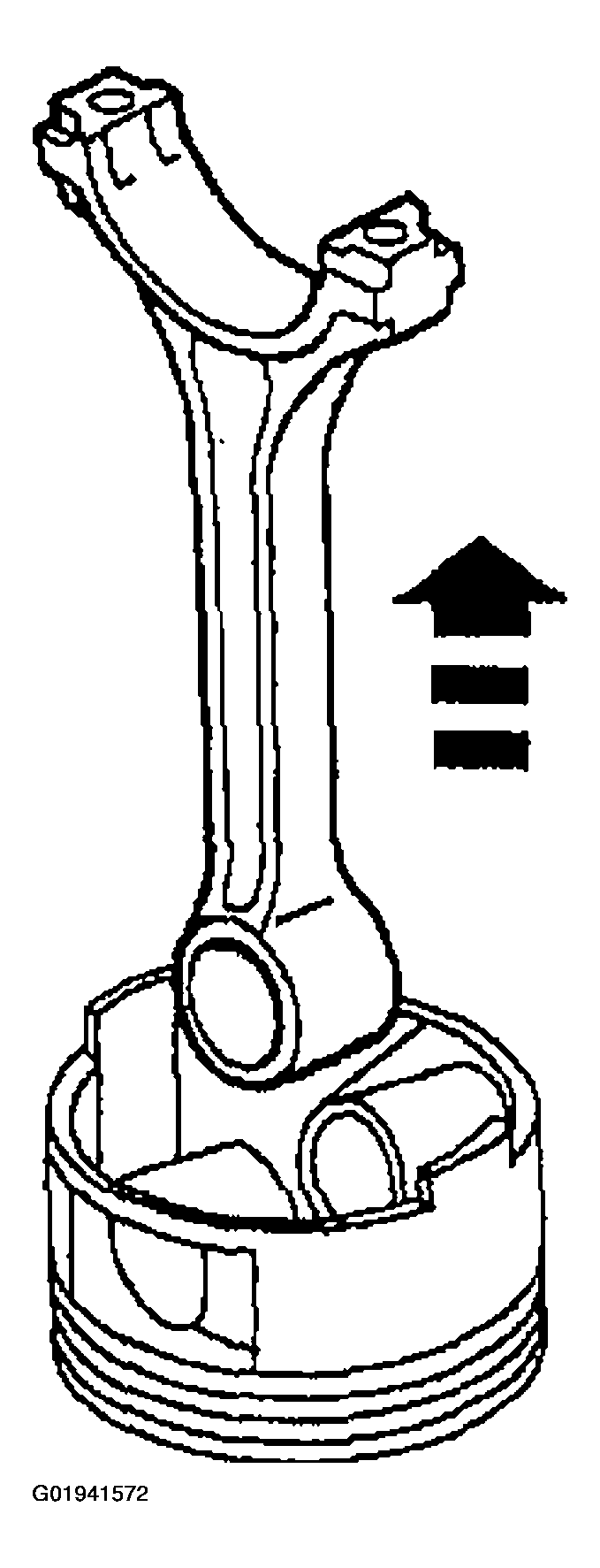

    Fig 2: Removing Connecting Rod From Piston
    G01941572Courtesy of FORD MOTOR CO.
  3. Clean and inspect the connecting rod and piston. For additional information, refer to CONNECTING ROD -- CLEANING and PISTON -- INSPECTION .
