Piston - Pin Connecting Rod Assembly, Floating Pin: Disassembly

  1. Remove the clips.

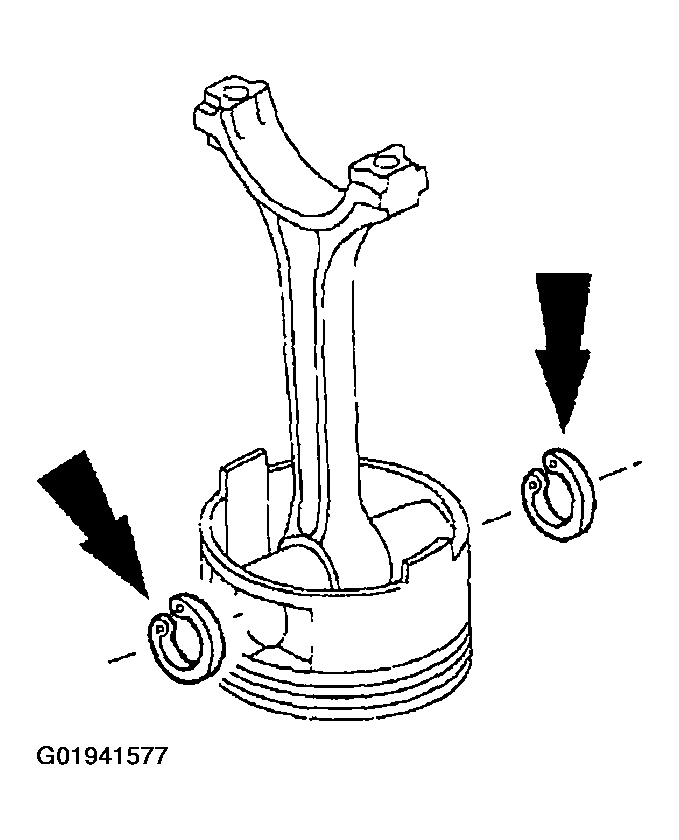

    Fig 1: Identifying Piston Pin Clips
    G01941577Courtesy of FORD MOTOR CO.
  2. Remove the piston pin (6135) from the piston (6108) and connecting rod assembly.

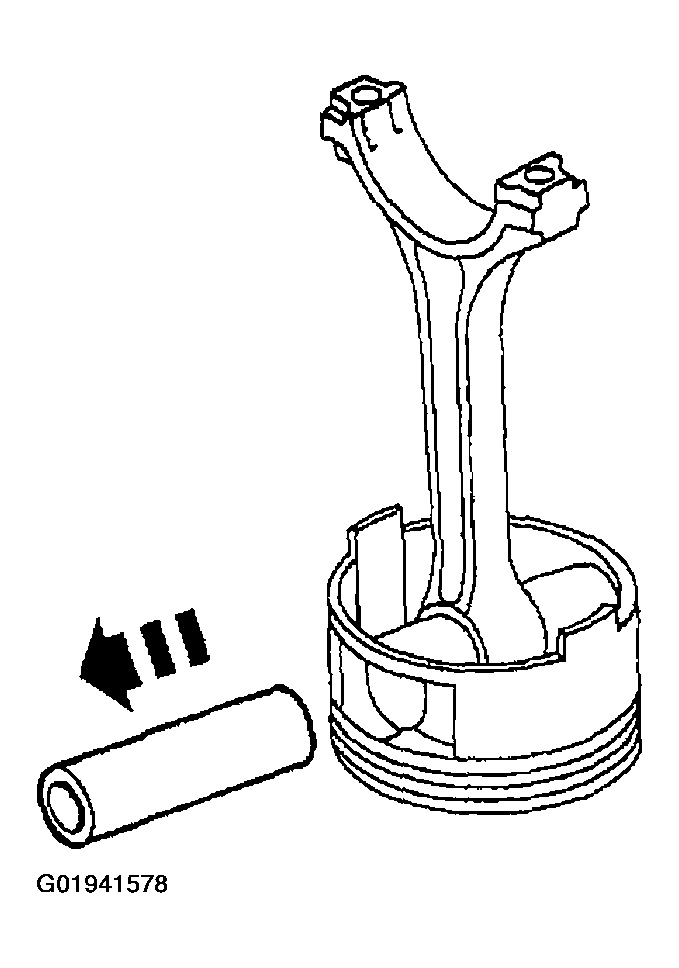

    Fig 2: Identifying Piston Pin & Connecting Rod Assembly
    G01941578Courtesy of FORD MOTOR CO.
  3. Remove the connecting rod (6200) from the piston.

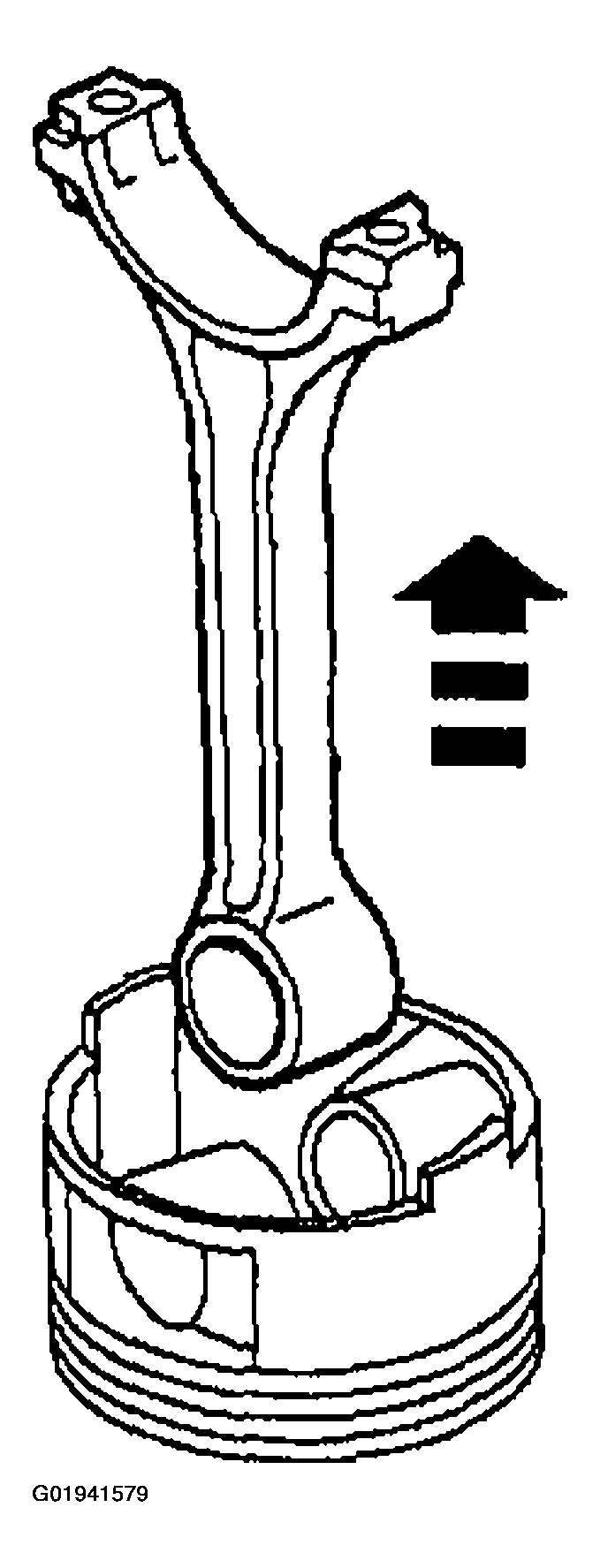

    Fig 3: Remove Connecting Rod From Piston
    G01941579Courtesy of FORD MOTOR CO.
  4. Clean and inspect the piston and connecting rod. For additional information, refer to CONNECTING ROD -- CLEANING and PISTON -- INSPECTION .
