Camshaft Journal - Diameter

  1. Measure each camshaft journal diameter in two directions.
    • If out of specification, install new components as necessary. See CAMSHAFT .

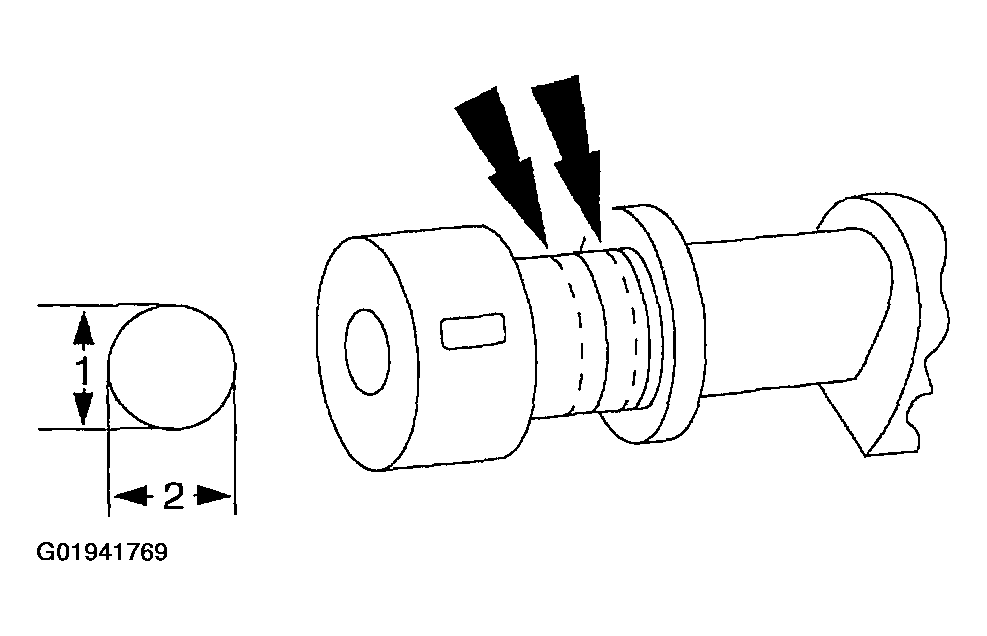

    Fig 1: Identifying Camshaft Journal Diameter
    G01941769Courtesy of FORD MOTOR CO.
