Crankshaft - End Play

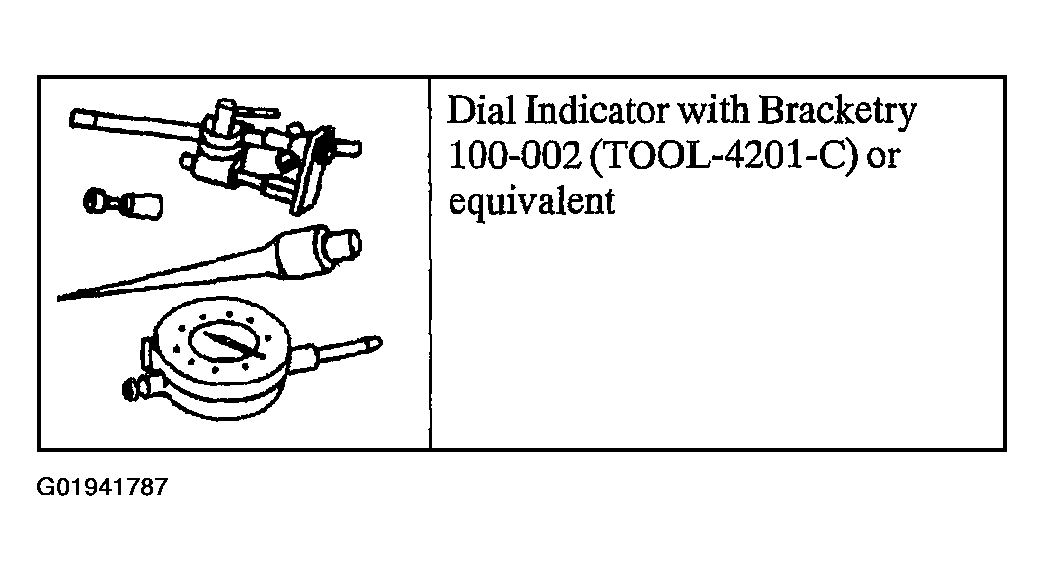

Fig 1: Identifying Dial Indicator With Bracketry
G01941787Courtesy of FORD MOTOR CO.
  1. Measure the crankshaft end play. Use a Dial Indicator with Bracketry to measure crankshaft end play.
  2. Position the crankshaft to the rear of the cylinder block.
  3. Zero the indicator.
  4. Move the crankshaft to the front of the cylinder block. Note and record the crankshaft end play.
    • If crankshaft end play exceeds specifications, install a new crankshaft thrust washer (6334) or crankshaft thrust main bearing (6337). Refer to SPECIFICATIONS .

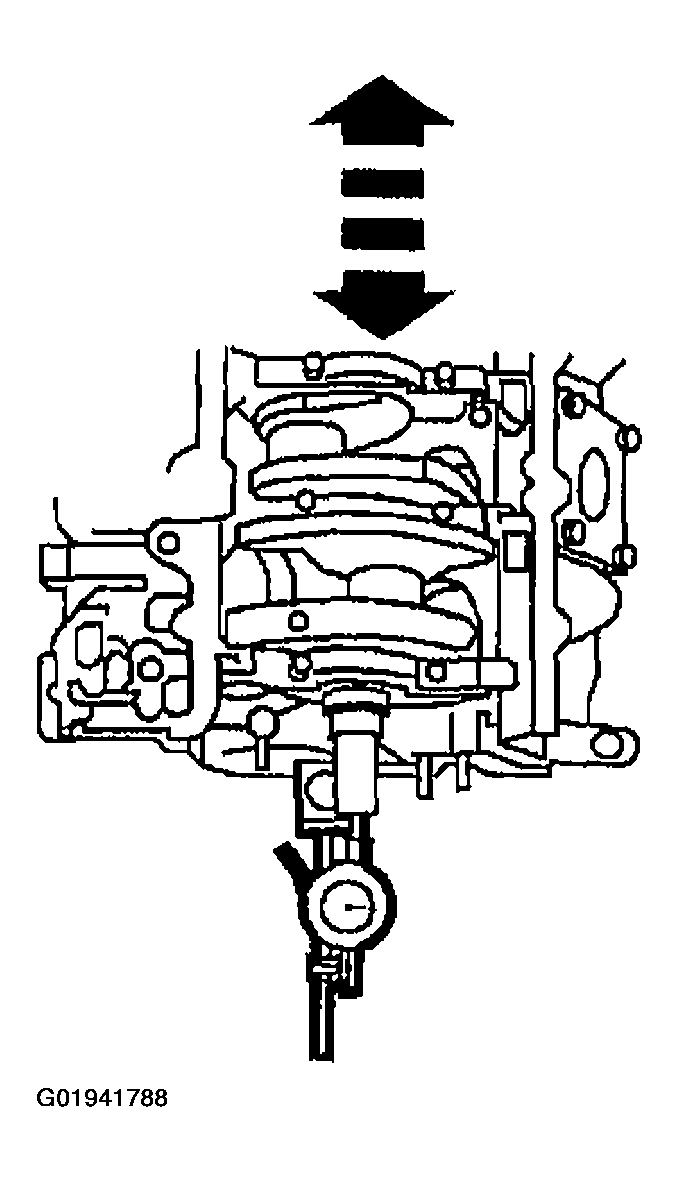

    Fig 2: Measuring Crankshaft End Play
    G01941788Courtesy of FORD MOTOR CO.
