Piston - Ring-To-Groove Clearance

Inspect the piston for ring land damage or accelerated wear.

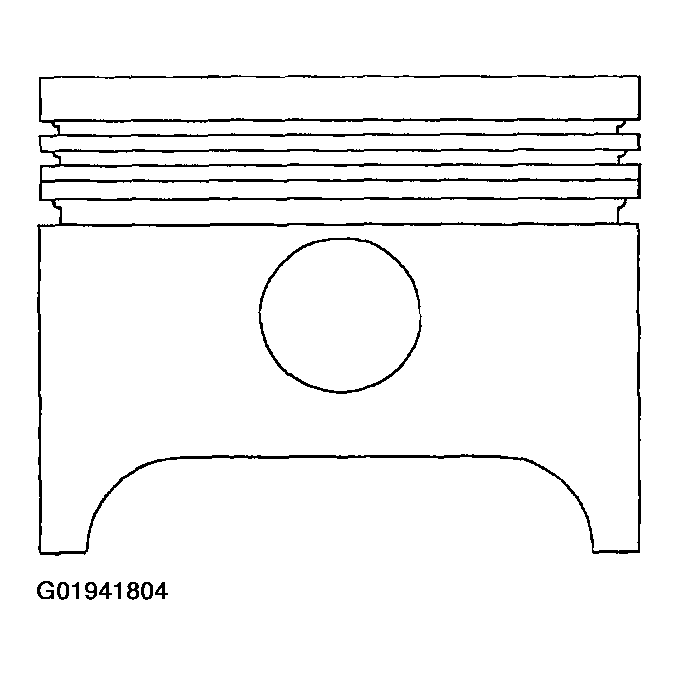

Fig 1: Inspecting Piston For Ring Land Damage Or Accelerated Wear
Courtesy of FORD MOTOR CO.
Measure the piston ring-to-groove clearance.
- Refer to SPECIFICATIONS .
- If out of specification, install new components as necessary.

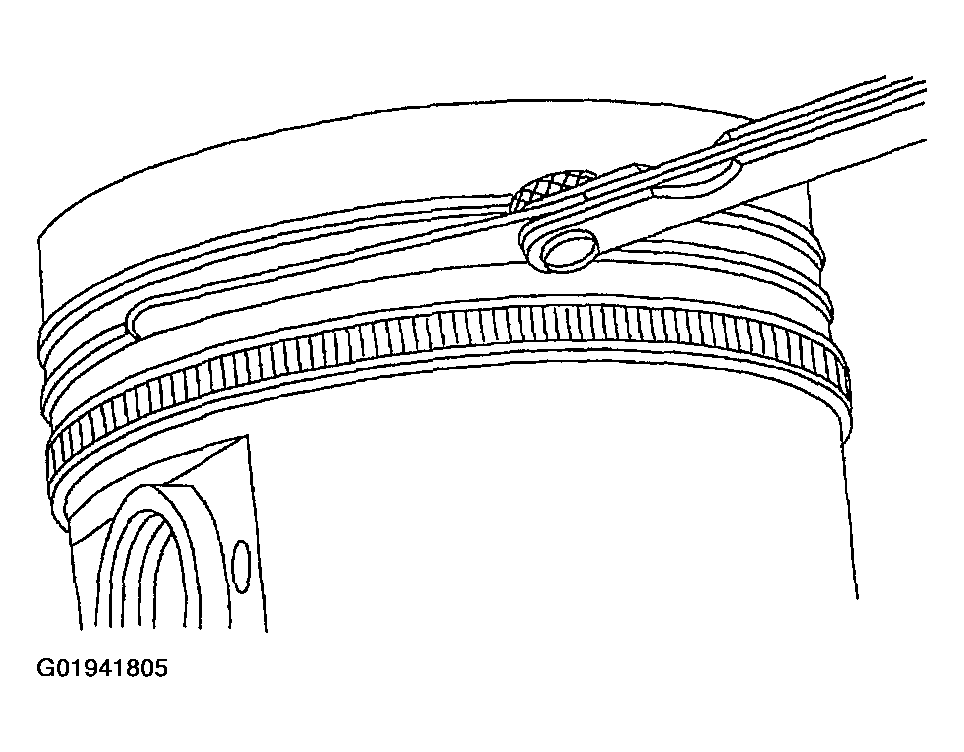

Fig 2: Measuring Piston Ring-To-Groove Clearance
Courtesy of FORD MOTOR CO.
