Cup Type

    CAUTION: Use care during this procedure so as not to disturb or distort the cup sealing surface.
    CAUTION: When installed, the flanged edge must be below the chamfered edge of the bore to effectively seal the bore.

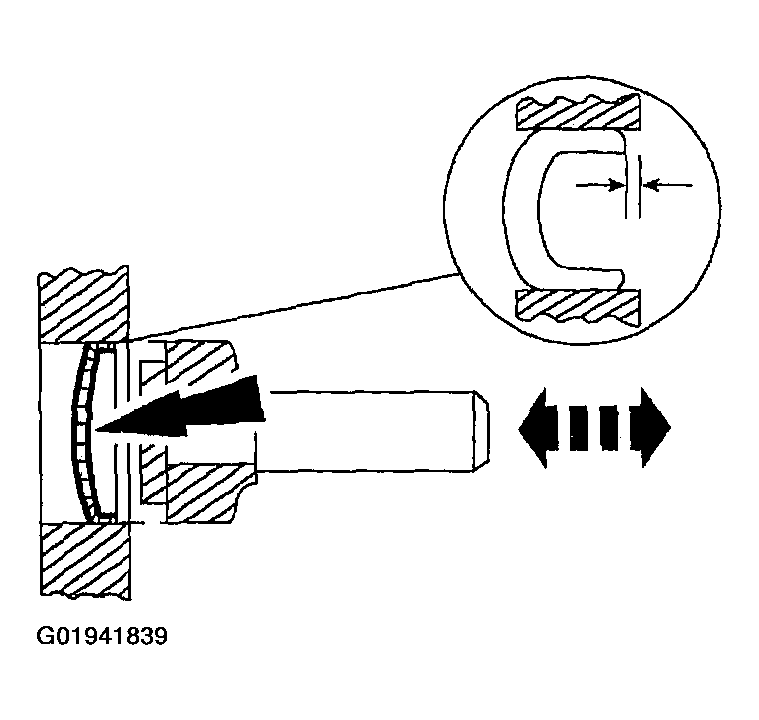

    Fig 1: Installing Cup-Type Cylinder Block Core
    G01941839Courtesy of FORD MOTOR CO.
  1. Use a tool suitable to seat the cup-type cylinder block core plug.
