Pcm Connector End Views

NOTE: To identify PCM connectors, refer to illustrations. See Fig 1 or Fig 2 .
Fig 1: Identifying PCM Connector Terminals (104-Pin)
G96F31315Courtesy of FORD MOTOR CO.

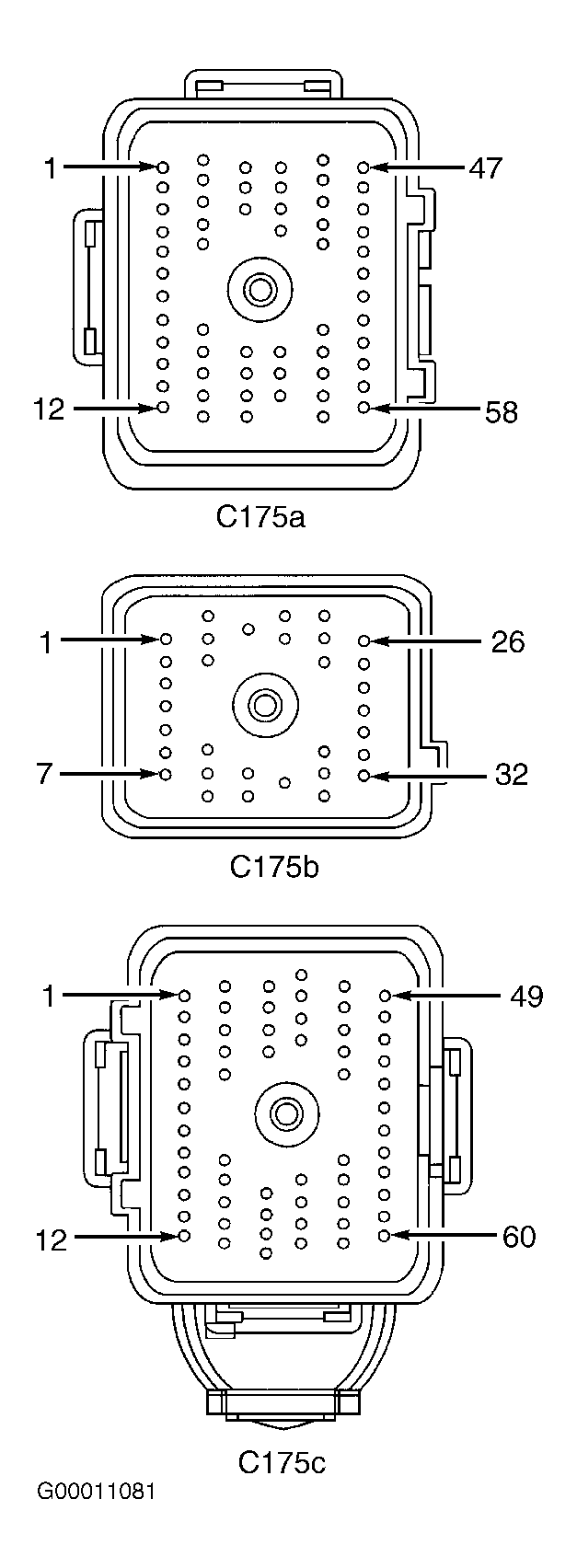

Fig 2: Identifying PCM Connector Terminals (150-Pin)
G00011081Courtesy of FORD MOTOR CO.
