Removal & Installation

Disconnect negative battery cable. Remove upper trunk rack mounted fuel tank. See REMOVAL & INSTALLATION (UPPER TRUNK RACK MOUNTED)  under FUEL TANKS. Remove 9 vapor vent box bolts. See Fig 1 .

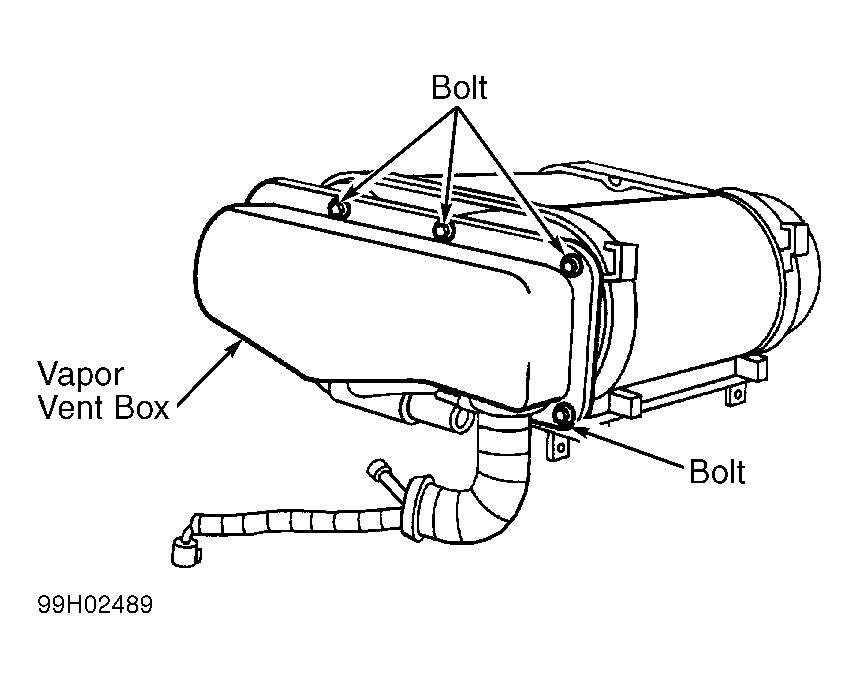

Fig 1: Identifying Vapor Vent Box
G99H02489Courtesy of FORD MOTOR CO.
