Firing Order & Timing Marks: 3.9L

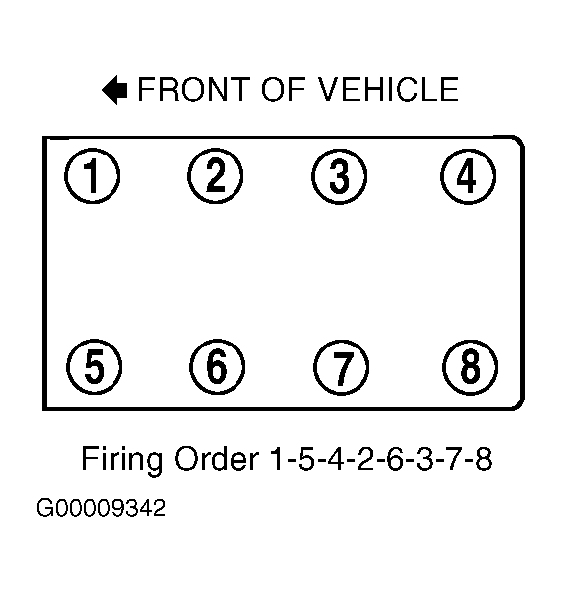

Fig 1: Identifying Firing Order (3.9L)

G00009342

Courtesy of FORD MOTOR CO.
