Firing Order & Timing Marks: 4.6L

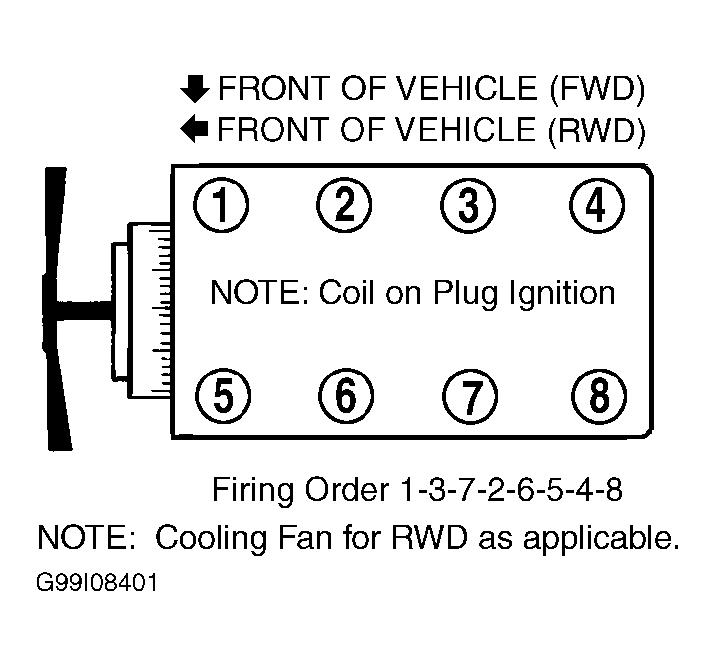

Fig 1: Identifying Firing Order & Timing Marks (4.6L)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
