Unable To Vent Fuel Tanks Or Fuel Lines: Pre-Inspection
NOTE:

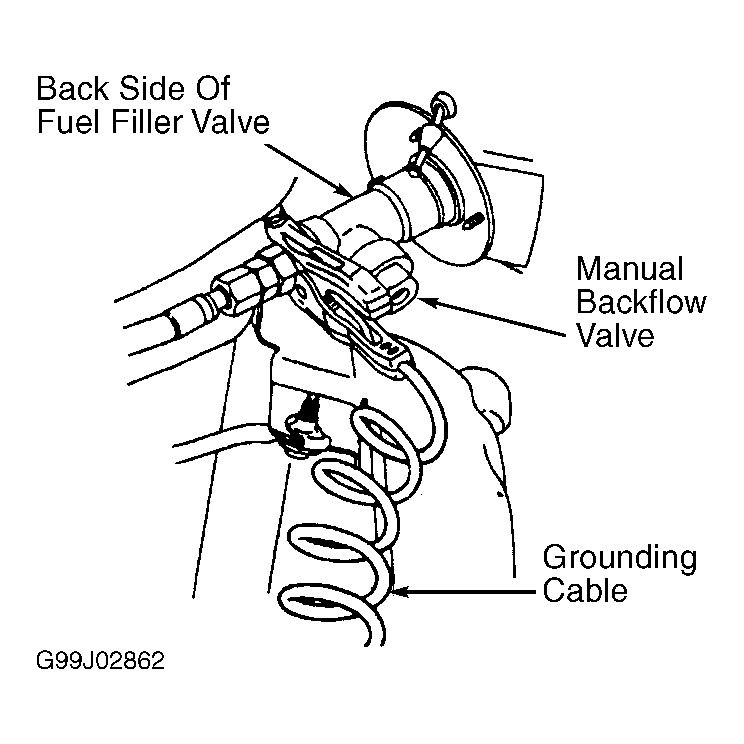

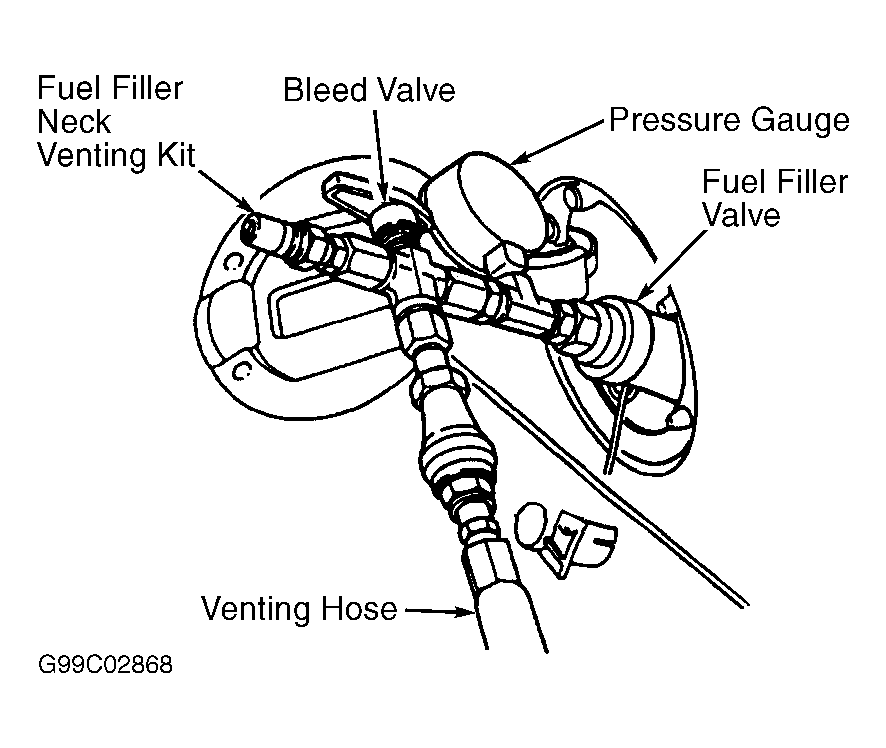

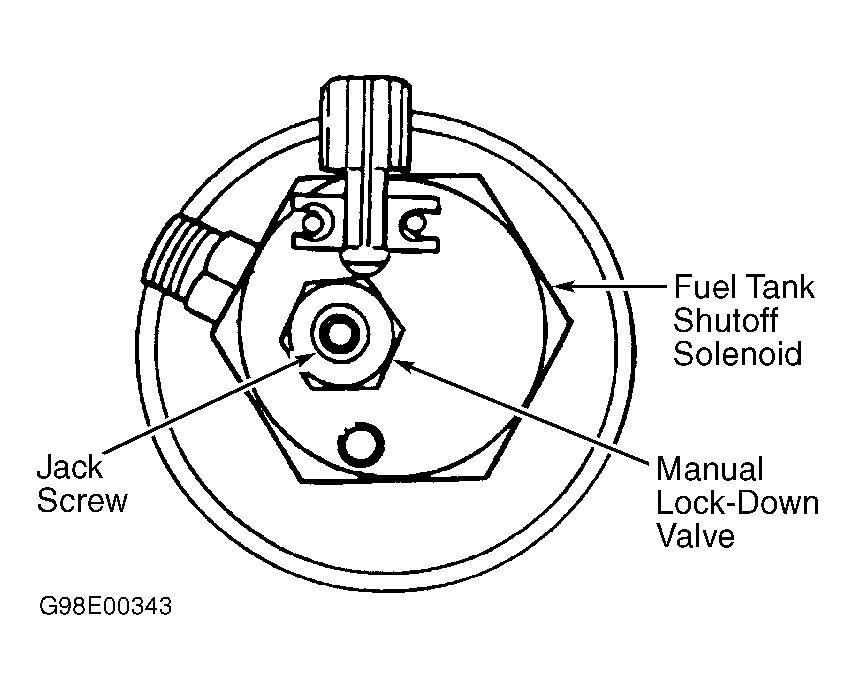

A DVOM, New Generation Star (NGS) tester and NGV Pressure and Venting Kit (134-00114) are necessary to perform the following test procedures. NGV pressure and venting kit includes Rotunda Fuel Filler Neck Venting Kit (134-00117), Grounding Cable (134-00121), Electrical Harness for Venting Tanks (134-00120) and Manual Override (134-00050). See Fig 1-Fig 3
.
Visually inspect fuel system for damaged fuel tanks, solenoids, fuel lines/hoses, fuses, relays and loose or corroded connectors. If any faults are indicated, repair as necessary. If no faults are indicated and system will not vent, proceed with TESTING (CROWN VICTORIA) , TESTING (ECONOLINE) or TESTING (F150) .
