Vacuum Hose Diagram(S): LS
CALIBRATION-TO-VACUUM DIAGRAM REFERENCE
| Application/Calibration No. | See | |
|---|---|---|

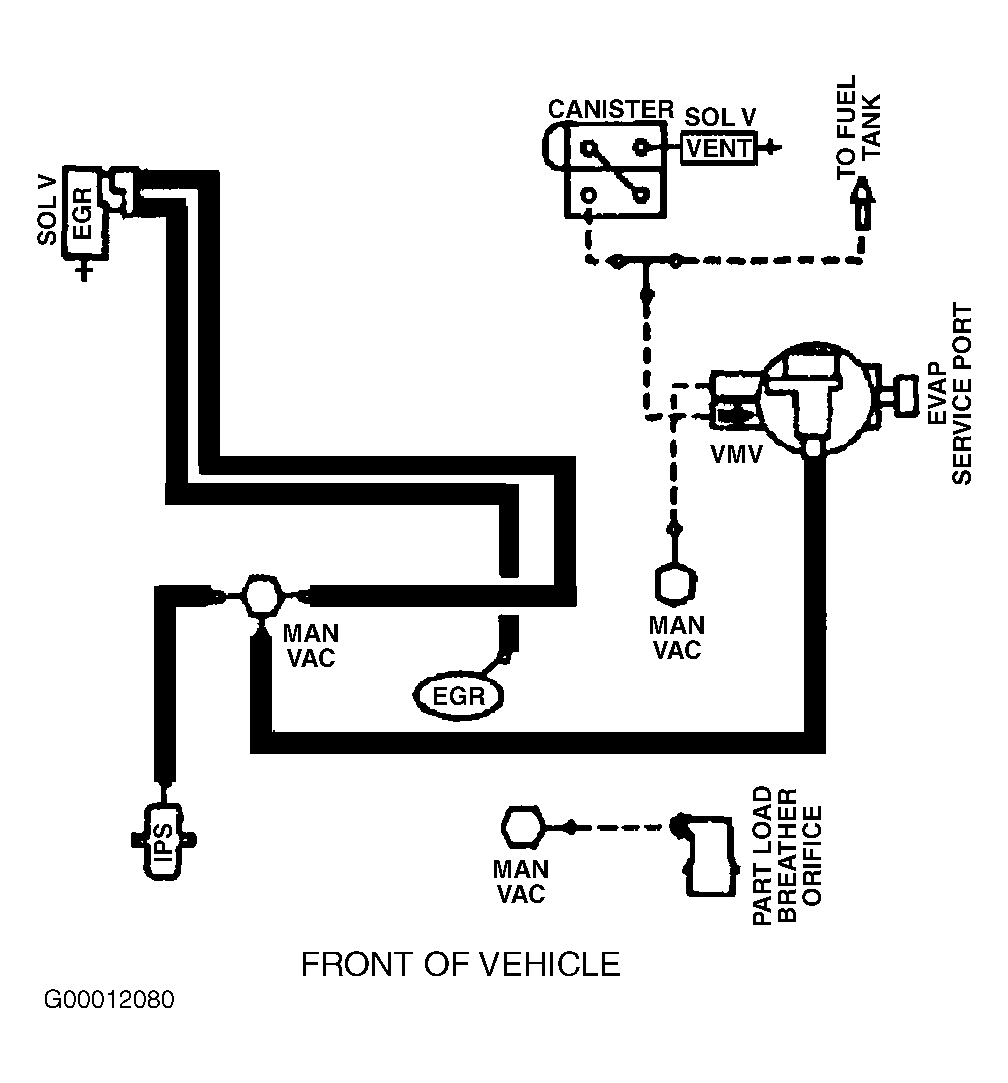

| 3.0L | ||
| 2-LQ1-6B0-510 (CCG0), 2-LQ1-6B0-510 (CCG1), 2-LQ1-6B0-510 (LKO2), 2-LQ1-6B0-510 (LKO3), 2-LQ1-6B0-510 (LKO4), 2-LQ1-6B0-511 (CCG0), 2-LQ1-6B0-511 (CCG1), 2-LQ1-6B0-511 (LKO2), 2-LQ1-6B0-511 (LKO3), 2-LQ1-6B0-511 (LKO4), 2-LQ1-6B0-512 (CCG0), 2-LQ1-6B0-512 (CCG1), 2-LQ1-6B0-512 (LKO2), 2-LQ1-6B0-512 (LKO3), 2-LQ1-6B0-512 (LKO4), 2-LQ1-6S0-510 (KGV2), 2-LQ1-6S0-510 (KGV3), 2-LQ1-6S0-510 (KGV4), 2-LQ1-6S0-510 (UAH0), 2-LQ1-6S0-510 (UAH1), 2-LQ1-6S0-511 (KGV2), 2-LQ1-6S0-511 (KGV3), 2-LQ1-6S0-511 (KGV4), 2-LQ1-6S0-511 (UAH0), 2-LQ1-6S0-511 (UAH1), 2-LQ1-6S0-512 (KGV2), 2-LQ1-6S0-512 (KGV3), 2-LQ1-6S0-512 (KGV4), 2-LQ1-6S0-512 (UAH0), 2-LQ1-6S0-512 (UAH1), 2-LQ1-7B0-500 (CCG0), 2-LQ1-7B0-500 (CCG1), 2-LQ1-7B0-505 (CCG0), 2-LQ1-7B0-505 (CCG1), 2-LQ1-7S0-500 (UAH0), 2-LQ1-7S0-500 (UAH1), 2-LQ1-7S0-505 (UAH0), 2-LQ1-7S0-505 (UAH1), 2-LQ2-6S0-506 (YCO1), 2-LQ2-6S0-506 (YCO2), 2-LQ2-6S0-506 (YCO3), 2-LQ2-6S0-506 (YCO4), 2-LQ2-6S0-506 (YCO5), 2-LQ2-6S0-507 (YCO1), 2-LQ2-6S0-507 (YCO2), 2-LQ2-6S0-507 (YCO3), 2-LQ2-6S0-507 (YCO4), 2-LQ2-6S0-507 (YCO5), 2-LQ2-6S0-510 (YCO1), 2-LQ2-6S0-510 (YCO2), 2-LQ2-6S0-510 (YCO3), 2-LQ2-6S0-510 (YCO4), 2-LQ2-6S0-510 (YCO5), 2-LQ2-6S0-511 (YCO1), 2-LQ2-6S0-511 (YCO2), 2-LQ2-6S0-511 (YCO3), 2-LQ2-6S0-511 (YCO4), 2-LQ2-6S0-511 (YCO5), 2-LQ2-6S0-512 (YCO1), 2-LQ2-6S0-512 (YCO2), 2-LQ2-6S0-512 (YCO3), 2-LQ2-6S0-512 (YCO4) & 2-LQ2-6S0-512 (YCO5) | Fig 1 | |
| 3.9L | ||

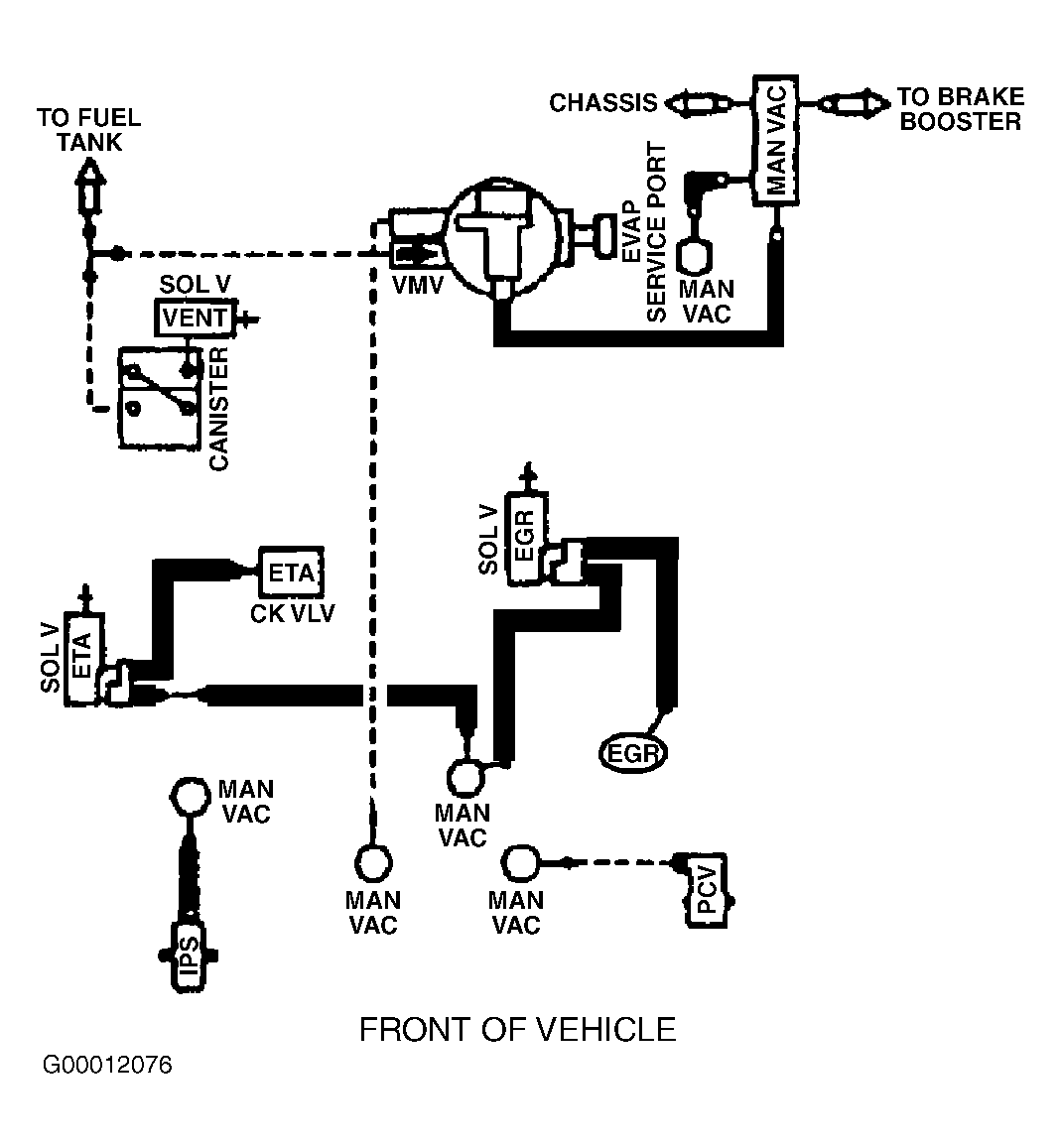

| 2-LQ1-8B0-510 (STH2), 2-LQ1-8B0-511 (STH3), 2-LQ1-8S0-510 (SEC2), 2-LQ1-8S0-511 (SEC3), 2-LQ1-9B0-500 (PKE0) & 2-LQ1-9S0-500 (PFJ0) | Fig 2 | |
