Town Car

CALIBRATION-TO-VACUUM DIAGRAM REFERENCE

Application/Calibration No. See
1-VC1-PB0-506 (YTJ2) & 1-VC1-PH0-506 (XZZ2) (1) Fig 1
(1) Includes limousine models over 4500/7500 Gross Vehicle Weight (GVW).

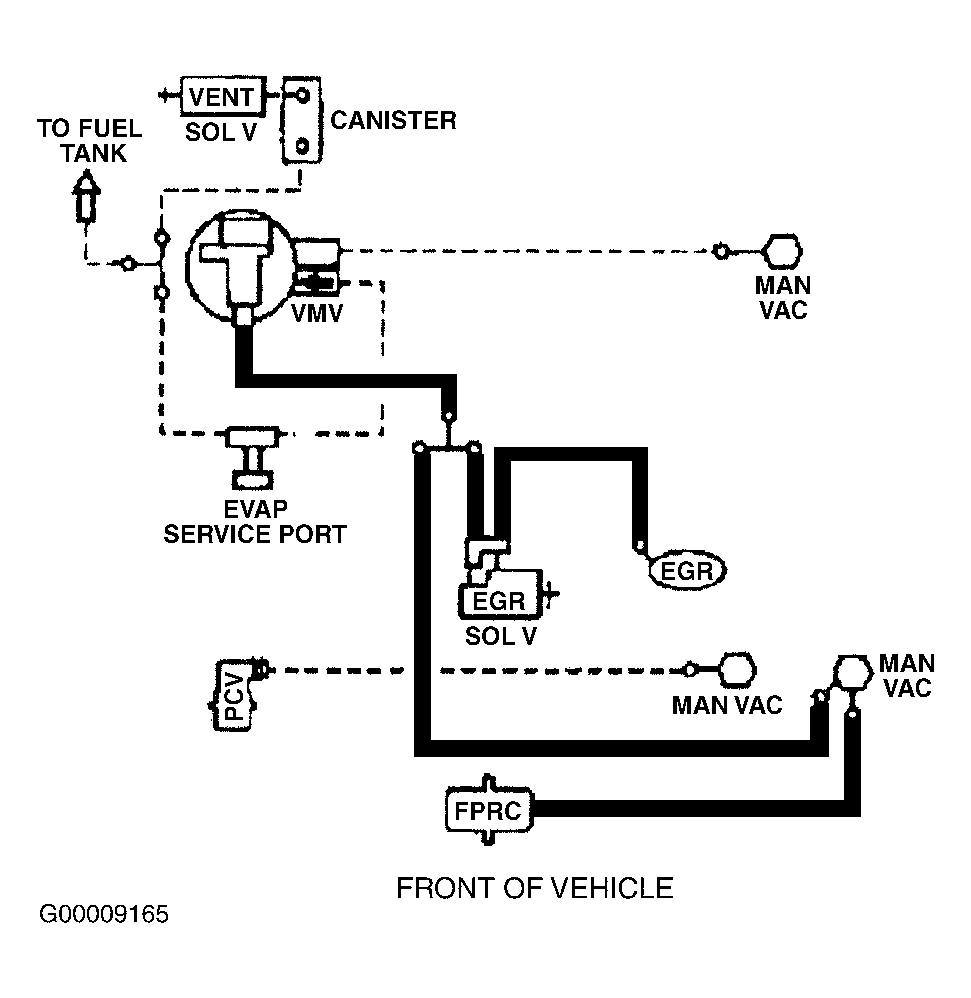

Fig 1: Vacuum Diagram - Town Car
G00009165Courtesy of FORD MOTOR CO.
