Special Tool(s) & Materials

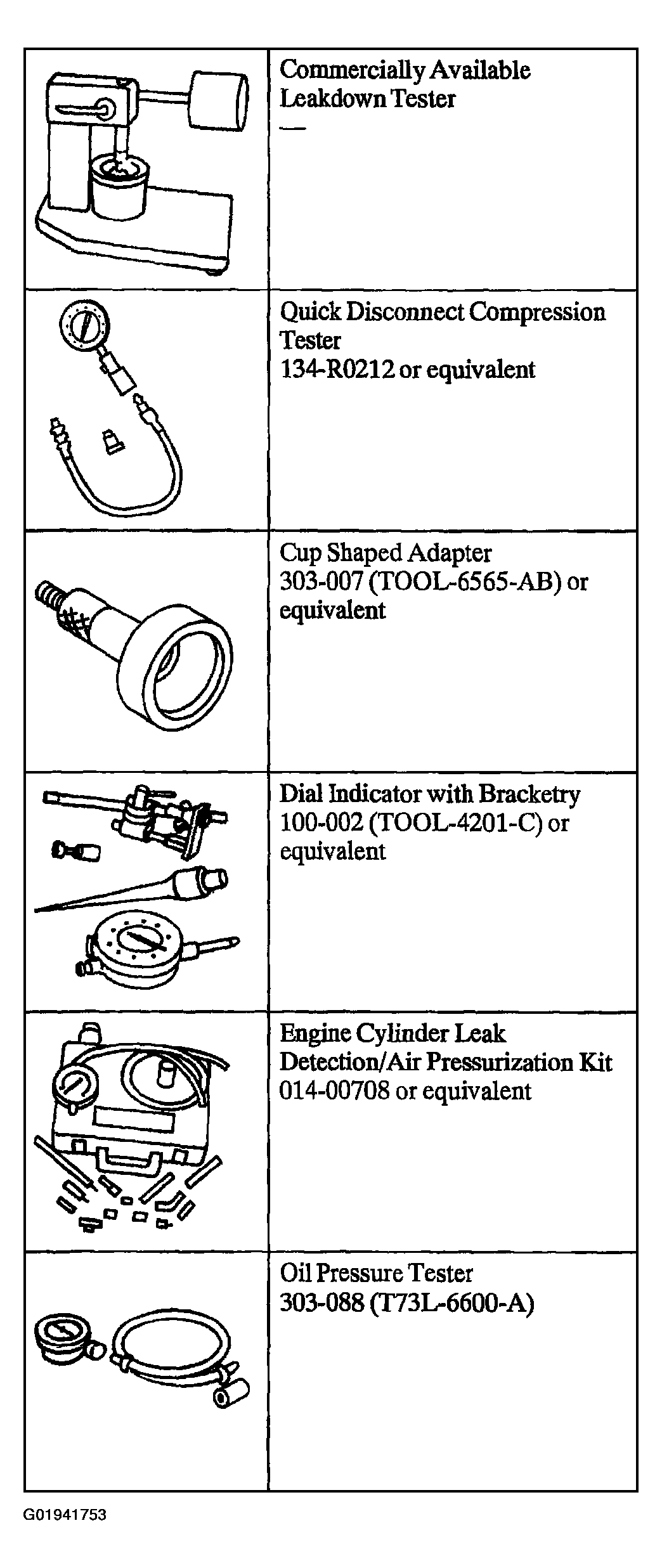

Fig 1: Identifying Engine Special Tool(s) (1 Of 2)
G01941753Courtesy of FORD MOTOR CO.

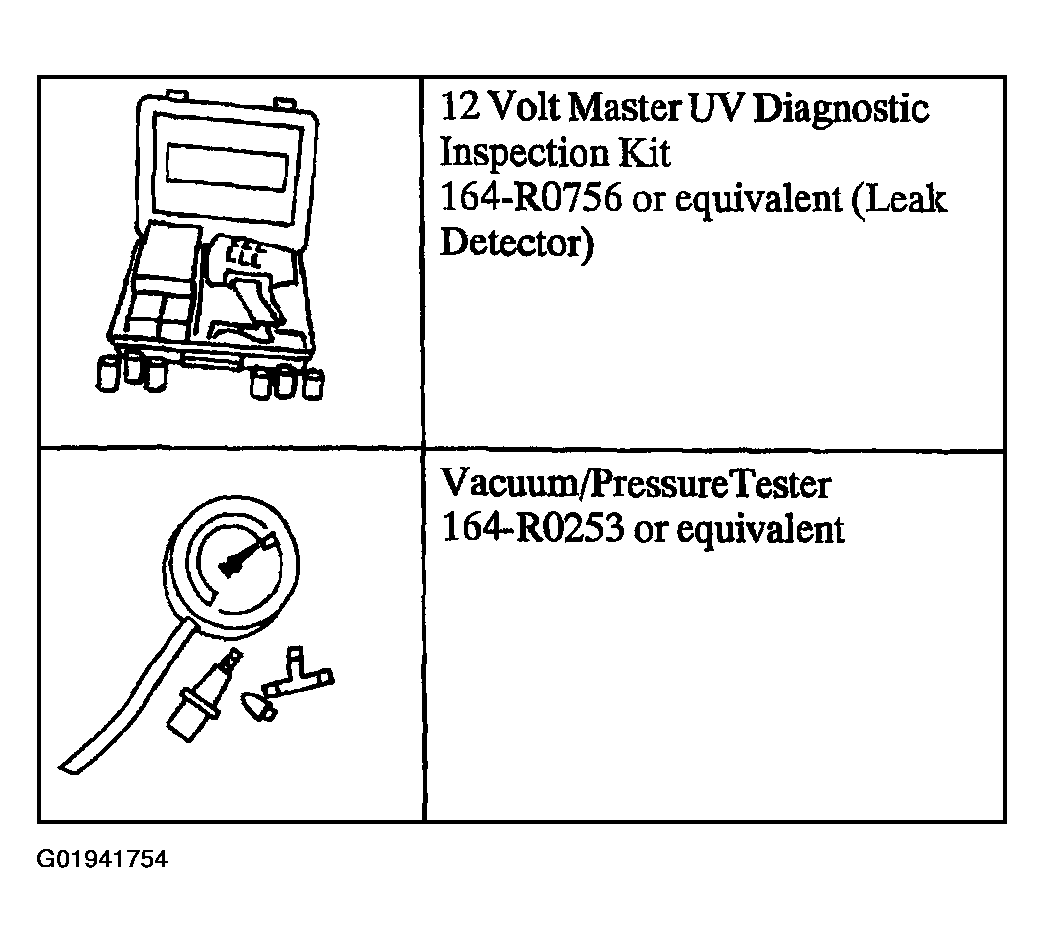

Fig 2: Identifying Engine Special Tool(s) (2 Of 2)
G01941754Courtesy of FORD MOTOR CO.

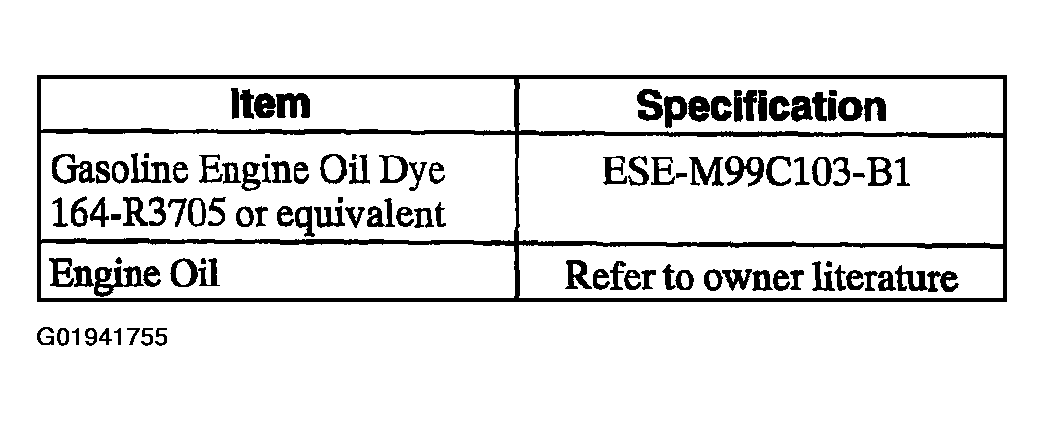

Fig 3: Identifying Materials Needed
G01941755Courtesy of FORD MOTOR CO.
