Symptom Chart

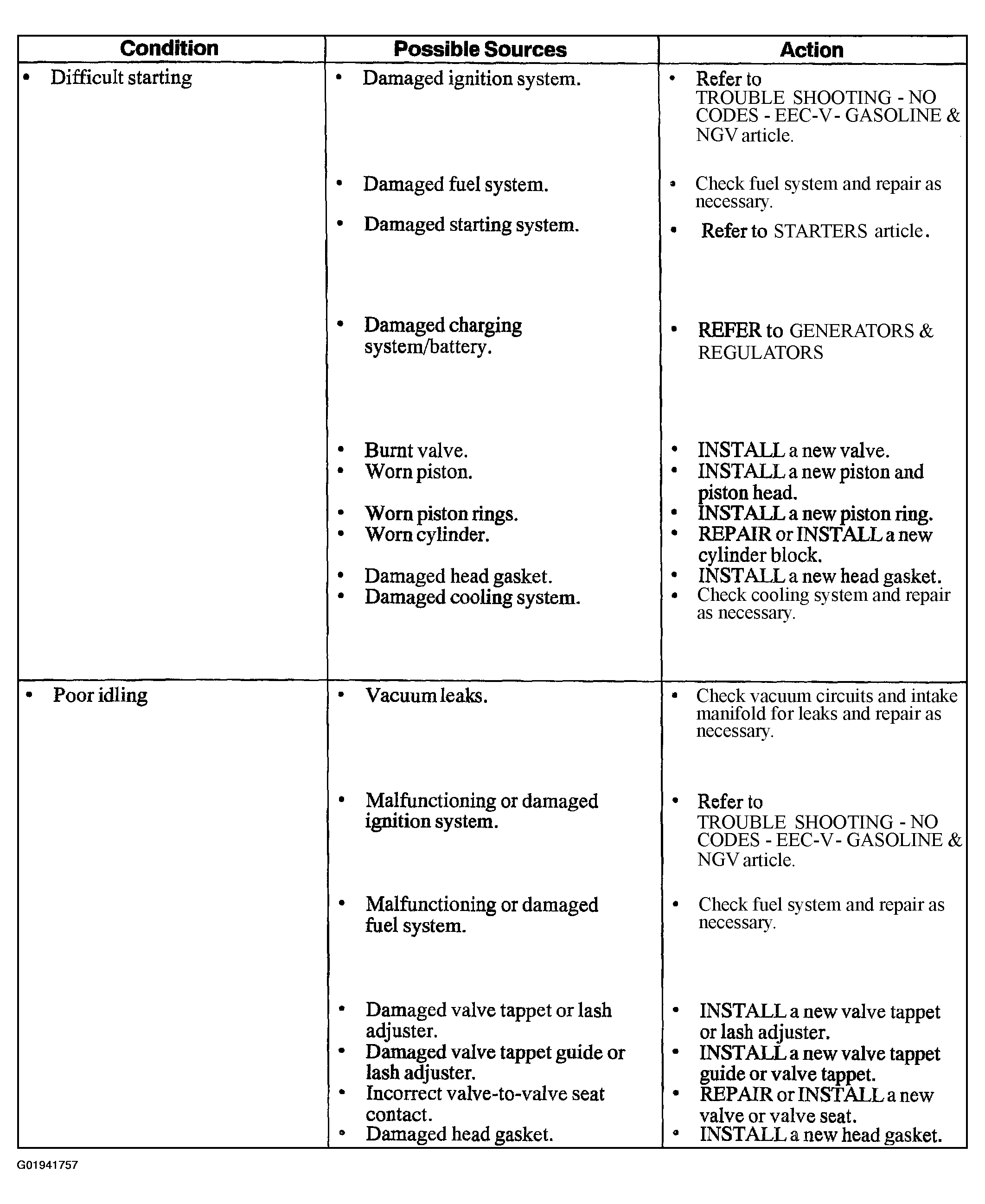

Fig 1: Identifying Symptom Chart (1 Of 4)
G01941757Courtesy of FORD MOTOR CO.

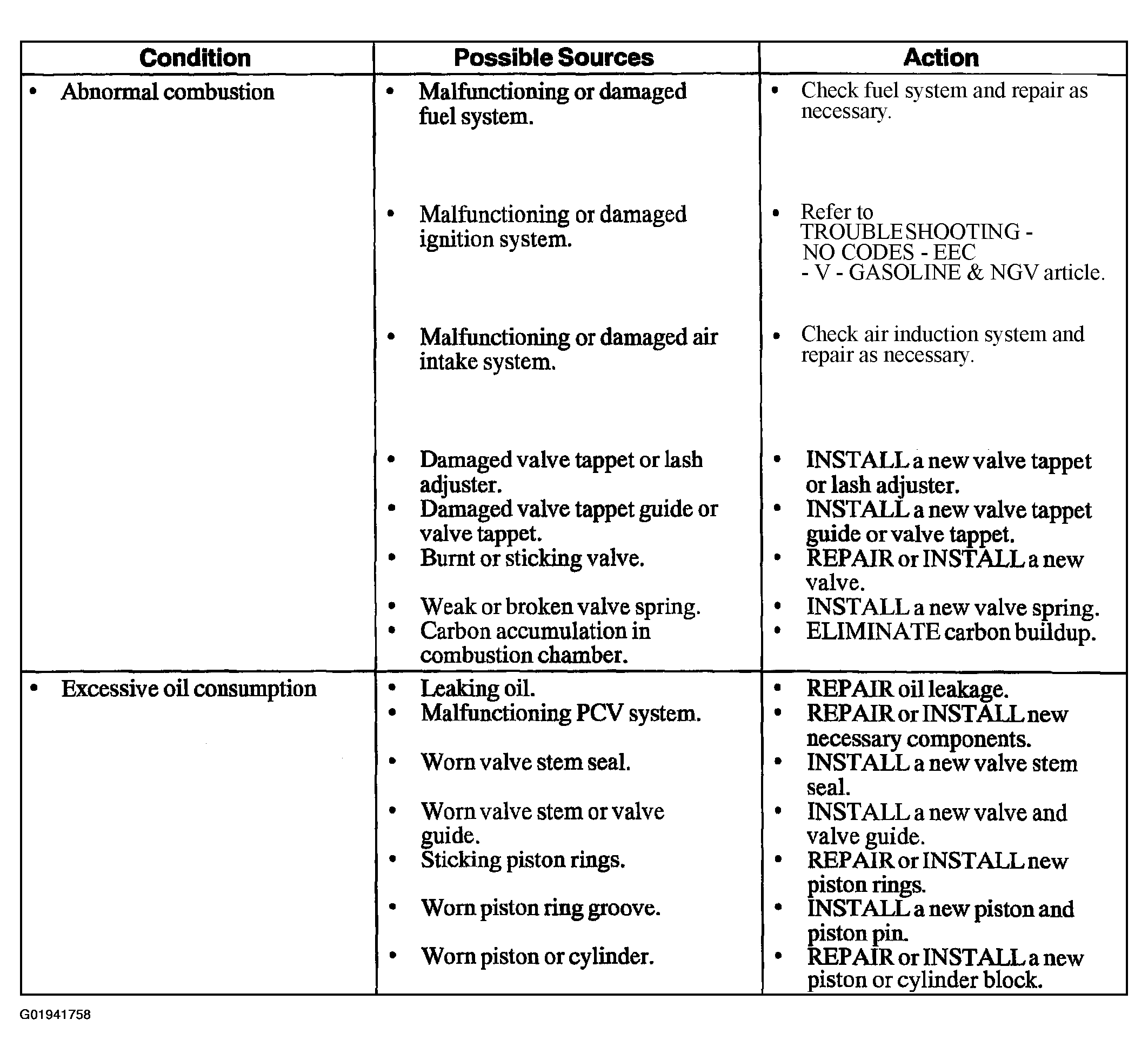

Fig 2: Identifying Symptom Chart (2 Of 4)
G01941758Courtesy of FORD MOTOR CO.
Fig 3: Identifying Symptom Chart (3 Of 4)
G01941759Courtesy of FORD MOTOR CO.

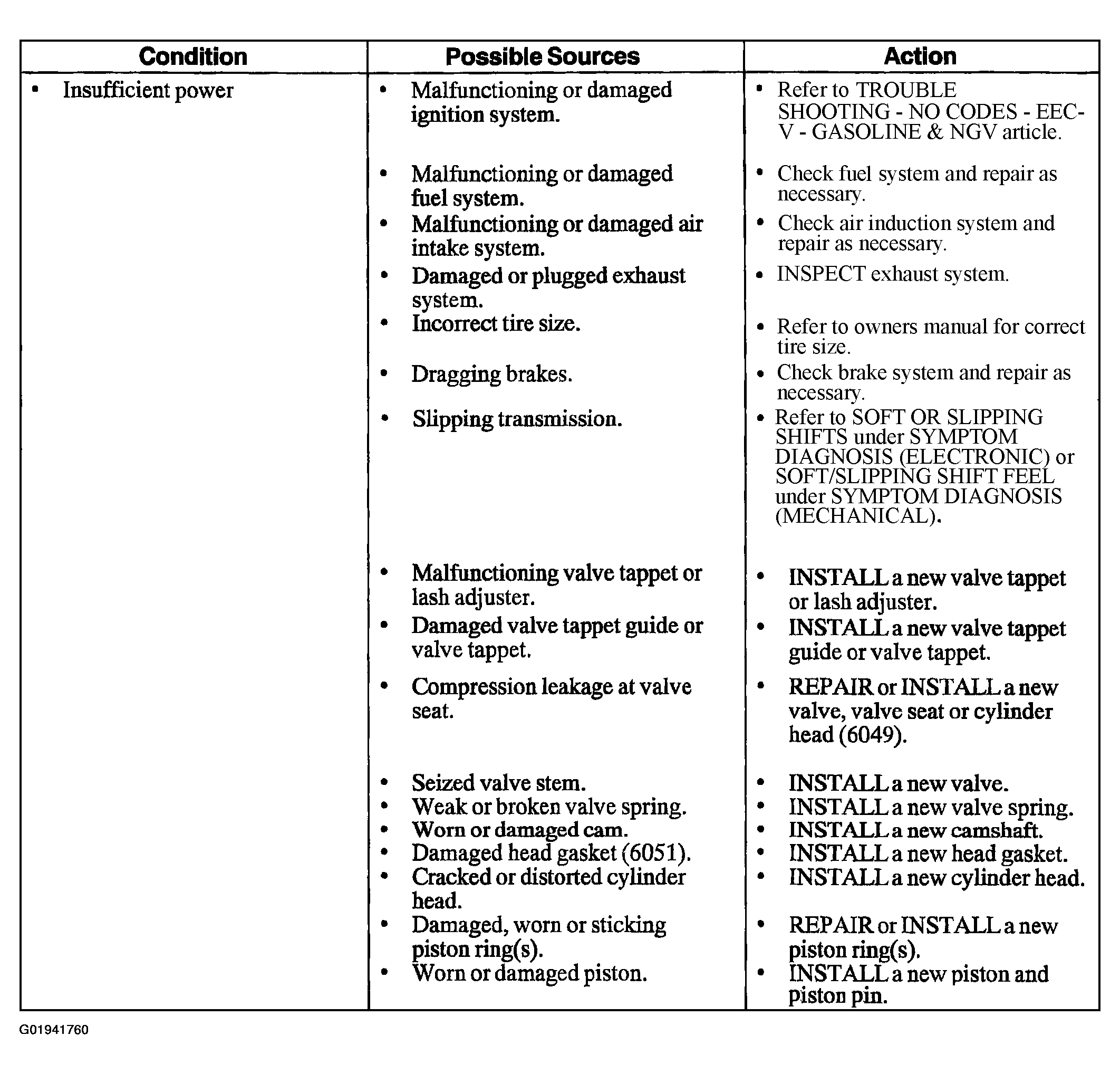

Fig 4: Identifying Symptom Chart (4 Of 4)
G01941760Courtesy of FORD MOTOR CO.
