Crankshaft Main Bearing Journal - Taper

  1. Measure each of the crankshaft main bearing journal diameters in at least two directions at each end of the main bearing journal.
    • If out of specification, install new components as necessary.

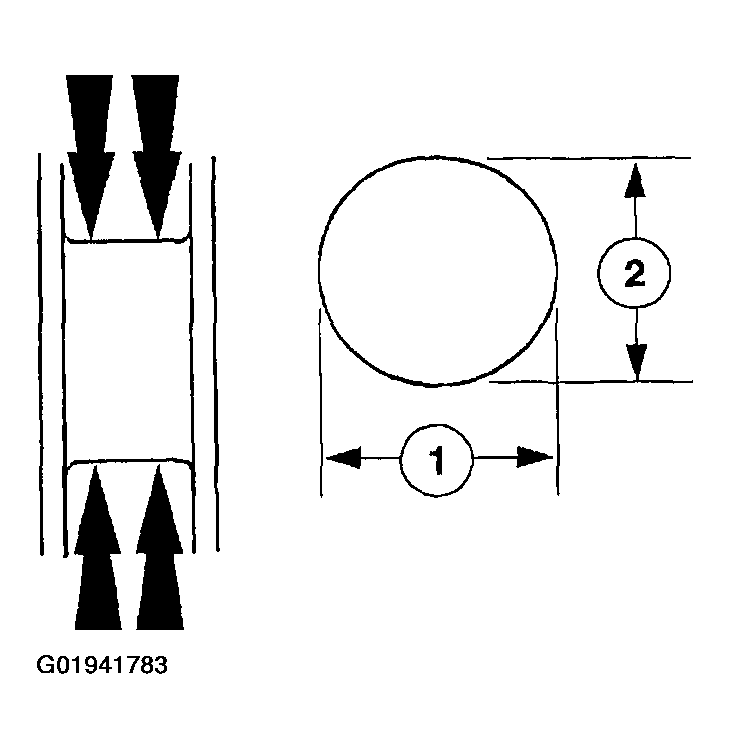

    Fig 1: Measuring Crankshaft Main Bearing Journal Taper
    G01941783Courtesy of FORD MOTOR CO.
