Diagnostic Aids

WARNING: This page is about a different variant/trim than selected.

Perform this test only when instructed during QUICK TEST or if directed by other test procedures. This test is only intended to diagnose the following:

Wiring Harness Circuits (VPWR & HCF)
Hydraulic Cooling Fan Solenoid/Pump Assembly. See Fig 1.
Powertrain Control Module (PCM)

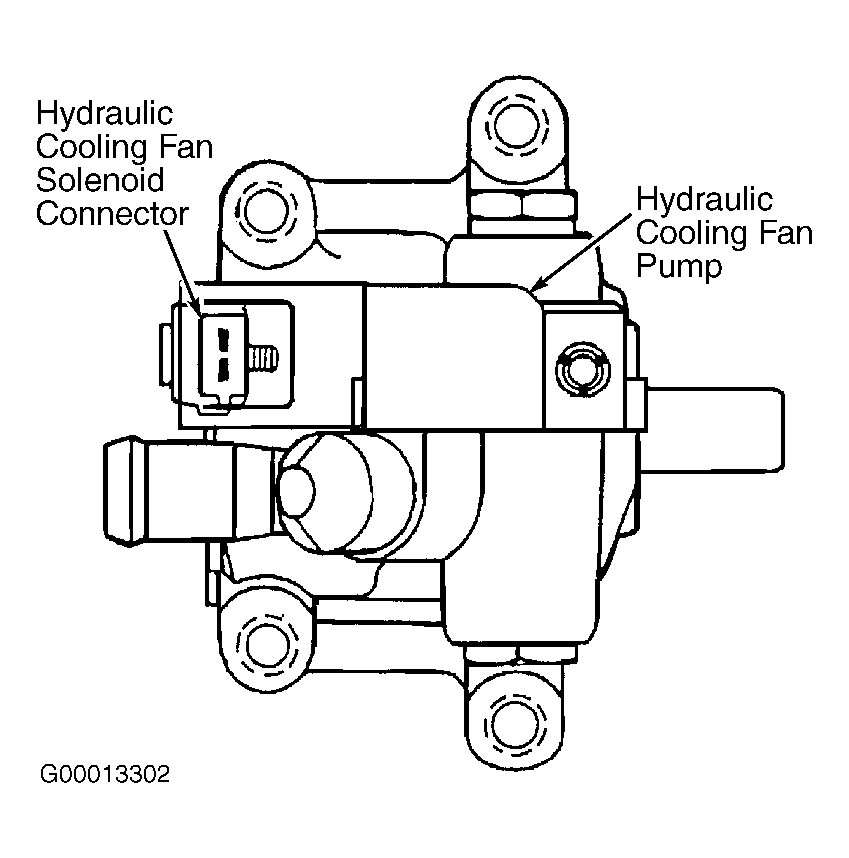

Fig 1: Identifying Hydraulic Cooling Fan Solenoid/Pump

Courtesy of FORD MOTOR CO.

Fig 2: Identifying Hydraulic Cooling Fan Solenoid Circuit & Connector Terminals

Courtesy of FORD MOTOR CO.
