Diagnostic Aids
WARNING: This page is about a different variant/trim than selected.
Perform this test only when instructed during QUICK TEST or if directed by other test procedures. This test is only intended to diagnose the following:
- Supercharger (Boost) By-Pass Solenoid (Service Part Name Is: Thermactor Air Control Solenoid/Vacuum Valve Assembly)

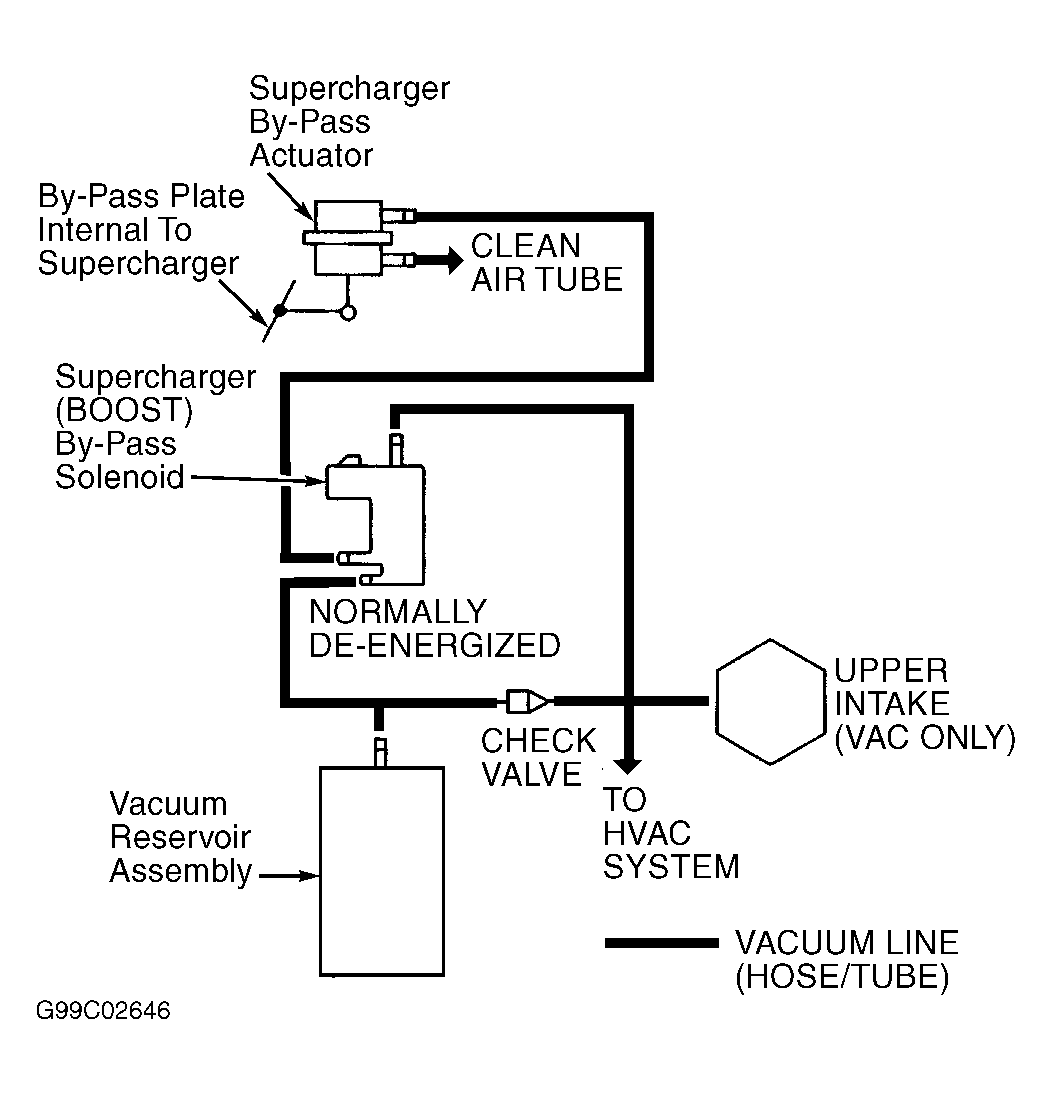

- Vacuum Reservoir Assembly. See Fig 1.
- Vacuum Hoses/Tubes
- Wiring Harness Circuits (SCB, PWR GND & VPWR)
- Powertrain Control Module (PCM)
- Supercharger Assembly (Including Supercharger By-Pass Actuator)
