Diagnostic Aids

WARNING: This page is about a different variant/trim than selected.

Perform this test when instructed during QUICK TEST or if directed by other test procedures. This test is used to diagnose the following:

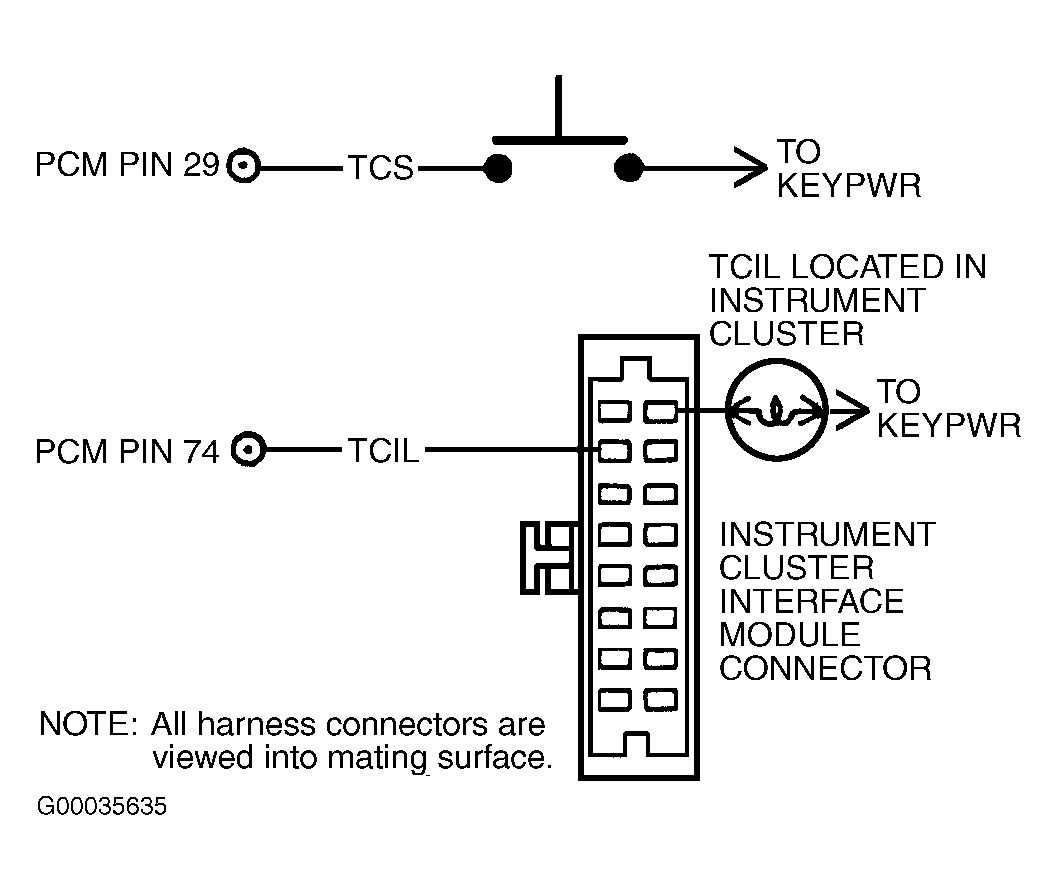

Fig 1: Identifying TCIL & TCS Circuits & Connector Terminals (Cougar 2.0L)

Courtesy of FORD MOTOR CO.

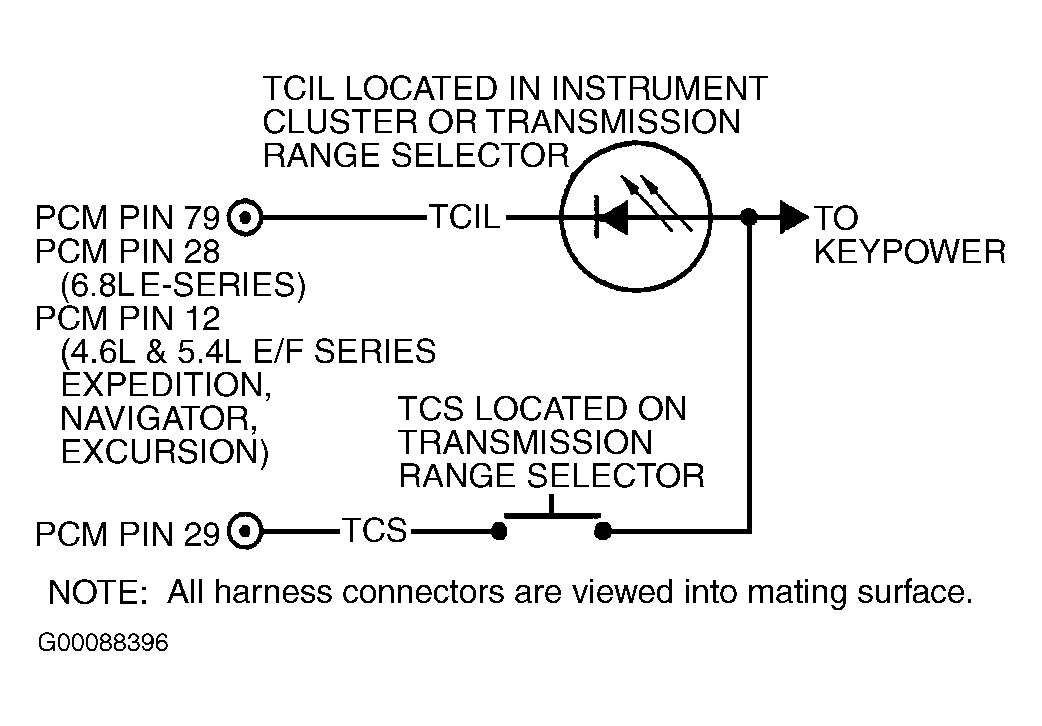

Fig 2: Identifying TCIL & TCS Circuits & Connector Terminals (Econoline, Excursion, Expedition, Navigator & Pickup)

Courtesy of FORD MOTOR CO.

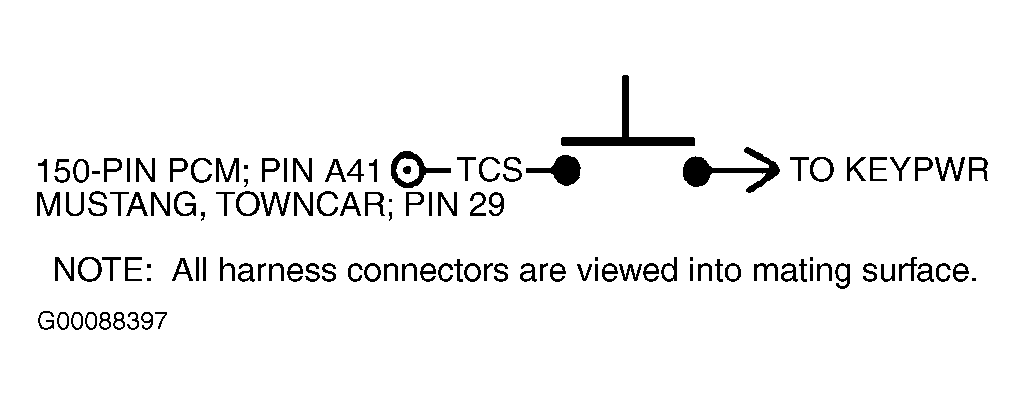

Fig 3: Identifying TCIL & TCS Circuits & Connector Terminals (Explorer, LS, Mountaineer, Mustang, Thunderbird & Town Car)

Courtesy of FORD MOTOR CO.

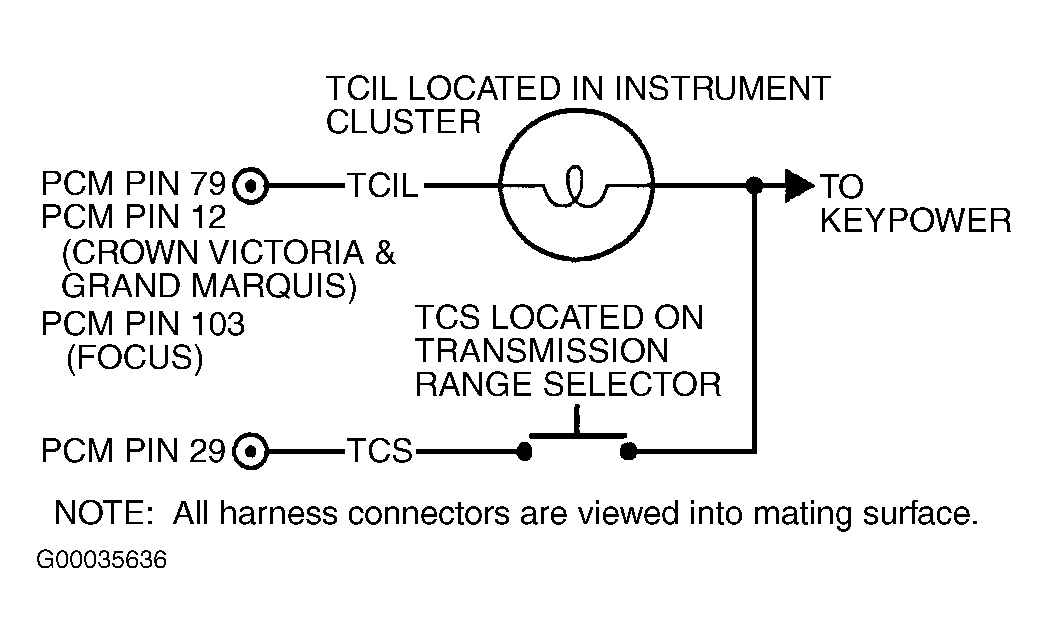

Fig 4: Identifying TCIL & TCS Circuits & Connector Terminals (All Others)

Courtesy of FORD MOTOR CO.
