4x4 Mode Switch
WARNING: This page is about a different variant/trim than selected.

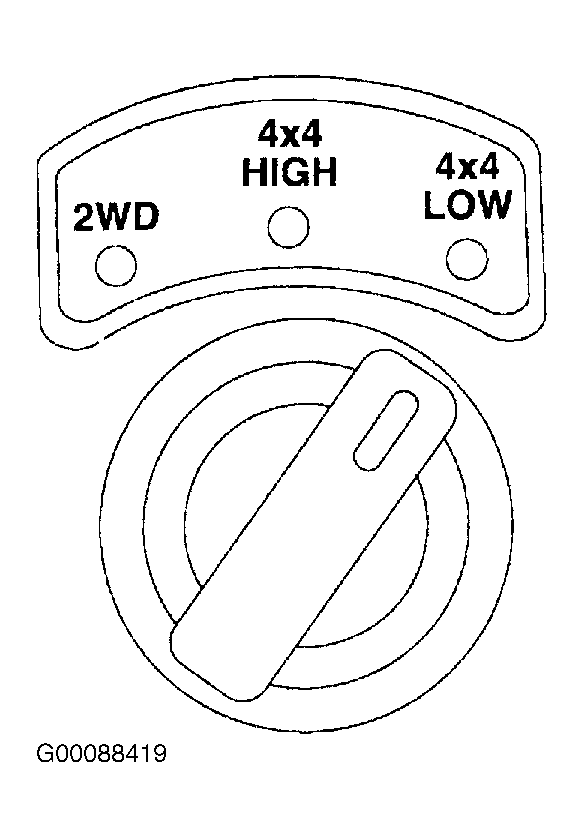

Generic Electronic Module (GEM) provides PCM with an indication of 4x4L. This input is used to adjust transmission shift scheduling. A 5-volt module pull-up indicates 4x4H or 2WD. See Fig 1.
