Door Lock Switch

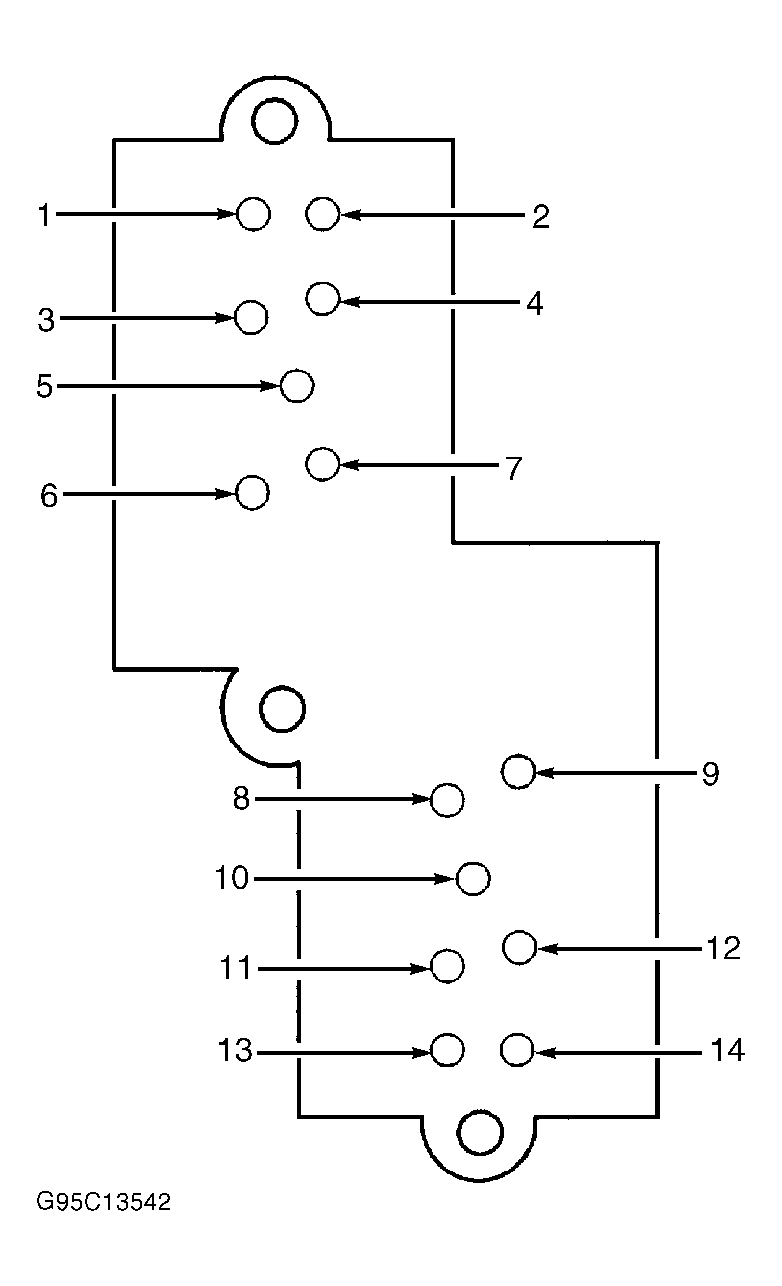

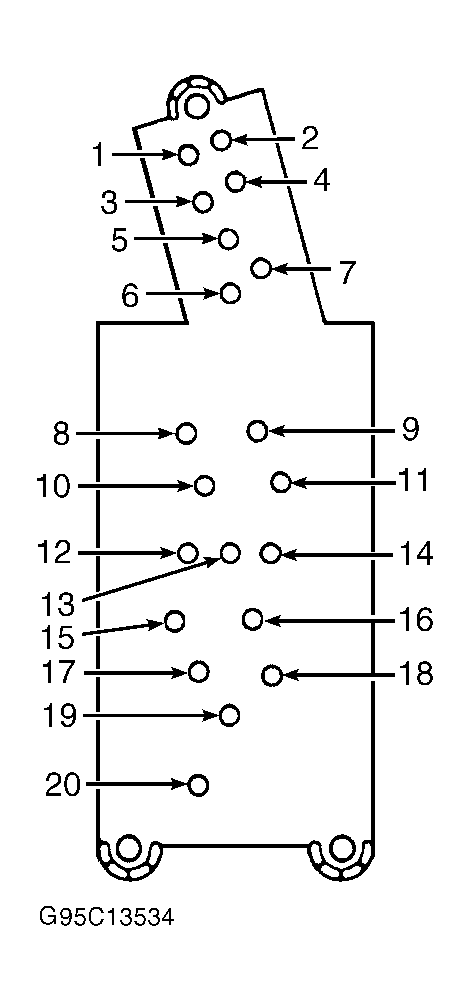

Disconnect negative battery cable. Remove appropriate door lock switch. See DOOR LOCK SWITCH under REMOVAL & INSTALLATION. Using ohmmeter, check continuity between appropriate switch terminals with switch in specified position. See DOOR LOCK SWITCH TEST table. See Fig 1 and Fig 2 . Replace switch if continuity is not as specified.
DOOR LOCK SWITCH TEST
| Switch Position | Continuity Between Terminals No. | |
|---|---|---|
| Driver's | ||
| Lock | 3 & 5; 6 & 7 | |
| Neutral | 3 & 4; 6 & 7 | |
| Unlock | 3 & 4; 5 & 7 | |
| Passenger's | ||
| Lock | 3 & 5; 4 & 7 | |
| Neutral | 3 & 6; 4 & 7 | |
| Unlock | 3 & 6; 5 & 7 | |
