Removal & Installation (Rear Doors)

CAUTION: When prying out power window switch plate, use a shop towel or similar material between tool and front door trim panel or damage to front door trim panel may occur.

NOTE: Use care not to damage trim panel when removing screws.

Remove power window control switch plate. See STEP 1 in Fig 4. Remove screws and power window control switch plate. See STEP 2 in Fig 4. Remove screw covers. See STEP 3 in Fig 4. Remove screws. See STEP 4 in Fig 4. Remove interior door handle cup. See STEP 5 in Fig 4. Remove 2 screws (short wheelbase vehicle) and 3 screws (long wheelbase vehicle). See STEP 6 in Fig 4. Remove door trim panel. See STEP 7 in Fig 4. To install, reverse removal procedure.

Fig 1: Removing & Installing Left Front Door Trim Panel- Phase 1

Courtesy of FORD MOTOR CO.

Fig 2: Removing & Installing Right Front Door Trim Panel - Phase 1

Courtesy of FORD MOTOR CO.

Fig 3: Removing & Installing Left & Right Front Door Trim Panels - Phase 2

Courtesy of FORD MOTOR CO.

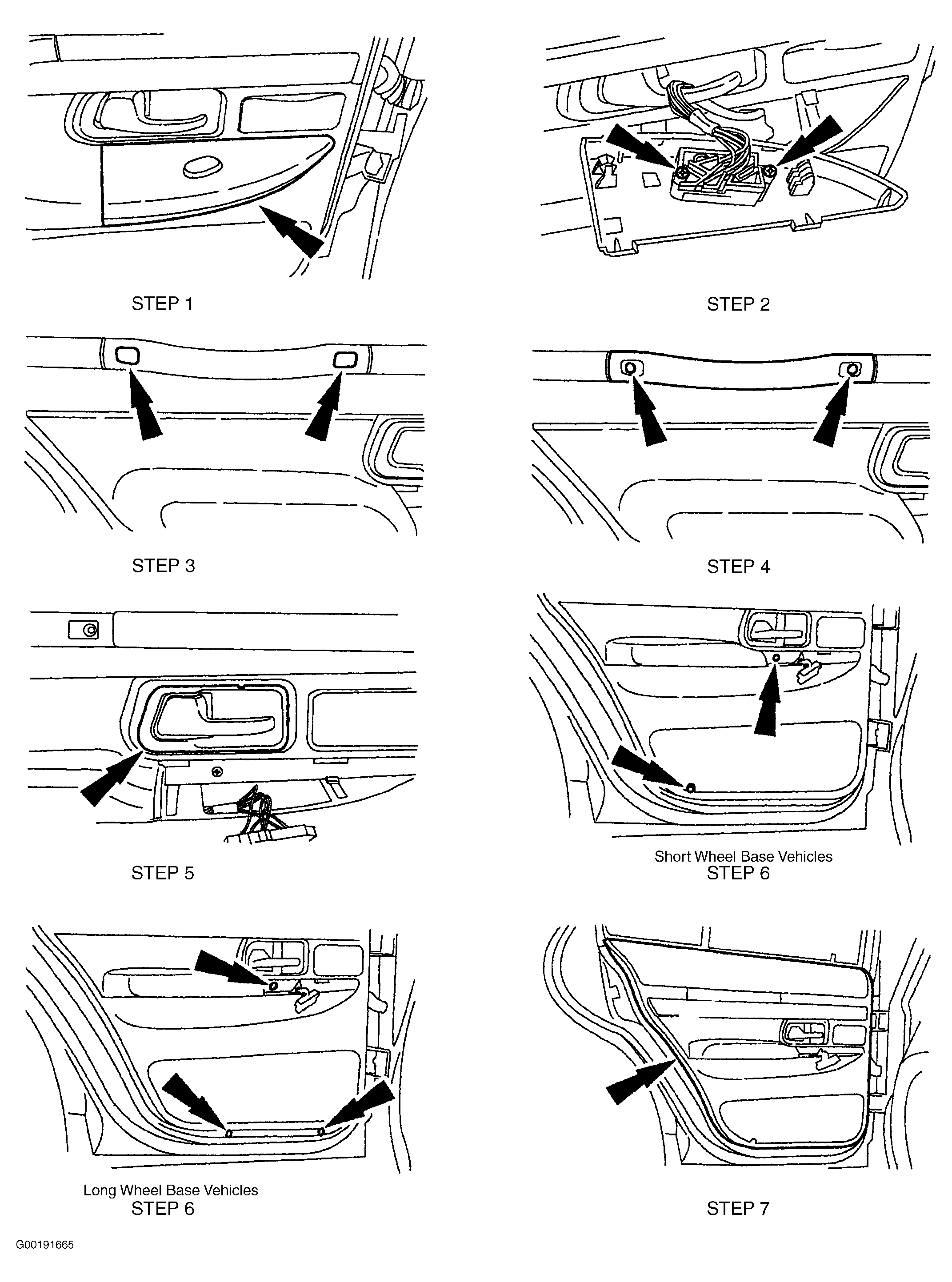

Fig 4: Removing & Installing Rear Door Trim Panel

Courtesy of FORD MOTOR CO.
