4R70W Shift Speeds Axle Ratio 3.08:1
4R70W Shift Speeds Axle Ratio 3.08:1

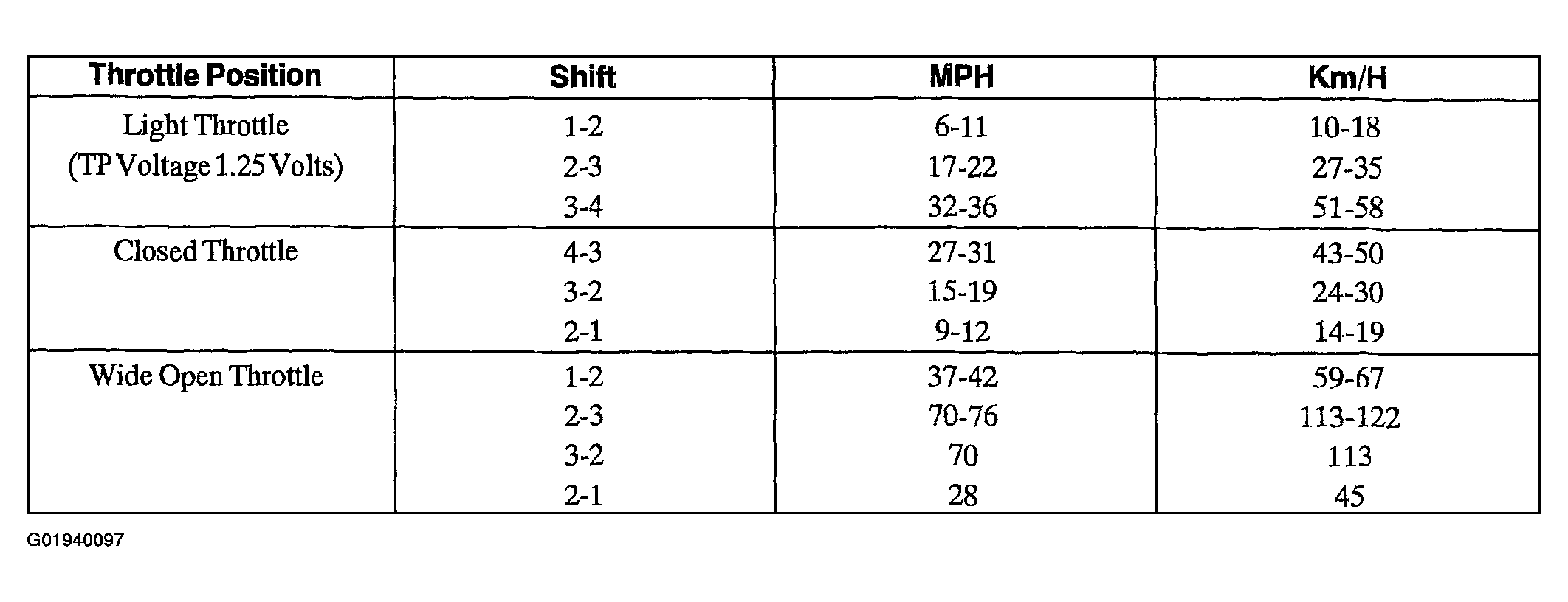

Fig 1: Identifying 4R70W Shift Speeds Axle Ratio 3.08:1
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
