Auxiliary Transmission Fluid Cooler: Removal

Remove the radiator cover.

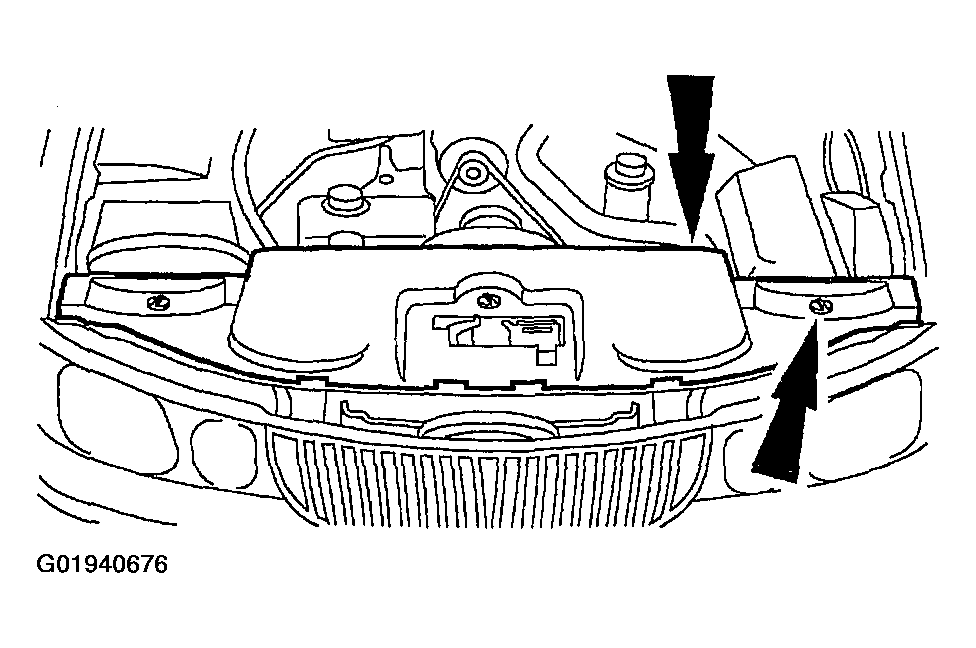

Fig 1: Identifying Radiator Cover
Courtesy of FORD MOTOR CO.
Remove the battery (10653). For additional information, refer to BATTERY, MOUNTING & CABLES .
Remove the air filter assembly.
Disconnect the fluid cooler inlet tube (7A031) and the fluid cooler outlet tube (7A030) from the transmission fluid cooler. Plug the fluid cooler outlet tube and the fluid cooler inlet tube to prevent contaminants from entering the system.

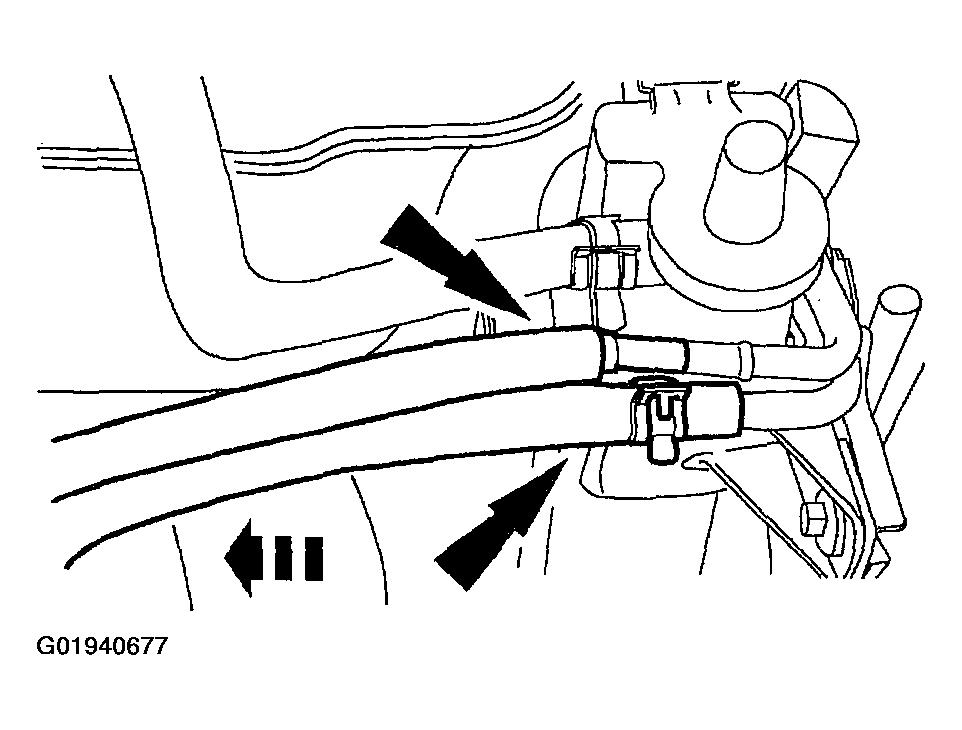

Fig 2: Removing Fluid Cooler Inlet Tube & Fluid Cooler Outlet Tube
Courtesy of FORD MOTOR CO.
Disconnect the power steering lines from the fluid cooler. Plug the power steering lines to prevent contaminants from entering the system.

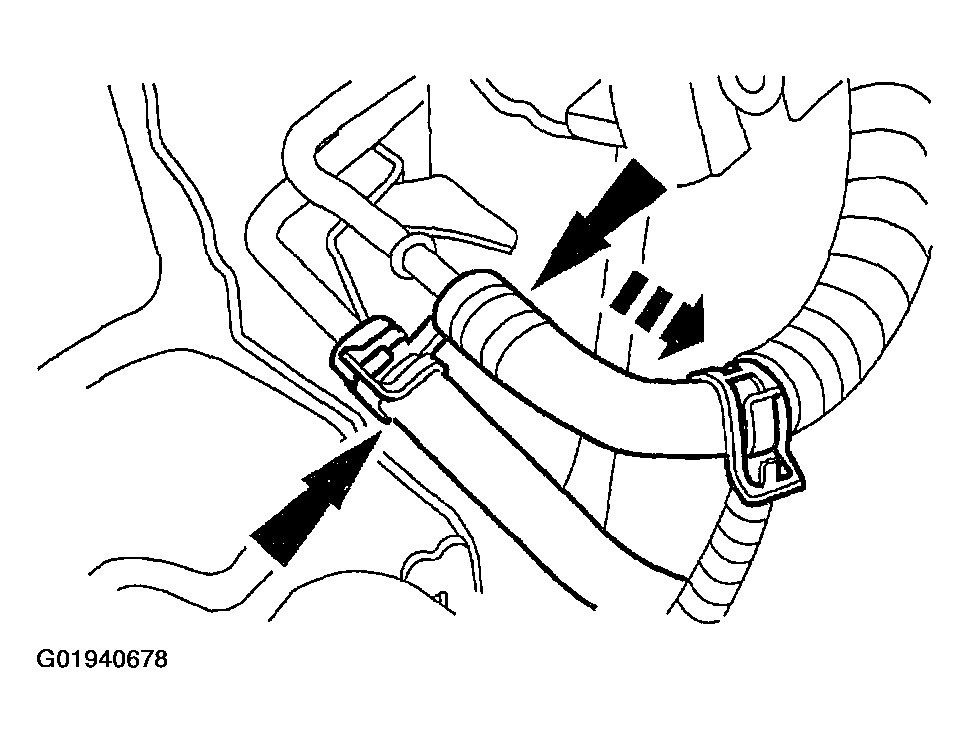

Fig 3: Removing Power Steering Lines
Courtesy of FORD MOTOR CO.
Remove the bolts and the upper radiator mounts.

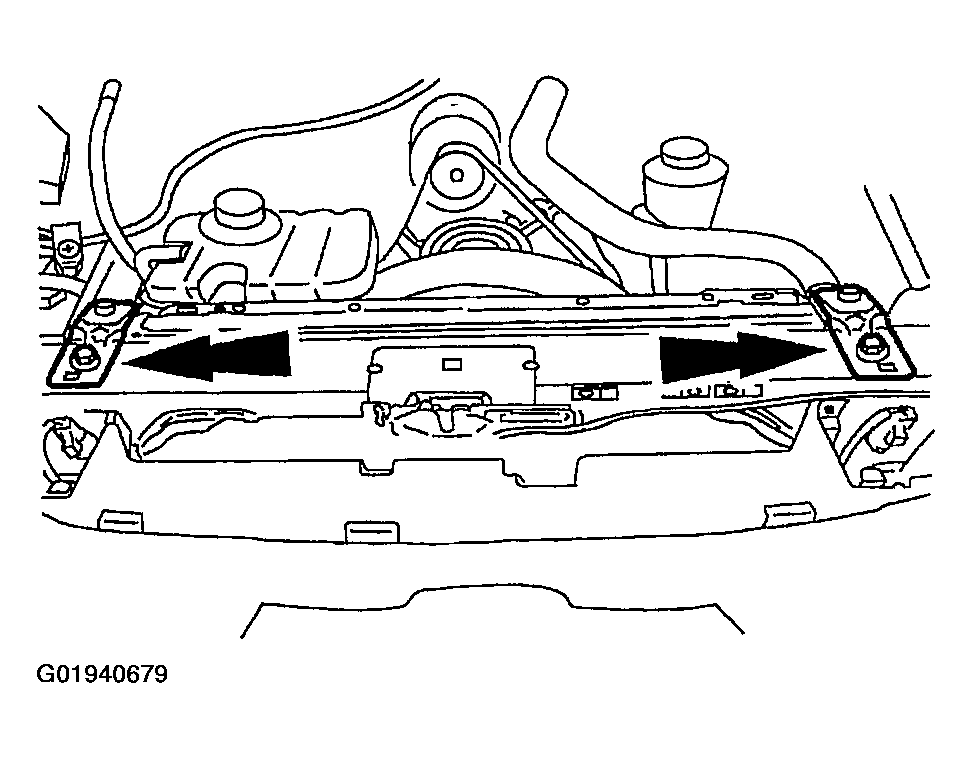

Fig 4: Identifying Upper Radiator Mount Bolts
Courtesy of FORD MOTOR CO.
Remove the bolts and the transmission fluid cooler.

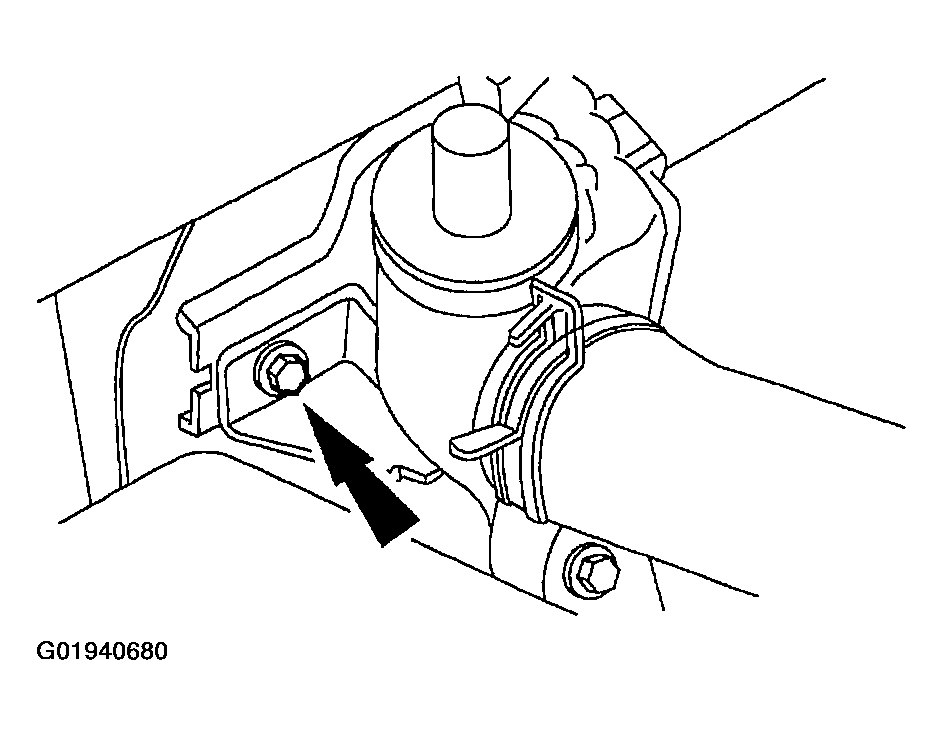

Fig 5: Identifying Transmission Fluid Cooler Bolts
Courtesy of FORD MOTOR CO.

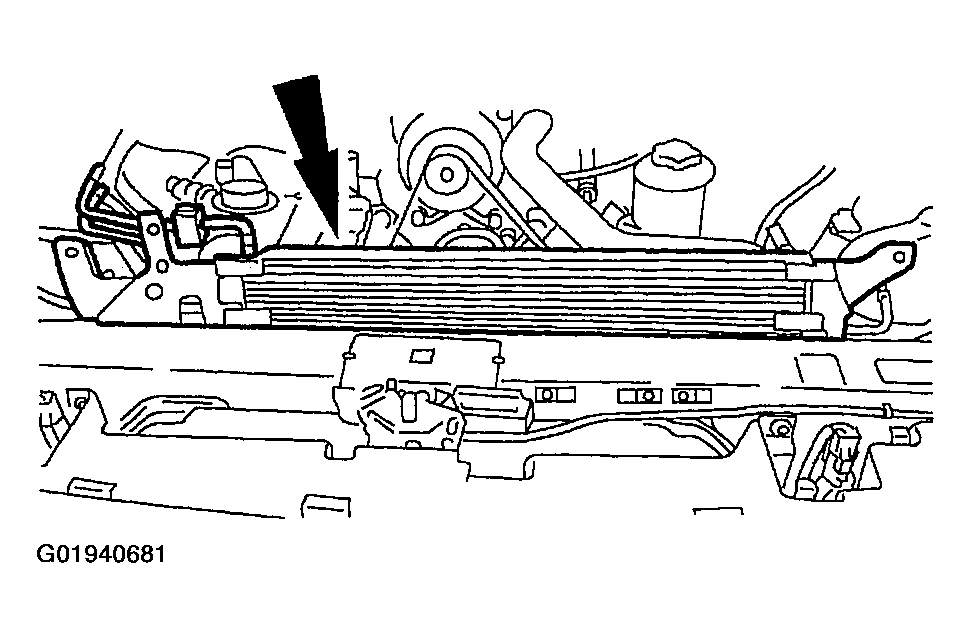

Fig 6: Identifying Transmission Fluid Cooler
Courtesy of FORD MOTOR CO.
