Removal & Installation

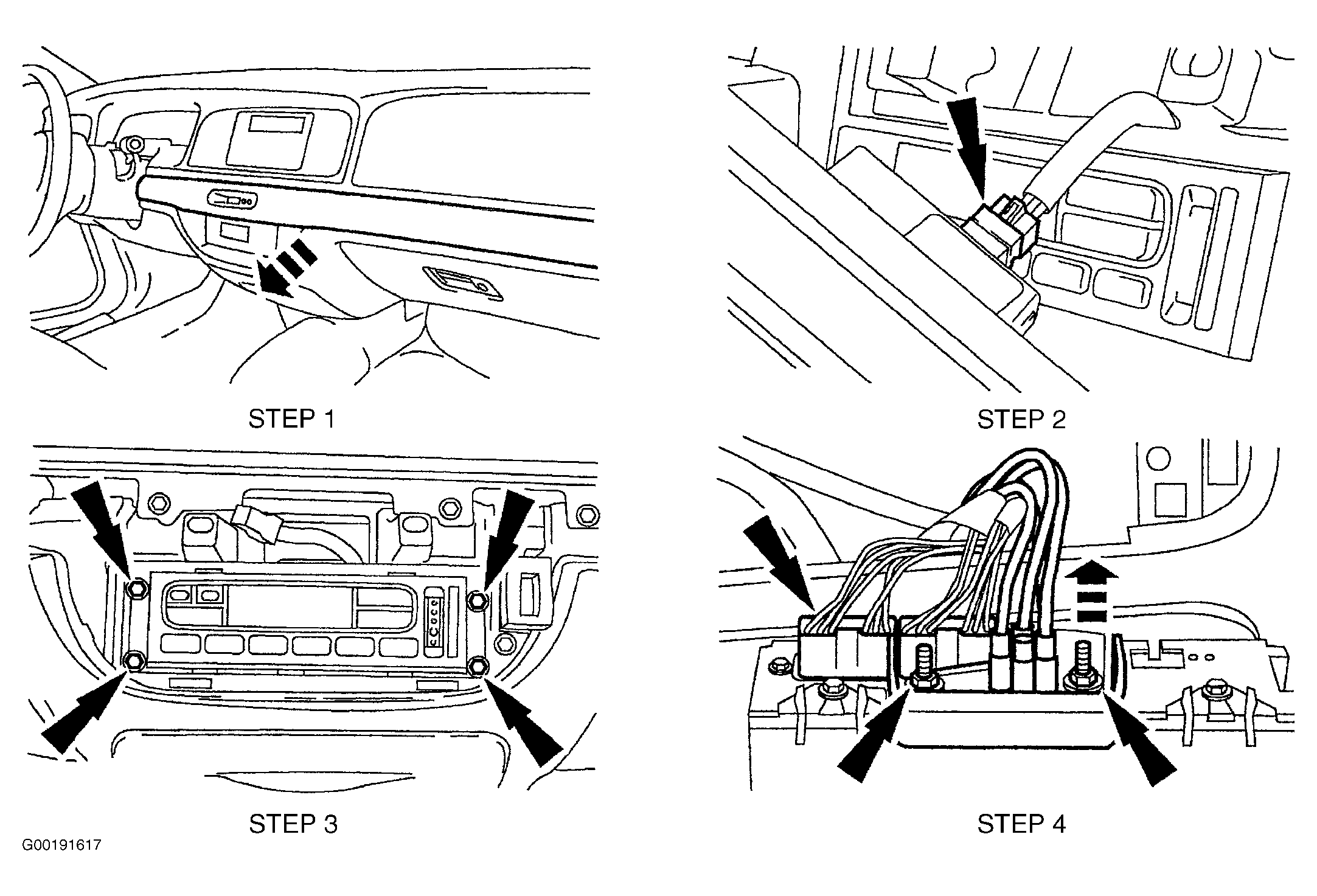

Disconnect negative battery cable. Remove upper instrument panel molding. Molding is retained by snap-in tabs. See STEP 1 in Fig 1. Disconnect clock harness connector. See STEP 2 in Fig 1. Remove Electronic Automatic Temperature Control (EATC) module screws. See STEP 3 in Fig 1. Pull EATC module out far enough to remove nuts, unplug vacuum harness and disconnect EATC harness connectors. See STEP 4 in Fig 1. To install, reverse removal procedure.
